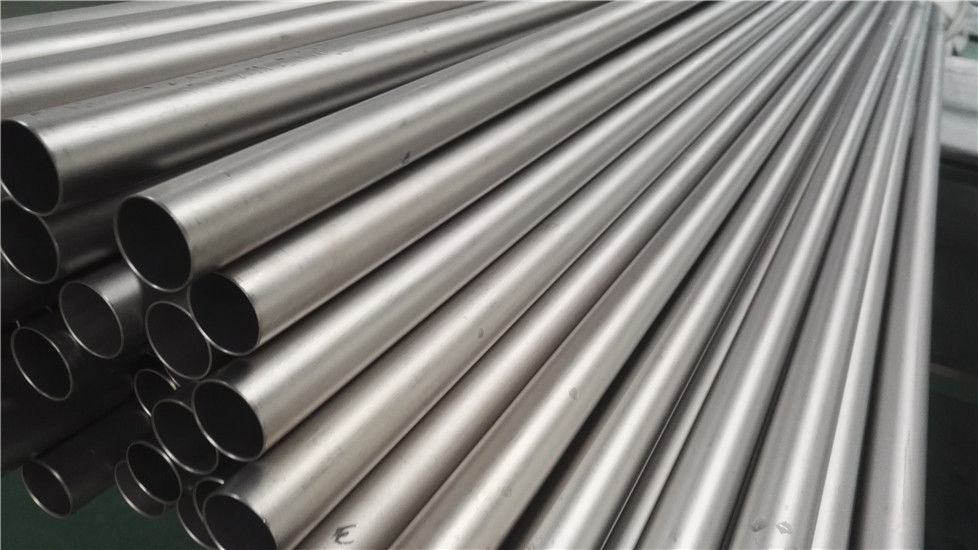

18 Meters Max Length Heat Transfer Tube For Fluid Transmission Pipeline System

18 Meters Max Length Heat Transfer Tube For Fluid Transmission Pipeline System

    • 18 Meters Max Length Heat Transfer Tube For Fluid Transmission Pipeline System
    • 18 Meters Max Length Heat Transfer Tube For Fluid Transmission Pipeline System
  • 18 Meters Max Length Heat Transfer Tube For Fluid Transmission Pipeline System

    Product Details:

    Place of Origin: Jiangsu, China
    Brand Name: Hongbao
    Certification: DNV,PED,ISO,TUV,LR
    Model Number: HB-TI

    Payment & Shipping Terms:

    Minimum Order Quantity: 200kg
    Price: Negotiable
    Packaging Details: seaworthy plywooden case packing.
    Delivery Time: within 50 days
    Payment Terms: D/P, L/C, D/A, L/C, Western Union, MoneyGram
    Supply Ability: 800MT/YEAR
    Contact Now
    Detailed Product Description
    Material:: Gr1,Gr2,Gr3,Gr7 Brand:: Hongbao
    Certificate:: DNV,PED,ISO,TUV,LR Origin:: Jiangsu,China
    Thickness:: 0.5-12mm OD:: 6-219mm
    Length:: 18000mm Max. Shape:: Round

    ASTM B338 Titanium Tube For Heat Exchanger Tube Seamless Titanium Heat Exchanger Round Pipe



    Grades

    China America Russia Japan
    TA1



    Industrially Pure Titanium

    GR1 BT1-00 TP270
    TA2 GR2 BT1-0 TP340
    TA3 GR3   TP450
    TA4 GR4   TP550
    TC4 Ti-6Al-4V GR5 BT6 TAP6400
    TA9 Ti-0.2Pd GR7   TP340Pb
    TA18 Ti-3Al-2.5V GR9 0T4-1B TAP3250
    TA9-1   GR11
    TA10 Ti-0.3Mo-0.8Ni GR12
    TB5 Ti-15V-3Al-3Gr-3Sn Ti-15333
    TC4ELI Ti-6Al-4VELI GR5ELI



    Mechanical Properties



    Grade



    Status

    Tensile Strength Yield Strength Elongation Area of Reducation
    Ksi Mpa Ksi Mpa %
    GR1

















    Annealed

    35 240 25 170 24 30
    GR2 50 345 40 275 20 30
    GR3 65 450 55 380 18 30
    GR4 80 550 70 483 15 25
    GR5 130 895 120 828 10 25
    GR7 50 345 40 275 20 30
    GR9   90 620 70 483 15 25
    GR11 35 240 25 170 24 30
    GR12 70 483 50 345 18 25
    GR23(TI-6AL-4VELI) 125 860 115 795 10 25



    Feature

    Titanium in grades 1 and 2 is used because of its resistance to corrosion in the chemical industry and marine technology. In addition, titanium grade 1/2 is also used in plant engineering, medical technology and in the watch and jewelery industries. Titanium Grade 7 is preferably used in chemical plants. Gr7: Due to the high palladium content, Titanium Grade 7 is very resistant to corrosion. Thus, for example, titanium grade 7 is resistant to salt water and is suitable for handling chlorides media. In addition, Titanium Grade 7 is resistant to erosion or impacts. Grade 12 Ti-0.3-Mo-0.8Ni Titanium Grade 12 alloy is similar to Titanium Grades 2 and 3 except that Titanium Grade 12 has 0.3% molybdenum and 0.8% nickel. This offers enhanced corrosion resistance. Gr16 Medium-strength titanium plus 0.04-0.08% Pd for enhanced corrosion properties Titanium tube grades (other grades are available on request).



    18 Meters Max Length Heat Transfer Tube For Fluid Transmission Pipeline System
