Stress Relieved Carbon Steel Seamless Tube Long Fatigue Life For Stator Pump

Stress Relieved Carbon Steel Seamless Tube Long Fatigue Life For Stator Pump

    • Stress Relieved Carbon Steel Seamless Tube Long Fatigue Life For Stator Pump
    • Stress Relieved Carbon Steel Seamless Tube Long Fatigue Life For Stator Pump
  • Stress Relieved Carbon Steel Seamless Tube Long Fatigue Life For Stator Pump

    Product Details:

    Place of Origin: China
    Brand Name: Hongbao
    Certification: ISO9001, OHSAS18001,TS16949 etc

    Payment & Shipping Terms:

    Minimum Order Quantity: 3 tons
    Price: Negotiable
    Packaging Details: Standary Export Packaging
    Delivery Time: 25 days
    Supply Ability: 20000 ton/year
    Contact Now
    Detailed Product Description
    Material: GCr15 100Cr6、SKF3、SKF3S Shape: Round
    Port: Shanghai Port Or As Requiremets Standard: GB/T18254、YB/T4146
    Sample: Free Sample Trade Term: FOB, CIF, EXW

    Bearing Steel Tube Material GCr15 100Cr6,SKF3,SKF3S Seamless Steel Tube ​



    Material: GCr15 100Cr6,SKF3,SKF3S

    Diameter range:10-160mm

    Thickness Range:1-25mm



    1. Introduction

    Bearing steel pipe is the seamless steel tube for hot rolling or cold rolling (cold drawing) for the manufacture of ordinary rolling bearing ring. The outer diameter of the steel tube is 25-180 mm, and the wall thickness is 3.5-20mm, which is divided into ordinary precision and high precision. Bearing steel is used for making ball bearings, roller bearings and bearing rings. Bearing is under great pressure and friction, so the bearing steel is required to have high and uniform hardness and wear resistance, and high elastic limit. On the uniformity of the chemical composition of bearing steel, the content and distribution of non-metallic inclusions are very demanding, the distribution of the carbide, etc, are all steel production in one of the most demanding steel grade.



    2. Delivery Condition

    1) +C No heat treatment after the final cold drawig process
    2) +LC After the final heat treatment there is a suitable drawing pass
    3) +SR After the final cold drawing process there is a stress relieve heat treatment in a controlled atmosphere
    4) +A After the final cold drawing process the tubes are annealed in a controlled atmosphere
    5) +N After the final cold drawing operation the tubes are normalized in a controlled atmosphere





    3. Application

    In addition to ball bearings, bearing rings, sometimes used to make tools, such as punch, measuring tools.



    4. Main Equipments List and Capacity Analysis

    Status Main Equipment List Quantity (Line) Capa per Shift Shift per Day Working days per month Actual Capacity
    Current Piercing Mill ∮50-∮120 5 25T/S 2 Shifts 22 Days 66000T/Y
    Rolling Mill ∮40-∮180 50 1.25T/S 2 Shifts 22 Days 33000T/Y
    60T 3 Lines of High Precision Drawing Machine 1 15T/S 2 Shifts 22 Days 7920T/Y
    Drawing Machine 10T-150T 10 3.5T/S 2 Shifts 22 Days 18480T/Y
    Straightening Machine ∮30-∮130 7 16.5T/S 2 Shifts 22 Days 60984T/Y
    Heating Furnace 4 26T/S 2 Shifts 22 Days 54900T/Y
    Eddy Current Detector 3 33T/S 2 Shifts 22 Days 52272T/Y
    Ultrasonic Detector 1 10T/S 2 Shifts 22 Days 5280T/Y
    Ultrasonic & Eddy Current Detector 1 25T/S 2 Shifts 22 Days 13200T/Y
    Automatic Pickling Equipment 1 115T/S 2 Shifts 22 Days 60720T/Y
    60 Welding Line 1 25T/S 2 Shifts 22 Days 13200T/Y
    Head Shrinked Machine 1 25T/S 2 Shifts 22 Days 13200T/Y
    85m Roller Hearth Bright Normalizing(Annealing) Furance 1 48T/D 2 Shifts 22 Days 12672T/Y

    Subtotal



            59400T/Y

    Project in progress



    SG/76 Strengthen Precision High Frequency Welding Line 1 65T/D 2 Shifts 22 Days 17160T/Y
    14 Roller Precision Straightening Machine 2 25T/S 2 Shifts 22 Days 13200T/Y
    60T 3 Lines of High Precision Drawing Machine 1 30T/D 2 Shifts 22 Days 7920T/Y

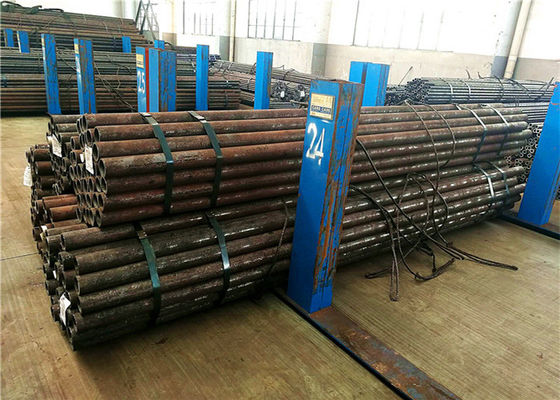

    5. Picture

    Stress Relieved Carbon Steel Seamless Tube Long Fatigue Life For Stator Pump
