YB/T4146 GCr15 Cold Drawing Seamless Bearing Steel Tube

Place of Origin: China
Brand Name: Hongbao
Certification: ISO9001, OHSAS18001,TS16949 etc
Model Number: HBC
Minimum Order Quantity: 3 tons
Price: Negotiable
Packaging Details: Standary Export Packaging
Delivery Time: 25 days
Supply Ability: 20000 ton/year
Product Details
Material: GCr15 100Cr6、SKF3、SKF3S Keywords: Bearing Steel Tube
Port: Shanghai Port Or As Requiremets Standard: GB/T18254、YB/T4146
OD: 10-160mm WT: 1-25mm
High Light:

hardened steel tube

,

carbon steel seamless tube

Leave a Message
Product Description

YB/T4146 GCr15 Cold Drawing Seamless Bearing Steel Tube



Main Date

Material GCr15
Other Material Aviable 100Cr6, SKF3, SKF3S



Standard:

GB/T18254, YB/T4146



Delivery Condition:

+A





Size Range:



Outer Diameter:10-160mm



Wall Thickness: 1-25



Process:

Piercing,Cold Drawing, Spheroidizing Annealing, Annealing etc.





Introduction

Bearing steel pipe is the seamless steel tube for hot rolling or cold rolling (cold drawing) for the manufacture of ordinary rolling bearing ring. The outer diameter of the steel tube is 25-180 mm, and the wall thickness is 3.5-20mm, which is divided into ordinary precision and high precision. Bearing steel is used for making ball bearings, roller bearings and bearing rings. Bearing is under great pressure and friction, so the bearing steel is required to have high and uniform hardness and wear resistance, and high elastic limit. On the uniformity of the chemical composition of bearing steel, the content and distribution of non-metallic inclusions are very demanding, the distribution of the carbide, etc, are all steel production in one of the most demanding steel grade.



Chemical Component

C % Mn % Si % P % C % Cr %
0.95-1.05 :0.20-0.40 0.15-0.35 0.020 0.027 1.30-1.65

Applications

Steel ball, roller and collar of large machinery bearing

High-hardness and high contact fatigue strength machinery parts with heavy load, such as axis of rotation, blade, stator pump, profiling, sleeve, mandril, etc.



Characteristics for bearing seamless tube:

1) Good hardability and high toughness

2) Long fatigue life

3) Medium cold processing plasticity

4) Certain machinability

5) Poor weldability



Manufacture Process

YB/T4146 GCr15 Cold Drawing Seamless Bearing Steel Tube 0



Delivery Condition

1) +C No heat treatment after the final cold drawig process
2) +LC After the final heat treatment there is a suitable drawing pass
3) +SR After the final cold drawing process there is a stress relieve heat treatment in a controlled atmosphere
4) +A After the final cold drawing process the tubes are annealed in a controlled atmosphere
5) +N After the final cold drawing operation the tubes are normalized in a controlled atmosphere


Trade Information

Trade Term FOB, EXW, CIF
MOQ 10000KG
Payment 30% TT in advance, balance before shippment or B/L at sight.
Sample       Free sample but postage is required.
Delivery Time 15-60 days

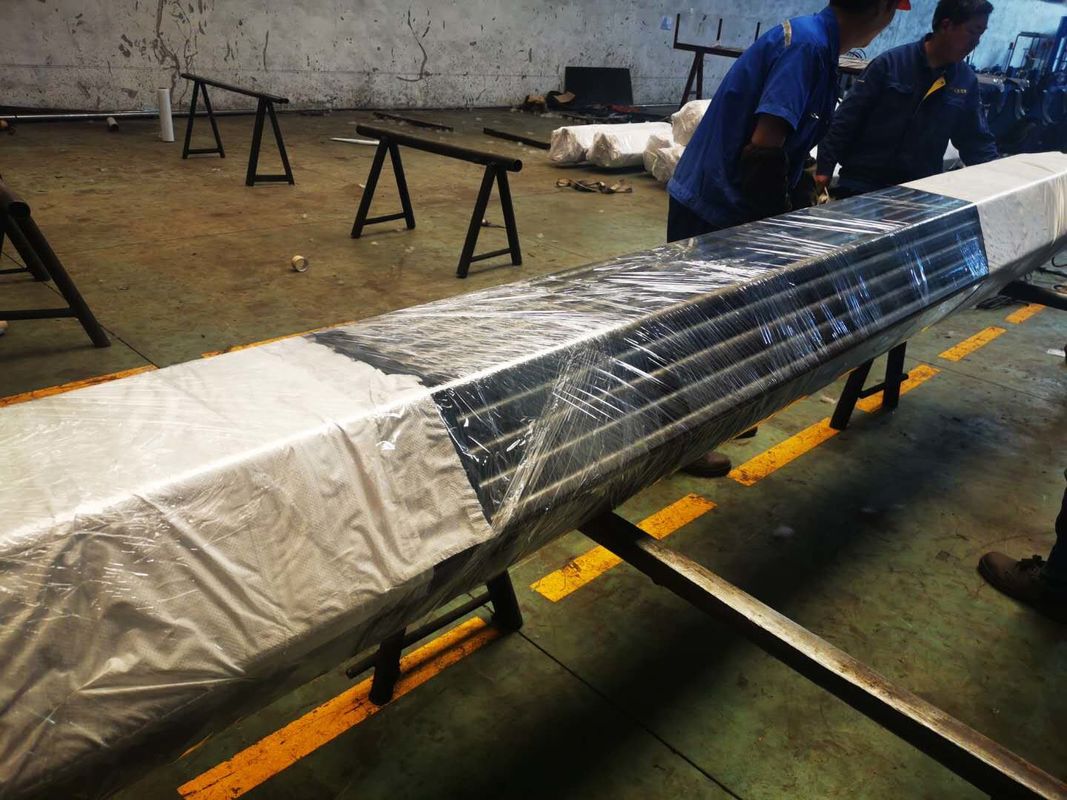

Package Standary export package or as requirement
Other service As customer requirement





Main Equipment List and Capacity Analysis

Status Main Equipment List Quantity (Line) Capa per Shift Shift per Day Working days per month Actual Capacity
Current Piercing Mill ∮50-∮120

5 25T/S 2 Shifts 22 Days 66000T/Y
Rolling Mill ∮40-∮180

50 1.25T/S 2 Shifts 22 Days 33000T/Y
60T 3 Lines of High Precision Drawing Machine

1 15T/S 2 Shifts 22 Days 7920T/Y
Drawing Machine 10T-150T

10 3.5T/S 2 Shifts 22 Days 18480T/Y
Straightening Machine ∮30-∮130

7 16.5T/S 2 Shifts 22 Days 60984T/Y
Heating Furnace

4 26T/S 2 Shifts 22 Days 54900T/Y
Eddy Current Detector

3 33T/S 2 Shifts 22 Days 52272T/Y
Ultrasonic Detector

1 10T/S 2 Shifts 22 Days 5280T/Y
Ultrasonic & Eddy Current Detector

1 25T/S 2 Shifts 22 Days 13200T/Y
Automatic Pickling Equipment 1 115T/S 2 Shifts 22 Days 60720T/Y
60 Welding Line 1 25T/S 2 Shifts 22 Days 13200T/Y
Head Shrinked Machine 1 25T/S 2 Shifts 22 Days 13200T/Y
85m Roller Hearth Bright Normalizing(Annealing) Furance 1 48T/D 2 Shifts 22 Days 12672T/Y
Subtotal

        59400T/Y
Project under construction SG/76 Strengthen Precision High Frequency Welding Line
SG/76
1 65T/D 2 Shifts 22 Days 17160T/Y
14 Roller Precision Straightening Machine

2 25T/S 2 Shifts 22 Days 13200T/Y
60T 3 Lines of High Precision Drawing Machine

1 30T/D 2 Shifts 22 Days 7920T/Y



Appalication

1) Steel ball, roller and collar of large machinery bearing

2) High-hardness and high contact fatigue strength machinery parts with heavy load, such as axis of rotation, blade, stator pump, profiling, sleeve, mandril, etc.



Test

1. Selection of raw materials: We have our own lab to make sure that the matarial we choose is the best .

2. Advanced detection equipment:The turbine detector, Ultrasonic flaw detection & Infrared detection apparatus.

3. Test report with 3rd party.





Theoretical weight scale

Kg/m Wall Thickness
OD 3 3.5 4 4.5 5 5.5 6
32 2.146 2.460 2.762 3.052 3.329 3.594 3.847
38 2.589 2.978 3.354 3.718 4.069 4.408 4.735
42 2.885 3.323 3.749 4.162 4.562 4.951 5.327
45 3.107 3.582 4.044 4.495 4.932 5.358 5.771
50 3.477 4.014 4.538 5.049 5.549 6.036 6.511
54 3.773 4.359 4.932 5.493 6.042 6.578 7.103
57 3.995 4.618 5.228 5.826 6.412 6.985 7.546
60 4.217 4.877 5.524 6.159 6.782 7.392 7.990
63.5 4.476 5.179 5.869 6.548 7.214 7.867 8.508
68 4.809 5.567 6.313 7.047 7.768 8.477 9.174
70 4.957 5.740 6.511 7.269 8.015 8.749 9.470
73 5.179 5.999 6.807 7.602 8.385 9.156 9.914
76 5.401 6.258 7.103 7.935 8.755 9.563 10.358
89 6.363 7.380 8.385 9.378 10.358 11.326 12.281
108 7.768 9.020 10.259 11.486 12.701 13.903 15.093
133 11.178 12.725 14.261 15.783 17.294 18.792
159 13.422 15.290 17.146 18.989 20.821 22.639
219 18.601 21.209 23.805 26.388 28.959 31.517
273 23.262 26.536 29.797 33.046 36.283 39.508
325 27.750 31.665 35.568 39.458 43.337 47.202
355 38.897 43.158 47.406 51.641
377 41.339 45.871 50.390 54.897
426 46.777 51.913 57.036 62.147
450
480
530
630







YB/T4146 GCr15 Cold Drawing Seamless Bearing Steel Tube 1YB/T4146 GCr15 Cold Drawing Seamless Bearing Steel Tube 2
