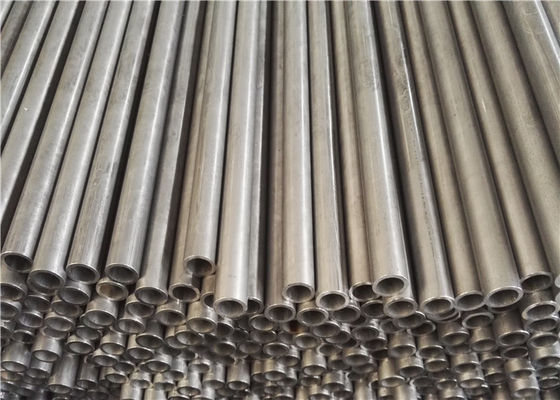

Hydraulic Cylinder Thin Wall Steel Tubing 0.5mm Thickness Custom Available

Hydraulic Cylinder Thin Wall Steel Tubing 0.5mm Thickness Custom Available

    • Hydraulic Cylinder Thin Wall Steel Tubing 0.5mm Thickness Custom Available
    • Hydraulic Cylinder Thin Wall Steel Tubing 0.5mm Thickness Custom Available
  • Hydraulic Cylinder Thin Wall Steel Tubing 0.5mm Thickness Custom Available

    Product Details:

    Place of Origin: Jiangsu, China
    Brand Name: Hongbao
    Certification: TS16949,DNV,PED,ISO,TUV,LR
    Model Number: HBPST-1

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 ton
    Price: Negotiable
    Packaging Details: seaworthy plywooden case packing.
    Delivery Time: Within 50 days if production
    Supply Ability: 30000MT per year
    Contact Now
    Detailed Product Description
    Material:: ST37.4,ST52.4,E235,E355,26MnB5,34MnB5 Brand:: Hongbao
    Origin:: Jiangsu,China OD:: 6-120mm
    Thickness:: 0.5-15mm Processing:: Cold Drawn, Cold Rolled

    E355 EN10305 Round Thin Wall Steel Tube ST52DIN2391 Hydraulic Parts Using Cold Rolled



    Description:

    Mechanical properties at room temperature
    Delivery Condition BK BKW GBK NBK (N)
    Steel Grade Rm A % Rm A % Rm A % Rm ReH A %
    Mpa (Min) (Min) Mpa(Min) (Min) Mpa(Min) (Min) Mpa(Min) Mpa(Min) (Min)
    E255 580 5 520 8 390 21 440~570 255 21
    E355 640 4 580 7 450 22 490~630 355 22
    E235 480 6 420 10 315 25 340~480 235 25
    E215 430 8 380 12 280 30 290~430 215 30





















    Delivery Condition

    1. NBK(+N)
    after cold forming, eventually above phase transition point, in a protective atmosphere of annealing oxidation medium
    2. GBK(+A)
    after cold forming, annealing in non oxidizing medium protective gas
    3. BK(+C)
    the final heat treatment after cold forming, threfore small steel pipe plasticly, the plasticly degree does not guarantee



    Application

    Fuel injection lines/nozzles for diesel or gasoline engine;
    Compressed natured gas CNG tube
    Drive transmission: steering column elements
    Gear shafts, hand brake, front axles, airbag inflators, stabilizers, seat fasteners, front-wheel drive shafts
    Mechanical structure pipe parts in automobile,motorcycles and vehicle
    Hydraulic circuits, pneumatic lines and hydraulic suspension
    Hydraulic cylinders



    Hydraulic Cylinder Thin Wall Steel Tubing 0.5mm Thickness Custom Available
