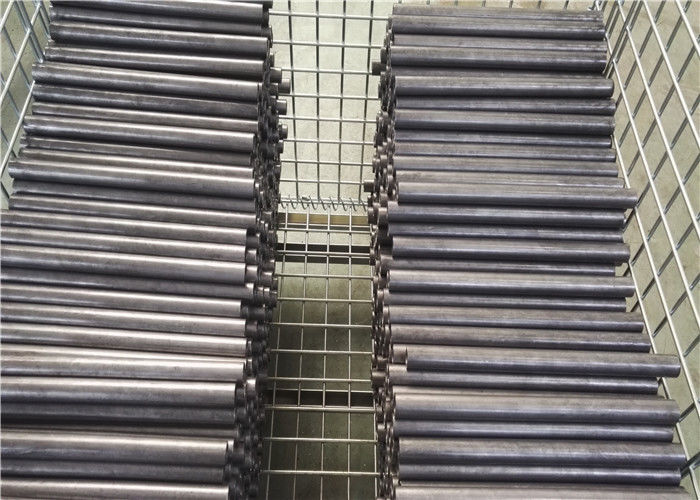

Auto Steering Device Hollow Metal Pole Seamless Cold Rolled 6mm Outside Diameter

Auto Steering Device Hollow Metal Pole Seamless Cold Rolled 6mm Outside Diameter

    • Auto Steering Device Hollow Metal Pole Seamless Cold Rolled 6mm Outside Diameter
    • Auto Steering Device Hollow Metal Pole Seamless Cold Rolled 6mm Outside Diameter
  • Auto Steering Device Hollow Metal Pole Seamless Cold Rolled 6mm Outside Diameter

    Product Details:

    Place of Origin: Jiangsu, China
    Brand Name: Hongbao
    Certification: TS16949,DNV,PED,ISO,TUV,LR
    Model Number: HBHST-1

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 ton
    Price: Negotiable
    Packaging Details: Original packaging according to the customers Export standard package in bundled or as required.
    Delivery Time: within 50 days
    Supply Ability: 30000MT per year
    Contact Now
    Detailed Product Description
    Brand:: Hongbao Certificate:: TS16949,DNV,PED,ISO,TUV,LR
    OD:: 6-120mm Thickness:: 0.5-15mm
    Length:: 12000mm Max Type:: Welded Or Seamless

    Cold Rolled Seamless Steel Tube Hollow Steel Pipe Used For Steering Device In Autos



    Description:

    Tolerance in Dimension:

    OD GB/T3639(GB8713) DIN2391(EN10305) Our Tolerence Best Quality
    4-30mm ±0.10mm ±0.08mm ±0.05mm ±0.02mm
    31-40mm ±0.15mm ±0.15mm ±0.05mm ±0.03mm
    41-50mm ±0.20mm ±0.20mm ±0.05mm ±0.03mm
    51-60mm ±0.25mm ±0.25mm ±0.08mm ±0.03mm
    61-70mm ±0.30mm ±0.30mm ±0.10mm ±0.05mm
    71-160mm ±0.30mm ±0.30mm ±0.10mm ±0.05mm
    Tolerance in WT ±0.12mm ±0.10mm ±0.05mm ±0.03mm





















    Testing:

    100% PMI,Spectro Chemical Aanlysis Test for Raw Material

    100% Dimension & Visual Examination

    100% Hydrostatic Test or 100% NON-DESTRUCTIVE Test (ET or UT)

    Mechanical Properties Test Include Tension Test,Flaring Test (For Seamless tube/pipe)/ Flange Test (For Welded Pipe & Tube), Hardness Test ,Reversed Flattening Test

    Straightness Test



    Material grade:10#~45#, 16Mn, ST35~ST52

    Length:as customer’s need

    Standard: DIN2391, EN10305, GB/T3639, GB8713

    Application: hydraulic cylinder, automobile

    Heat Treatment: according to the customer’s need

    Delivery time : 30days more or according to the customer’s acquirement



    Package:

    1. bundle packing

    2. marking as per customer's requests

    3. paint on the pipe as per customer request

    4. pipe caps as customer reque
