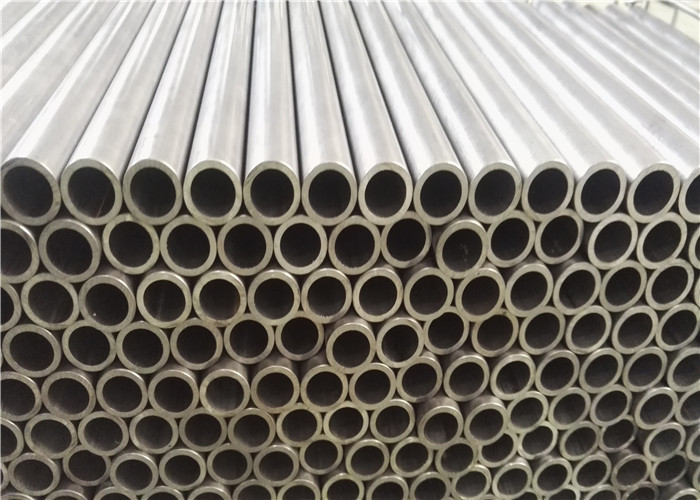

Oil Treated Round Hollow Tube EN10305 For Gasoline Engine Fuel Injection Lines

Place of Origin Jiangsu, China
Brand Name Hongbao
Certification TS16949,DNV,PED,ISO,TUV,LR
Model Number HBHST-1
Minimum Order Quantity 1 ton
Price Negotiable
Packaging Details Original packaging according to the customers Export standard package in bundled or as required.
Delivery Time within 50 days
Supply Ability 30000MT per year
Product Details
Brand Hongbao Certificate TS16949,DNV,PED,ISO,TUV,LR
Material ST37.4,ST52.4,E235,E355,26MnB5,34MnB5 OD 6-120mm
Thickness 0.5-15mm Length 12000mm Max
Shape Round Type Welded Or Seamless
High Light

hollow steel bar

,

round hollow tube

Leave a Message
Product Description

EN10305 E235 E355 Precision Round Hollow Steel Tube Honed Steel Pipe



Description:

Chemical Composition and Mechanical Performance:

Table 1- Chemical composition
Steel Grade C% Si% Mn% P% S% AL%
E215 ≤0.10 ≤0.05 ≤0.7 ≤0.025 ≤0.025 ≥0.025
E235 ≤0.17 ≤0.35 0.4-1.2 ≤0.025 ≤0.025
E255 ≤0.21 ≤0.35 0.4-1.1 ≤0.025 ≤0.025
E355 ≤0.22 ≤0.55 ≤1.6 ≤0.025 ≤0.025



Table 2 - Mechanical properties at room temperature
Delivery Condition BK BKW GBK NBK (N)
Steel Grade Rm A % Rm A % Rm A % Rm ReH A %
Mpa (Min) (Min) Mpa(Min) (Min) Mpa(Min) (Min) Mpa(Min) Mpa(Min) (Min)
E215 430 8 380 12 280 30 290~430 215 30
E235 480 6 420 10 315 25 340~480 235 25
E255 580 5 520 8 390 21 440~570 255 21
E355 640 4 580 7 450 22 490~630 355 22

































Delivery condition of seamless cold drawn mechanical tubing

BK (+C) Cold finished/hard (cold finished as drawn).

BKW (+LC) Cold finished/soft

BKS (+SR) Cold finished/stress relieve annealed.

GBK (+A) Annealed.

NBK (+N) Normalized.



Application

Fuel injection lines/nozzles for diesel or gasoline engine;
Compressed natured gas CNG tube
Drive transmission: steering column elements
