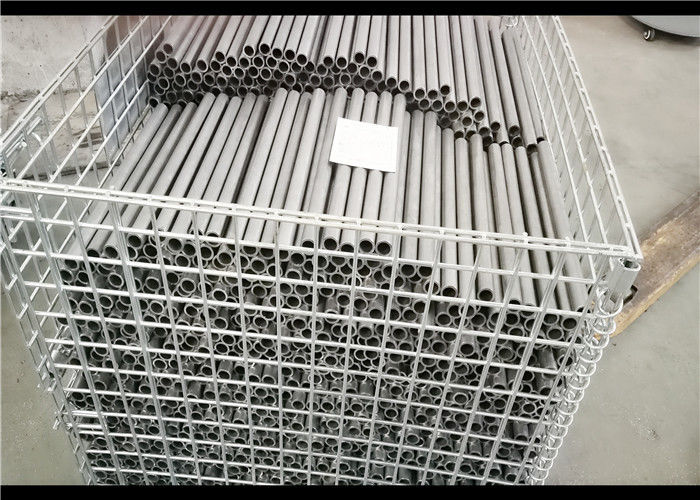

Camshaft Producing High Precision Seamless Pipe Bright Annealed EN10305-1
| Place of Origin | China |
|---|---|
| Brand Name | Hongbao |
| Certification | TS16949, ISO9001, OHSAS18001 etc. |
| Model Number | HBPST-1 |
| Minimum Order Quantity | 1 ton |
| Price | Negotiable |
| Packaging Details | Seaworthy Wooden box, customized Packing |
| Delivery Time | 30 Days |
| Supply Ability | 60000 MT per Year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Shape | Round | Application | Automotive Part, Hydraulic System, High-precsion Machining. Etc. |
|---|---|---|---|
| Delivery Condition | +C,+LC，+SR，+N，+A | Standard | EN10305-1 |
| Processing | Cold Drawn, Cold Rolled | Certificate | TS16949,DNV,PED,ISO |
| High Light | seamless steel tube,seamless round tubes |
||
Product Description
Round Steel Pipe EN10305-1 Material E235 High Precision Seamless Steel Tubes
Chemical Component
| Steel Number | Quality Level | Thickness/mm | Deoxidize Method | C(%)≤ | Si(%)≤ | Mn(%)≤ | P(%)≤ | S(%)≤ |
| E235(Fe360) |
A B
C D |
≤16 ＞16-25 ≤40 ＞40
|
N - - E NE NE GF |
0.22 0.17 0.20 0.17 0.20 0.17 0.17 |
- 0.40 0.40 0.40 0.40 0.40 0.40 |
- 1.40 1.40 1.40 1.40 1.40 1.40 |
0.050 0.045 0.045 0.045 0.045 0.040 0.035 |
0.050 0.045 0.045 0.045 0.045 0.040 0.035 |
Main Date
| Material | E235 |
| Outer Diameter Range: | 4-120mm |
| Wall Thickness Range: | 0.5-15mm |
| Standard | EN10305-1 |
Delivery Condition
NBK(+N): After the final cold drawing operation the tubes are normalized in a controlled atmosphere.
GBK(+A): After the final cold drawing process the tubes are annealed in a controlled atmosphere.
BK(+C): No heat treatment after the final cold drawig process.
BKW(+LC): After the final heat treatment there is a suitable drawing pass.
BKS(+SR): After the final cold drawing process there is a stress relieve heat treatment in a controlled atmosphere.
Application
Automotive Part,
Hydraulic System,
High-precsion Machining.
