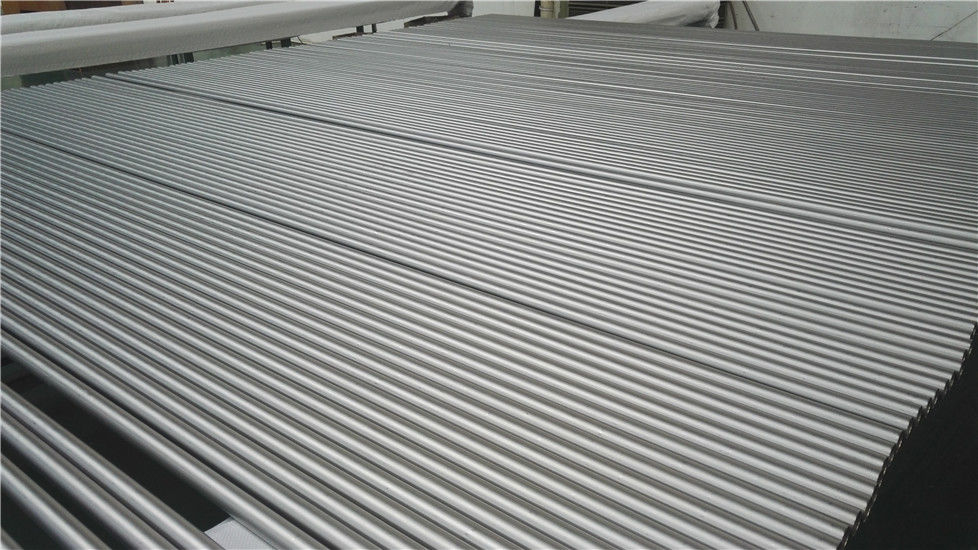

Light Weight Heat Exchanger Tube , Gr9 Gr12 Precision Titanium Micro Tubing

Light Weight Heat Exchanger Tube , Gr9 Gr12 Precision Titanium Micro Tubing

    • Light Weight Heat Exchanger Tube , Gr9 Gr12 Precision Titanium Micro Tubing
    • Light Weight Heat Exchanger Tube , Gr9 Gr12 Precision Titanium Micro Tubing
  • Light Weight Heat Exchanger Tube , Gr9 Gr12 Precision Titanium Micro Tubing

    Product Details:

    Place of Origin: Jiangsu, China
    Brand Name: Hongbao
    Certification: DNV,PED,ISO,TUV,LR
    Model Number: HB-TI

    Payment & Shipping Terms:

    Minimum Order Quantity: 200kg
    Price: Negotiable
    Packaging Details: seaworthy plywooden case packing.
    Delivery Time: within 50 days
    Payment Terms: D/P, L/C, D/A, L/C, Western Union, MoneyGram
    Supply Ability: 800MT/YEAR
    Contact Now
    Detailed Product Description
    Material:: Gr1,Gr2,Gr3,Gr7,G9,Gr12 Thickness:: 0.4-10mm
    OD:: 10-114mm Length:: 100-15000mm
    Standard: ASTM B338; ASTM B861

    Heat Exchanger Tubes ASME SB338 Gr2 Gr7 Gr9 Gr12 Seamless Titanium Precision Titanium Tube



    Description

    Titanium tubes are the ninth most abundant element in the earth’s crust and the seventh most abundant metal. Its low density, slightly over half that of steel, and its high strength combination is the reason for the metals growing preference in both military and commercial aircraft. The alloying of titanium tubing with elements such as aluminum and vanadium increase the strength of titanium while at the same time retains its weight advantage over steel.

    Titanium is classified in two categories, commercially pure and alloys with additives such as aluminum and vanadium. We are a titanium tubing manufacturer and supplier, and our inventories consist of both types and cover both seamless and welded methods of manufacture.







    Grade

    Gr1, Gr2, Gr9, Gr11, Gr12, Gr16, Gr17



    Dimension

    OD*WT*L (10-114)*(0.4-10)*(100-15000)mm



    Manufacturing method Cold rolled
    Condition

    Annealed(M)



    Features

    Light weight, excellent corrosion resistivity, strongly heat-resistance, high strength.



    Inspection Ultrasonic testing, Hydrostatic testing, Flattening testing, visual surface inspection, Dimensional inspection, tensile properties inspection and Chemical elements analysis.

































    Titanium Grades:

    Titanium Grade 1 is an unalloyed, low strength titanium product containing low oxygen with high formability; this titanium grade is used in airframes, heat exchangers and desalination units.

    Grade 1 commercially pure titanium wire is especially acid-cleaned for anodizing applications but is also ideal for a wide range of fabrication uses. It is ductile and can be formed with a bit of effort. The metal is corrosion-resistant and hypoallergenic.

    Titanium Grade 2 is an unalloyed, medium strength titanium product. This titanium grade is used in airframes, aircraft engines, and marine parts; good weld ability and corrosion resistance are its distinguishing characteristics.

    Grade 2 is the commercially pure titanium used in most of the chemical processing plants and is cold formable. Grade 2 plate and sheet can have ultimate tensile strength at and above 40,000 psi.

    Titanium Grade 3 is an unalloyed, high strength, titanium product providing excellent corrosion resistance and good weld ability. This titanium grade is primarily used in airframe and aircraft engine parts.

    Titanium Grade 4 is the highest strength pure unalloyed titanium product. This titanium grade is used almost exclusively for airframe, aircraft engine parts, marine, surgical implants, hydraulic tubing. Good formability and corrosion resistance are its hallmark.





    Light Weight Heat Exchanger Tube , Gr9 Gr12 Precision Titanium Micro Tubing
