EN10305-2 E235 E355 Welded Cold Drawn Carbon Steel Tube

Place of Origin Jiangsu
Brand Name Hongbao
Certification TS16949, ISo9001
Model Number HBWS-001
Minimum Order Quantity 2MT
Price Negotiable
Packaging Details Packaging: Wooden cases
Delivery Time Negotiable
Supply Ability 800MT/Month
Product Details
Material 26MnB5 Length Random Or Fixed Length
Shape Round Technical Seamless Or Welded
Delivery Condition +C, +N, +SR,+NBK Standard EN10305-1, EN10305-2 Etc
Process Cold Drawn, Cold Rolled
High Light

welded steel pipe

,

cold drawn welded tubes

Leave a Message
Product Description

EN10305-2 E235 E355 Welded Cold Drawn Carbon Steel Tube

With high dimension accuracy and fine surface quality, cold drawn precision steel tubing is suitable for using hydraulic and pneumatic systems. Besides seamless cold drawn tubes, welded cold drawn tubes is also used for cylinder with a smooth surface. BS EN 10305, a series of steel tube specification for precision applications, 10305-2 grade E235 is a ideal material for barrel and cylinder.



Corresponding standards: DIN 2393 St 37-2

size range :O.D. 50 - 380 mm; W.T. 1 - 25 mm

Length: 5 - 7 m

Application: Vehicle construction, furniture industry and general engineering.



E235 Chemical Composition

Steel grade Steel number C max Si max Mn max P max S max Al min
E235 1.0308 0,17 0,35 1,20 0,025 0,025 0,015


E235 Mechanical properties under delivery condition +C (Room Temperature)

Steel grade Tensile strength Rm MPa Yield strength ReH MPa Elongation %
E235 520 470 10



BS EN 10305-2 E235 Surface condition:

A roughness value of Ra < 0,8 μm applies to the inside surface, in compliance with ISO 4287 and ISO 4288. For the outside surface, en 10305-2 is applicable



BS EN 10305-2 E235 Straightness:

Tubes for hydraulic and pneumatic applications are specially straightened with regard to the intended application. For tubes with an outside diameter D > 15 mm supplied in lengths greater than 1 000 mm, the deviation from straightness of any tube length L shall not exceed:

a) 0,001 5 L for ReH ≤ 500 MPa ;

b) 0,002 L for ReH > 500 MPa



SHEW-E STEEL manufactured a wide range of cold drawn welded pipe products with excellent quality and services for tube related solutions. We offers specially precision steel tubes with outside diameters from 50 to 380 mm and wall thicknesses up to 25 mm to suit a wide range of applications.



Production Method:
The cold drawn welded tube is produced by drawing ERW (electric resistance welded tube).During this process the sizing (wall thickness, inside and outside diameter), as well as weld integrity and surface finish is closely controlled to produce tube of the required size and mechanical property characteristics.

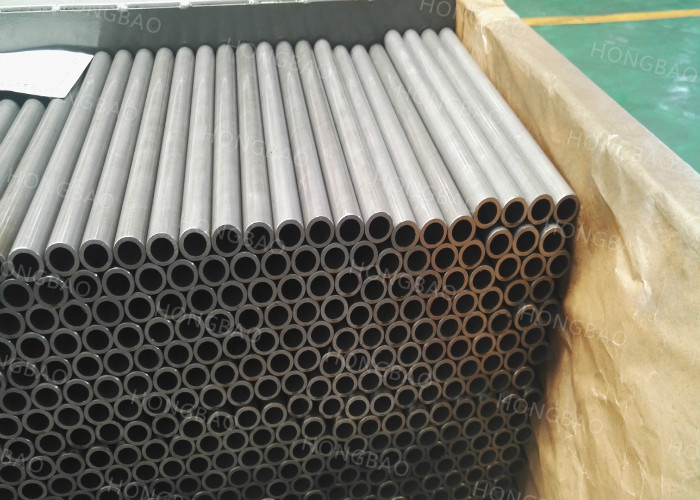

EN10305-2 E235 E355 Welded Cold Drawn Carbon Steel Tube 0
Main Date
Material: E355
Other Aviliable Material: E155 E195 E235 E275
Outer Diameter Range: 10-50mm
Wall Thickness Range: 1.5-8mm
t/D ≥ 0.2(Normal: t/D=0.1)
Standard: En10305-2
Process: Cold Drawn, Cold Rolling

Typical Specification

  Grade
Welding Typical Specification

Yield Strength
1 E355 Φ38×4.5 355~450Mpa


Chemical Component

Steel Number Quality Level Thickness/mm Deoxidize Method C(%)≤ Si(%)≤ Mn(%)≤ P(%)≤ S(%)≤
E185(Fe310) 0 - - - - - - -
E235(Fe360) A
B



C
D
≤16
>16-25
≤40
>40


N
-
-
E
NE
NE
GF
0.22
0.17
0.20
0.17
0.20
0.17
0.17
-
0.40
0.40
0.40
0.40
0.40
0.40
-
1.40
1.40
1.40
1.40
1.40
1.40
0.050
0.045
0.045
0.045
0.045
0.040
0.035
0.050
0.045
0.045
0.045
0.045
0.040
0.035
E275(Fe430) A
B
C
D
≤40
>40
-
E
NE
NE
GF
0.24
0.21
0.22
0.20
0.20
-
0.40
0.40
0.40
0.40
-
1.50
1.50
1.50
1.50
0.050
0.045
0.045
0.040
0.035
0.050
0.045
0.045
0.040
0.035
E355(Fe510) C
D
≤30
>30
≤30
>30
NE
NE
GF
GF
0.20
0.22
0.20
0.22
0.55
0.55
0.55
0.55
1.60
1.60
1.60
1.60
0.040
0.040
0.035
0.035
0.040
0.040
0.035
0.035


Delivery Condition:
1) +C No heat treatment after the final cold drawing process.
2) +LC After the final heat treatment there is a suitable drawing pass.
3) +SR After the final cold drawing process there is a stress relieve heat treatment in a controlled atmosphere.
4) +A After the final cold drawing process the tubes are annealed in a controlled atmosphere.
5) +N After the final cold drawing operation the tubes are normalized in a controlled atmosphere.

Advantage (compare with seamless cold drawn tube)
Better shape
Improved quality surface
Tight Excentricity and wall thickness tolerances (the eccentric
Tube more safety
Good toughness at low temperature
USA Market: 90% of the cylinder in the USA market are produced with welded tubes
Cost fix Lengths More Cheaper

Advantage of Our Company

Top class of welding line: SG/76 Enhanced High-precise High Frequency Welding Tube Production Line. The tube is of small outer diameter (D) and thick wall thickness (t): t/D≥0.2, and high size precision.
