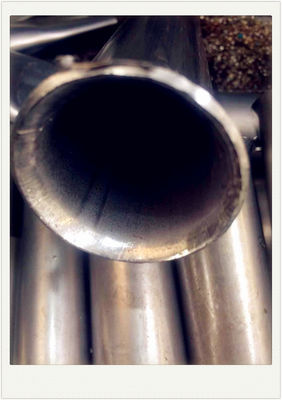

Enhanced Precision Steel Tube High Frequency For Hollow Stabilizer Bar

Enhanced Precision Steel Tube High Frequency For Hollow Stabilizer Bar

    • Enhanced Precision Steel Tube High Frequency For Hollow Stabilizer Bar
    • Enhanced Precision Steel Tube High Frequency For Hollow Stabilizer Bar
  • Enhanced Precision Steel Tube High Frequency For Hollow Stabilizer Bar

    Product Details:

    Place of Origin: China
    Brand Name: HONGBAO
    Certification: TS16949, ISO9001, OHSAS18001 etc.
    Model Number: HBPST-1

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 ton
    Price: Negotiable
    Packaging Details: Seaworthy Wooden box, customized Packing
    Delivery Time: 30-45 days
    Supply Ability: 60000 MT per year
    Contact Now
    Detailed Product Description
    Material: 26MnB5,34MnB5 Standard: EN10305-2
    Shape: Round Technique: Cold Drawn
    Origin:: Jiangsu,China Shape:: Round

    Percision Pipe Welded Steel Tupe Hollow Stabilizer Bar Standard EN10305-2



    Manufacturing Process

    Hollow Stabilizer Bar Tube is produced by drawing ERW (electric resistance welded tube).During this process the sizing (wall thickness, inside and outside diameter), as well as weld integrity and surface finish is closely controlled to produce tube of the required size and mechanical property characteristics.



    Main Date

    Material 34MnB5, 26MnB5
    OD 10-50mm
    WT 1.5-8mm
    Standard EN10305-2
    Technique Cold Drawn



    Typical Specification

    NO. Grade Welding Typical Specification Yield Strength
    1 26MnB5 Φ34×6 235~300Mpa
    2 34MnB5 Φ28×5 285~360Mpa


    Application:

    Hollow Stanilizer



    Advantage:

    Top class of welding line: SG/76 Enhanced High-precise High Frequency Welding Tube Production Line. The tube is of small outer diameter (D) and thick wall thickness (t): t/D≥0.2, and high size precision.



    Deliver condition:

    +C No heat treatment after the final cold drawing process.
    +N After the final cold drawing operation the tubes are normalized in a controlled atmosphere.



    Capacity

    NO. WeldingTypical Specification

    Unit Speed

    (m/min)

    Working Time

    (Hour)

    Capacity

    (Ton)

    Ratio of Total output
    1 Φ34×6 18 1211 11200 56%
    2 Φ28×5.2 20 1522
    3 Φ38×4.5 28 883 5500 27.5%
    4 Φ50.8×2.3 60 114 1130 5.6%
    5 Φ55×3 50 190 2170 10.8%
    Total     3920 20000 100%



    Test:

    Tubes are controlled 100% by Ultrasonic test, Eddy Current Test.  Also we have our own lab to control the quility of material and products.

    Enhanced Precision Steel Tube High Frequency For Hollow Stabilizer BarEnhanced Precision Steel Tube High Frequency For Hollow Stabilizer Bar
