EN10305-2 26MnB5 OD10 Enhanced Precision Steel Tube High Frequency For Hollow Stabilizer Bar

Product Details

Place of Origin: China

Brand Name: HONGBAO

Certification: TS16949, ISO9001, OHSAS18001 etc.

Model Number: HBPST-1

Payment & Shipping Terms

Minimum Order Quantity: 1 ton

Price: Negotiable

Packaging Details: Seaworthy Wooden box, customized Packing

Delivery Time: 30-45 days

Payment Terms: L/C, T/T

Supply Ability: 60000 MT per year

Get Best Price
Highlight:

welded steel pipe

,

welding round tubing

Material:
26MnB5, 34MnB5
Standard:
EN10305-2
Shape:
Round
Technique:
Cold Drawn
Origin::
Jiangsu, China
Shape::
Round
Material:
26MnB5, 34MnB5
Standard:
EN10305-2
Shape:
Round
Technique:
Cold Drawn
Origin::
Jiangsu, China
Shape::
Round
EN10305-2 26MnB5 OD10 Enhanced Precision Steel Tube High Frequency For Hollow Stabilizer Bar

EN10305-2 26MnB5 OD10 Enhanced Precision Steel Tube High Frequency For Hollow Stabilizer Bar



Description:

Our precision steel tubes benefit from advanced machines and technology to meet the highest requirements of our customers. Compared with traditional tubes, ours are light in weight and have high dimensional accuracy.



Manufacturing Process:

Hollow Stabilizer Bar Tube is produced by drawing ERW (electric resistance welded tube).During this process the sizing (wall thickness, inside and outside diameter), as well as weld integrity and surface finish is closely controlled to produce tube of the required size and mechanical property characteristics.



Main Date:

Material 34MnB5, 26MnB5
OD 10-50mm
WT 1.5-8mm
Standard EN10305-2
Technique Cold Drawn



Typical Specification:

NO. Grade Welding Typical Specification Yield Strength
1 26MnB5 Φ34×6 235~300Mpa
2 34MnB5 Φ28×5 285~360Mpa


Application:

Hollow Stanilizer



Advantage:

Top class of welding line: SG/76 Enhanced High-precise High Frequency Welding Tube Production Line. The tube is of small outer diameter (D) and thick wall thickness (t): t/D≥0.2, and high size precision.



Deliver condition:

+C No heat treatment after the final cold drawing process.
+N After the final cold drawing operation the tubes are normalized in a controlled atmosphere.



Capacity

NO. WeldingTypical Specification

Unit Speed

(m/min)

Working Time

(Hour)

Capacity

(Ton)

Ratio of Total output
1 Φ34×6 18 1211 11200 56%
2 Φ28×5.2 20 1522
3 Φ38×4.5 28 883 5500 27.5%
4 Φ50.8×2.3 60 114 1130 5.6%
5 Φ55×3 50 190 2170 10.8%
Total     3920 20000 100%



Test:

Tubes are controlled 100% by Ultrasonic test, Eddy Current Test.  Also we have our own lab to control the quility of material and products.

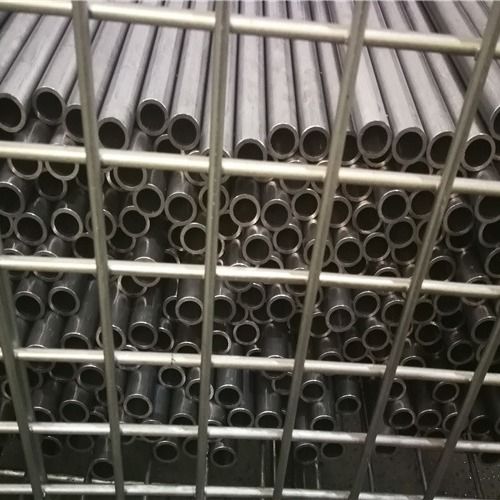

EN10305-2 26MnB5 OD10 Enhanced Precision Steel Tube High Frequency For Hollow Stabilizer Bar 0EN10305-2 26MnB5 OD10 Enhanced Precision Steel Tube High Frequency For Hollow Stabilizer Bar 1
