Condenser Heat Exchanger Tube , 219mm OD High Strength Titanium Bike Tubing

Condenser Heat Exchanger Tube , 219mm OD High Strength Titanium Bike Tubing

    • Condenser Heat Exchanger Tube , 219mm OD High Strength Titanium Bike Tubing
    • Condenser Heat Exchanger Tube , 219mm OD High Strength Titanium Bike Tubing
  • Condenser Heat Exchanger Tube , 219mm OD High Strength Titanium Bike Tubing

    Product Details:

    Place of Origin: Jiangsu, China
    Brand Name: Hongbao
    Certification: DNV,PED,ISO,TUV,LR
    Model Number: HB-TI

    Payment & Shipping Terms:

    Minimum Order Quantity: 200kg
    Price: Negotiable
    Packaging Details: seaworthy plywooden case packing.
    Delivery Time: within 50 days
    Payment Terms: D/P, L/C, D/A, L/C, Western Union, MoneyGram
    Supply Ability: 800MT/YEAR
    Contact Now
    Detailed Product Description
    Material:: Gr1,Gr2,Gr3,Gr7,G9,Gr12 Certificate:: DNV,PED,ISO,TUV,LR
    Origin:: Jiangsu,China Thickness:: 0.4-10mm
    OD:: 3-219mm Length:: 12000mm Max.

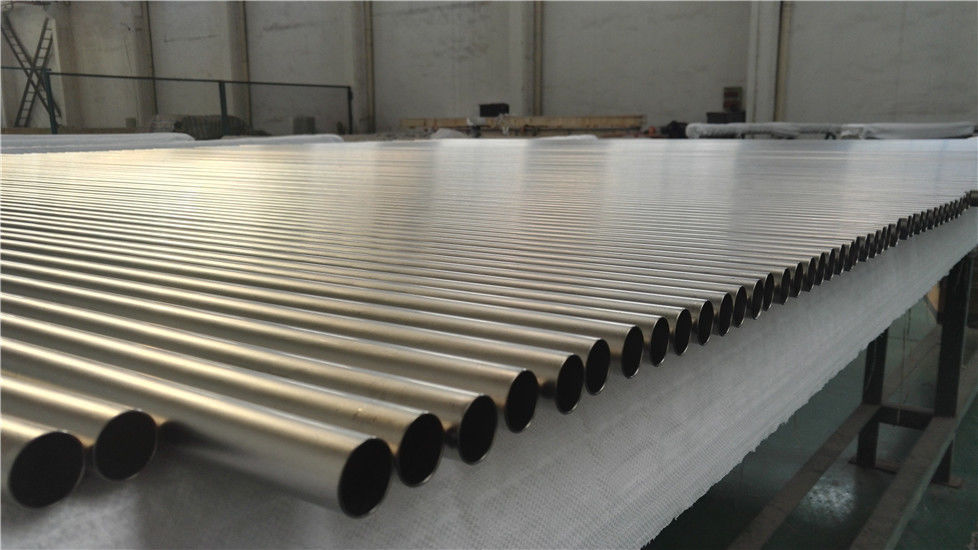

    ASTM B861 Titanium Heat Exchanger Tube Precision Titanium Pipe For Heating Equipment



    Description

    Product Name ASTM B861 Titanium Heat Exchanger Tube Precision Titanium Pipe For Heating Equipment
    Material Pure Titanium/Titanium Alloy
    Grade Gr.1/Gr.2/Gr.3/Gr.5/Gr.7/Gr.9/Gr.12
    Size OD: 3-219mm;Thickness: 0.4-10mm; L: max 12000 mm
    Place of Origin Jiangsu, China
    Usual Package Plastic bag inside, wooden case outside
    Main Port Shanghai
    Advantages Good bending property
    Advantages Meet special flattening requirement
    Advantages 100% surface polishing
    Standard ASTMB338,ASTM B861,ASTM B862,AMS,GOST,JIS
    Certificate ISO 9001:2008; PED 2014/68/EU































    Prcossing:

    Titanium sponge→melt to ingot(control the content of chemical composition according

    to the Standard and customized)→forging(forged billet)→scalping→tube billet(made by

    extrusion)→rolling(get semi-finished tube)→annealing( vacuum annealing furnace)→

    straightening→tailor→pickling(nitric acid solution)→finished tube→testing(dimension

    and mechanical property)→packing→shipping



    Specifications

    Ti grade UNS ASTM/ASME W.Nr. AFNOR
    Ti Grade 1 (CP Ti) R50250 Grade 1 W.Nr. 3.7025 T-35
    Ti Grade 2 (CP Ti) R50400 Grade 2 W.Nr. 3.7035 T-40
    Ti Grade 3 (CP Ti) R50550 Grade 3 W.Nr. 3.7055 T-50
    Ti Grade 7 R52400 Grade 7 W.Nr. 3.7235 -
    Ti Grade 9 R56320 Grade 9 W.Nr. 3.7195 T-A3V2.5
    Ti Grade 11 R52250 Grade 11 W.Nr. 3.7225 -
    Ti Grade 12 R53400 Grade 12 W.Nr. 3.7105 -
    Ti Grade 16 R52402 Grade 16 - -





    Condenser Heat Exchanger Tube , 219mm OD High Strength Titanium Bike Tubing
