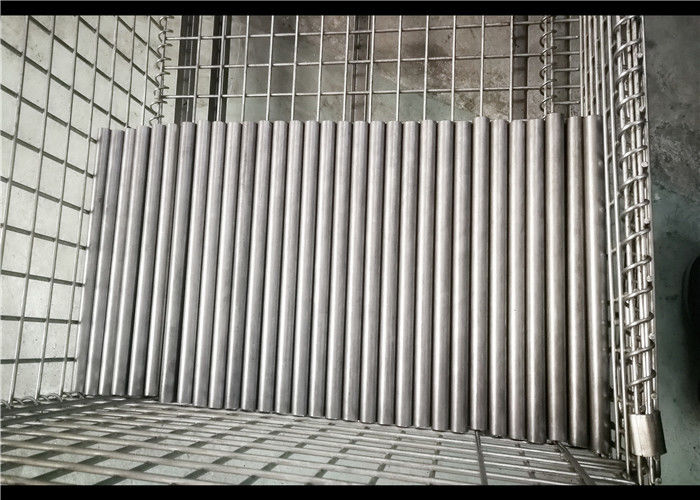

High Precision Automotive Steel Tubing , Camshaft Special Welded Steel Pipe

High Precision Automotive Steel Tubing , Camshaft Special Welded Steel Pipe

    • High Precision Automotive Steel Tubing , Camshaft Special Welded Steel Pipe
    • High Precision Automotive Steel Tubing , Camshaft Special Welded Steel Pipe
  • High Precision Automotive Steel Tubing , Camshaft Special Welded Steel Pipe

    Product Details:

    Place of Origin: China
    Brand Name: Hongbao
    Certification: TS16949, ISO9001, OHSAS18001 etc.
    Model Number: HB-WT-001

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 ton
    Price: Negotiable
    Packaging Details: Seaworthy Wooden box, customized Packing
    Delivery Time: 30-45 Days
    Supply Ability: 60000 MT per Year
    Contact Now
    Detailed Product Description
    Material: E355 Standard: EN10305-2
    Port: Shanghai Port Or As Requirements Payment: T/T; L/C
    Application: Camshaft Trade Term: FOB, EXW ,CIT Etc.

    High Precision Automotive Steel Tubing , Camshaft Special Welded Steel Pipe



    Production Method:
    The cold drawn welded tube is produced by drawing ERW (electric resistance welded tube).During this process the sizing (wall thickness, inside and outside diameter), as well as weld integrity and surface finish is closely controlled to produce tube of the required size and mechanical property characteristics.

    Main Date
    Material: E355
    Other Aviliable Material: E155 E195 E235 E275
    Outer Diameter Range: 10-50mm
    Wall Thickness Range: 1.5-8mm
    t/D ≥ 0.2(Normal: t/D=0.1)
    Standard: En10305-2
    Process: Cold Drawn, Cold Rolling

    Typical Specification

      Grade


    Welding Typical Specification


    Yield Strength

    3 E355 Φ38×4.5 355~450Mpa


    Chemical Component

    Steel Number Quality Level Thickness/mm Deoxidize Method C(%)≤ Si(%)≤ Mn(%)≤ P(%)≤ S(%)≤
    E185(Fe310) 0 - - - - - - -
    E235(Fe360)

    A
    B



    C
    D

    ≤16
    >16-25
    ≤40
    >40




    N
    -
    -
    E
    NE
    NE
    GF

    0.22
    0.17
    0.20
    0.17
    0.20
    0.17
    0.17

    -
    0.40
    0.40
    0.40
    0.40
    0.40
    0.40

    -
    1.40
    1.40
    1.40
    1.40
    1.40
    1.40

    0.050
    0.045
    0.045
    0.045
    0.045
    0.040
    0.035

    0.050
    0.045
    0.045
    0.045
    0.045
    0.040
    0.035

    E275(Fe430)

    A
    B
    C
    D

    ≤40
    >40

    -
    E
    NE
    NE
    GF

    0.24
    0.21
    0.22
    0.20
    0.20

    -
    0.40
    0.40
    0.40
    0.40

    -
    1.50
    1.50
    1.50
    1.50

    0.050
    0.045
    0.045
    0.040
    0.035

    0.050
    0.045
    0.045
    0.040
    0.035

    E355(Fe510)

    C
    D

    ≤30
    >30
    ≤30
    >30

    NE
    NE
    GF
    GF

    0.20
    0.22
    0.20
    0.22

    0.55
    0.55
    0.55
    0.55

    1.60
    1.60
    1.60
    1.60

    0.040
    0.040
    0.035
    0.035

    0.040
    0.040
    0.035
    0.035


    Stength Yield

    Steel Number Yield Strengh/MPa
    ≤16 >16-40 >40-63 >63-80 >80-100 >100-150 >150-200
    E185(Fe310) - 185 175 - - - - -
    E235(Fe360)

    A
    B
    BNF
    C
    D

    235
    235
    235
    235
    235

    225
    225
    225
    225
    225

    215
    -
    215
    215
    215

    215
    -
    215
    215
    215

    215
    -
    215
    215
    215

    195
    -
    195
    195
    195

    185
    -
    185
    185
    185

    E275(Fe430)

    A
    B
    C
    D

    275
    275
    275
    275

    265
    265
    265
    265

    255
    255
    255
    255

    245
    245
    245
    245

    235
    235
    235
    235

    225
    225
    225
    225

    215
    215
    215
    215

    E355(Fe510)

    C
    D

    355
    355

    345
    345

    335
    335

    325
    325

    315
    315

    295
    295

    285
    285


    Delivery Condition:
    1) +C No heat treatment after the final cold drawing process.
    2) +LC After the final heat treatment there is a suitable drawing pass.
    3) +SR After the final cold drawing process there is a stress relieve heat treatment in a controlled atmosphere.
    4) +A After the final cold drawing process the tubes are annealed in a controlled atmosphere.
    5) +N After the final cold drawing operation the tubes are normalized in a controlled atmosphere.

    Advantage (compare with seamless cold drawn tube)
    Better shape
    Improved quality surface
    Tight Excentricity and wall thickness tolerances (the eccentric
    Tube more safety
    Good toughness at low temperature
    USA Market: 90% of the cylinder in the USA market are produced with welded tubes
    Cost fix Lengths More Cheaper

    Advantage of Our Company

    Top class of welding line: SG/76 Enhanced High-precise High Frequency Welding Tube Production Line. The tube is of small outer diameter (D) and thick wall thickness (t): t/D≥0.2, and high size precision.



    Application

    Camshaft
