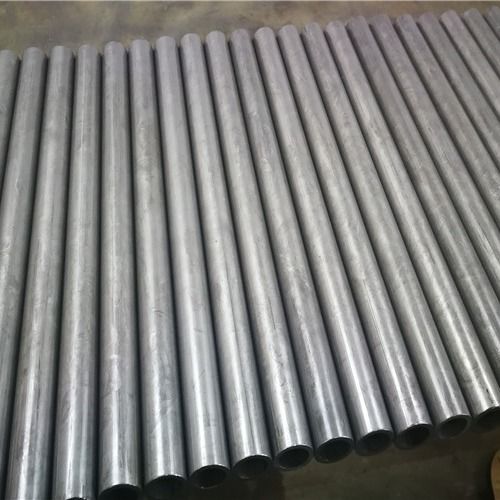

EN10305-2 E355 Cold Drawn Electrolytic Zinc Welded Steel Tube Round Steel Tubing

Name: EN10305-2 E355 Cold Drawn Electrolytic Zinc Welded Steel Tube Round Steel Tubing
Brand: Jiangsu Hongbao Group Co., Ltd.
SKU: HB-WT-001
Price: 22.00 USD
Availability: InStock

Product Details

Place of Origin: Jiangsu, China

Brand Name: Hongbao

Certification: TS16949, ISO9001, OHSAS18001 etc.

Model Number: HB-WT-001

Payment & Shipping Terms

Minimum Order Quantity: 1 ton

Price: Negotiable

Packaging Details: Seaworthy wooden box, customized packing

Delivery Time: 30-45 Days

Payment Terms: L/C,T/T

Supply Ability: 60000 MT per Year

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                welding round tubing, cold drawn welded tubes


Material:	E355	Standard:	EN10305-2
OD:	6-80mm	WT:	0.5-10mm
Shape:	Round	Type:	Welded Or Seamless

Material:	E355
Standard:	EN10305-2
OD:	6-80mm
WT:	0.5-10mm
Shape:	Round
Type:	Welded Or Seamless

EN10305-2 E355 Cold Drawn Electrolytic Zinc Welded Steel Tube Round Steel Tubing

EN10305-2 E355 WT0.5 Electrolytic Zinc Welded Steel Tube, Round Steel Tubing

Product Overview

With high dimension accuracy and fine surface quality, cold drawn precision steel tubing is ideal for hydraulic and pneumatic systems. Both seamless and welded cold drawn tubes are used for cylinders with smooth surfaces. BS EN 10305-2 grade E355 is specifically designed for precision applications and serves as an excellent material for barrels and cylinders.

Chemical Composition Comparison

Steel Grade	Steel Number	C max	Si max	Mn	P max	S max	Al min
E215	1.0212	0.10	0.05	0.70	0.025	0.025	0.025
E235	1.0308	0.17	0.35	1.20	0.025	0.025	-
E355	1.0580	0.22	0.55	1.60	0.025	0.025	-

Manufacturing Process

Produced by cold drawing over mandrel and die on ERW welded steel tube to achieve superior tolerance and excellent concentricity. Both outside and inside weld seams are completely removed during the cold drawing process.

Technical Specifications

Material: E355

Alternative Material: E235

Standard: EN10305-2

Technique: Cold Drawn

Outside Diameter: 6-80 mm

Wall Thickness: 0.5-10 mm

Delivery Conditions

+C: No heat treatment after final cold drawing process

+LC: Suitable drawing pass after final heat treatment

+SR: Stress relieve heat treatment in controlled atmosphere after final cold drawing

+A: Annealed in controlled atmosphere after final cold drawing

+N: Normalized in controlled atmosphere after final cold drawing operation

Key Advantages

Superior shape and form
Enhanced surface quality
Tight eccentricity and wall thickness tolerances
Excellent toughness at low temperatures
90% of cylinders in USA market use welded tubes
Cost-effective fixed lengths

Applications

High precision steel tubes are widely used in:

Bearings
Military applications
Automobile components (bushings, sleeves, fuel tanks)
Various industrial applications
