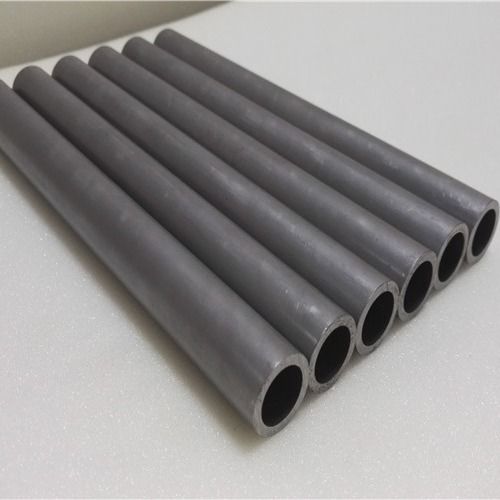

EN10305-2 E355 Cold Drawn Welded Steel Tube for Hydraulic Cylinder Applications

Name: EN10305-2 E355 Cold Drawn Welded Steel Tube for Hydraulic Cylinder Applications
Brand: Jiangsu Hongbao Group Co., Ltd.
SKU: Hongbao-WTX01
Price: 22.00 USD
Availability: InStock

Product Details

Place of Origin: Jiangsu, China

Brand Name: Hongbao

Certification: DNV, ISO, TS16949

Model Number: Hongbao-WTX01

Payment & Shipping Terms

Minimum Order Quantity: 1 ton

Price: Negotiable

Packaging Details: Seaworthy plywooden case

Delivery Time: Within 50 days if production

Payment Terms: L/C,T/T

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                welding round tubing, cold drawn welded tubes


Material:	E355, E235, E215	Section Shape::	Round
Alloy Or Not::	Not	Type::	Precision Steel Tubes
Origin::	Jiangsu, China	Thickness::	0.5-15mm

Material:	E355, E235, E215
Section Shape::	Round
Alloy Or Not::	Not
Type::	Precision Steel Tubes
Origin::	Jiangsu, China
Thickness::	0.5-15mm

EN10305-2 E355 Cold Drawn Welded Steel Tube for Hydraulic Cylinder Applications

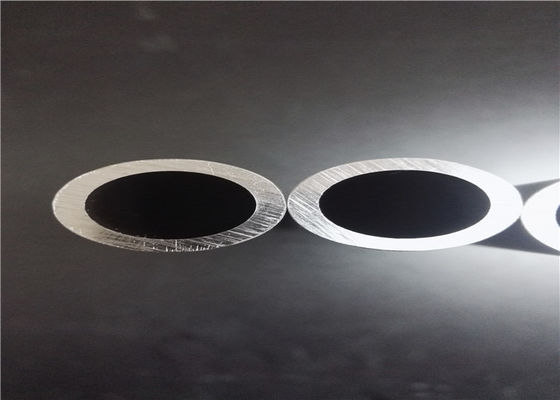

EN10305-2 E355 OD10 Optional Size Welded Steel Tube, Carbon Steel Precision Steel Tube

Cold drawn welded pipe is an excellent choice for multistage hydraulic cylinder tube production. The manufacturing process and precision match that of seamless steel tube cold drawing, utilizing precision resistance welding (ERW) followed by precision drawing to create EN 10305-2 EU mechanical cold drawn steel tube welding standards.

Chemical Composition

Steel Name	Steel Number	C max	Si max	Mn	P max	S max	Al min
E215	1.0212	0.10	0.05	0.70	0.025	0.025	0.025
E235	1.0308	0.17	0.35	1.20	0.025	0.025	-
E355	1.0580	0.22	0.55	1.60	0.025	0.025	-

Product Specifications

Applications: Automotive industry, machine and equipment building
Size Range: O.D.: 6.0-224.0mm, W.T.: 1-15mm, Length: max 12000mm
Delivery State: +C (BK drawn for shine/hard), +N (NBK normalized)
Surface Treatments: Phosphatized, non-phosphatized, electrolytic zinc coated and chromated
Marking: Running marking along whole tube
Additional Testing: Eddy Current Testing, Ultrasonic Testing

Precision Steel Tube Characteristics

Special dimensional accuracy of outer and inner diameters or wall thickness
Smooth surface resulting from drawing technology
Defined mechanical properties
Large dimensional variety

Manufacturing Process

The cold rolled welded tube is produced by drawing ERW (electric resistance welded tube). During this process, the sizing (wall thickness, inside and outside diameter), as well as weld integrity and surface finish is closely controlled to produce tube of the required size and mechanical property characteristics.

Packaging Details

Original packaging according to customer requirements
Export standard package in bundled or as required
Both ends protected with plastic net or wooden boxes according to length and destination
Oiled inside/outside
Marking, oil-coating, varnish, end-protection by plastic caps to be confirmed

Quality Certification

The product is supplied with 3.1.B inspection certificate, according to the standards EN 10204 and ISO 10474.

Payment Terms

30% TT in advance, balance before shipment or B/L at sight.
