EN10305-2 E215 Cold Drawn High Precision Welded Steel Tube for Automotive Applications

Name: EN10305-2 E215 Cold Drawn High Precision Welded Steel Tube for Automotive Applications
Brand: Jiangsu Hongbao Group Co., Ltd.
SKU: HBPST-1
Price: 22.00 USD
Availability: InStock

Product Details

Place of Origin: Jiangsu, China

Brand Name: Hongbao

Certification: DNV, ISO, TS16949

Model Number: HBPST-1

Payment & Shipping Terms

Minimum Order Quantity: 1 ton

Price: Negotiable

Packaging Details: Seaworthy plywooden case

Delivery Time: Within 50 days if production

Payment Terms: L/C,T/T

Supply Ability: 20000MT per year

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                welded steel pipe, cold drawn welded tubes


Material:	E215	Section Shape::	Round
Alloy Or Not::	Not	Type::	Welded Steel Tubes
Certificate::	TS16949, DNV, PED, ISO	Processing::	Cold Drawn, Cold Rolled

Material:	E215
Section Shape::	Round
Alloy Or Not::	Not
Type::	Welded Steel Tubes
Certificate::	TS16949, DNV, PED, ISO
Processing::	Cold Drawn, Cold Rolled

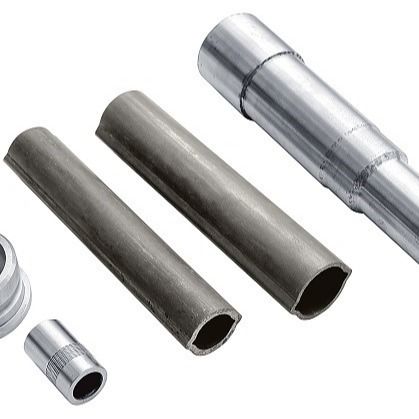

EN10305-2 E215 Cold Drawn High Precision Welded Steel Tube for Automotive Applications

EN10305-2 E215 OD10 Automotive Welded Steel Tube, High Precision Steel Tube

Cold Drawn Precision Welded Steel Tube Round Shape For Automotive

Our cold drawn precision welded steel tubes are meticulously crafted to meet the stringent requirements of the automotive industry. With advanced manufacturing techniques, we ensure exceptional precision, dimensional accuracy, and durability. These tubes play a vital role in enhancing the performance and reliability of automotive systems, setting new standards in quality and engineering excellence.

Typical Specifications

NO.	Grade	Welding Typical Specification	Yield Strength
1	26MnB5	Φ34×6	235～300Mpa
2	34MnB5	Φ28×5	285～360Mpa
3	E355	Φ38×4.5	355～450Mpa
4	STK490	Φ50.8×2.5	345～450Mpa

Delivery Conditions

+C: No heat treatment after the final cold drawing process
+LC: After the final heat treatment there is a suitable drawing pass
+SR: After the final cold drawing process there is a stress relieve heat treatment in a controlled atmosphere
+A: After the final cold drawing process the tubes are annealed in a controlled atmosphere
+N: After the final cold drawing operation the tubes are normalized in a controlled atmosphere

Product Specifications

Material:

45#, E235, E355, 26MnB5 etc

Standard:

EN10305-1, EN10305-2

Delivery Condition:

+C, +N, +LC, +SR, +A

Size Range:

Outer Diameter: 10-50mm
Wall Thickness: 1.5-8mm

Application:

Cold Drawn Precision Welded Steel Tube is widely used in Automotive Parts, Hydraulic Systems, and High-precision Machining

Key Advantages

Top class welding line: SG/76 Enhanced High-precision High Frequency Welding Tube Production Line. The tube features small outer diameter (D) and thick wall thickness (t): t/D≥0.2, with high dimensional precision.

Production Equipment
