Product Details
Place of Origin: Jiangsu, China
Brand Name: Hongbao
Certification: DNV,PED,ISO,TUV,LR
Model Number: HB-TI
Payment & Shipping Terms
Minimum Order Quantity: 200kg
Price: Negotiable
Packaging Details: seaworthy plywooden case packing.
Delivery Time: within 50 days
Payment Terms: D/P, L/C, D/A, L/C, Western Union, MoneyGram
Supply Ability: 800MT/YEAR
Material:: |
Gr1,Gr2,Gr3,Gr7,G9,Gr12 |
Brand:: |
Hongbao |
Certificate:: |
DNV,PED,ISO,TUV,LR |
Origin:: |
Jiangsu,China |
Thickness:: |
0.4-10mm |
OD:: |
3-219mm |
Length:: |
12000 Max. |
Shape:: |
Round |
Material:: |
Gr1,Gr2,Gr3,Gr7,G9,Gr12 |
Brand:: |
Hongbao |
Certificate:: |
DNV,PED,ISO,TUV,LR |
Origin:: |
Jiangsu,China |
Thickness:: |
0.4-10mm |
OD:: |
3-219mm |
Length:: |
12000 Max. |
Shape:: |
Round |

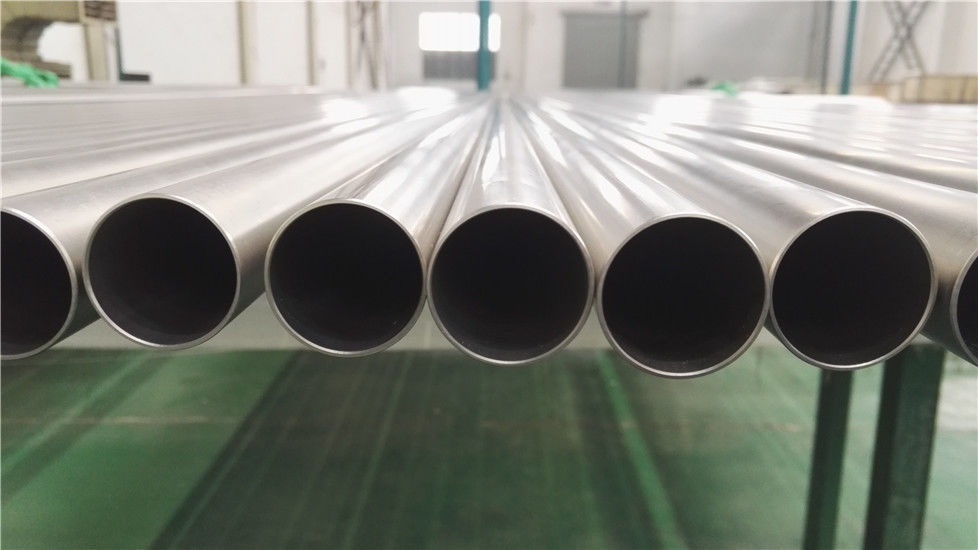

Pickled Sand Blasted Seamless Titanium Heat Exchanger Tube
Description
| Product Name | Pickled Sand Blasted Seamless Titanium Heat Exchanger Tube Titanium Suppressor Tube |
| Material | Pure Titanium/Titanium Alloy |
| Grade | Gr.1/Gr.2/Gr.3/Gr.5/Gr.7/Gr.9/Gr.12 |
| Size | OD: 3-219mm;Thickness: 0.4-10mm; L: max 12000 mm |
| Place of Origin | Jiangsu, China |
| Usual Package | Plastic bag inside, wooden case outside |
| Main Port | Shanghai |
| Advantages | Good bending property |
| Advantages | Meet special flattening requirement |
| Advantages | 100% surface polishing |
| Standard | ASTMB338,ASTM B861,ASTM B862,AMS,GOST,JIS |
| Certificate | ISO 9001:2008; PED 2014/68/EU |
Prcossing:
Titanium sponge→melt to ingot(control the content of chemical composition according
to the Standard and customized)→forging(forged billet)→scalping→tube billet(made by
extrusion)→rolling(get semi-finished tube)→annealing( vacuum annealing furnace)→
straightening→tailor→pickling(nitric acid solution)→finished tube→testing(dimension
and mechanical property)→packing→shipping
Specifications
| Ti grade | UNS | ASTM/ASME | W.Nr. | AFNOR |
| Ti Grade 1 (CP Ti) | R50250 | Grade 1 | W.Nr. 3.7025 | T-35 |
| Ti Grade 2 (CP Ti) | R50400 | Grade 2 | W.Nr. 3.7035 | T-40 |
| Ti Grade 3 (CP Ti) | R50550 | Grade 3 | W.Nr. 3.7055 | T-50 |
| Ti Grade 7 | R52400 | Grade 7 | W.Nr. 3.7235 | - |
| Ti Grade 9 | R56320 | Grade 9 | W.Nr. 3.7195 | T-A3V2.5 |
| Ti Grade 11 | R52250 | Grade 11 | W.Nr. 3.7225 | - |
| Ti Grade 12 | R53400 | Grade 12 | W.Nr. 3.7105 | - |
| Ti Grade 16 | R52402 | Grade 16 | - | - |
Extensive applications:
1. Electrodes in electrolytic industrial
2. Condensor for power station
3. Heater in petroleum refining and sea water desalination
4. Air pollution control device
5. Aviation and aerospace
6. Hydrogen storage materials
7. Anticorrosive construction materials
8. Shape memory alloy
