Product Details
Place of Origin: Jiangsu, China
Brand Name: Hongbao
Certification: DNV,PED,ISO,TUV,LR
Model Number: HB-TI
Payment & Shipping Terms
Minimum Order Quantity: 200kg
Price: Negotiable
Packaging Details: seaworthy plywooden case packing.
Delivery Time: within 50 days
Payment Terms: D/P, L/C, D/A, L/C, Western Union, MoneyGram
Supply Ability: 800MT/YEAR
Material:: |
Gr2,Gr3,Gr7,G9 |
Brand:: |
Hongbao |
Certificate:: |
DNV,PED |
Origin:: |
Jiangsu,China |
Thickness:: |
0.3-12mm |
OD:: |
6.0-219mm |
Length:: |
18m Max. |
Shape:: |
Round |
Material:: |
Gr2,Gr3,Gr7,G9 |
Brand:: |
Hongbao |
Certificate:: |
DNV,PED |
Origin:: |
Jiangsu,China |
Thickness:: |
0.3-12mm |
OD:: |
6.0-219mm |
Length:: |
18m Max. |
Shape:: |
Round |

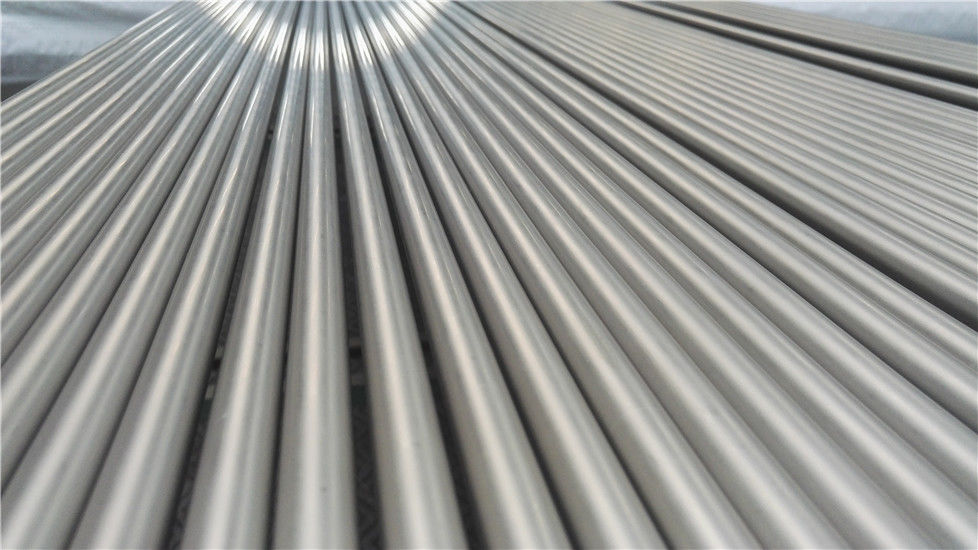

Corrosion Resisting Heat Exchanger Tube , Gr2 Gr9 Seamless Titanium Tube
Description
| Item Name | Heat Exchange Titanium Tubes ASTM B338 Gr1 Ge2 Gr3 Gr7 Gr9 Gr12 Gr16 Seamless Titanium Pipe For Industrial |
| Grade | Gr1,Gr2,Gr3,Gr5,Gr7,Gr9 |
| Standard | ASTM B337,ASTM B338 |
| Specification |
1) OD12.7×0.889×L 2) OD15.88×0.889×L 3) OD19.05×0.55×L 4) OD12.7×0.55×L 5) OD25.4×1.0×L |
| Applications |
(1) Heat exchangers and condensers (2) Corrosive fluid transmission pipeline system (3) Titanium bicycle tube, automobile exhaust pipe (4) Offshore aquaculture |
| Titanium tube for heat exchanger | ||||
| Grade | Diameter(mm) | thickness(mm) | state | standard |
|
GR1 |
>10~15 | 0.5~2.0 | M |
ASTM B338 |
| >15~20 | 0.6~2.5 | M | ||
| >20~30 | 0.6~3.0 | M | ||
| >30~40 | 1.0~3.5 | M | ||
| >40~50 | 1.25~3.5 | M | ||
| >50~60 | 1.5~4.0 | M | ||
| >60~80 | 1.5~4.5 | M | ||
|
GR1 |
16 | 0.5~1.0 | M |
ASTM B338 |
| 19 | 0.5~1.25 | M | ||
| 25,27 | 0.5~1.5 | M | ||
| 31,32,33 | 0.8~2.0 | M | ||
| 38 | 1.5~2.5 | M | ||
| 50,63 | 2.0~2.5 | M | ||
| GR1 GR2 GR3 GR7 GR12 |
6~10 | 0.5~1.25 | M |
ASTM B338 |
| >10~15 | 0.5~1.5 | M | ||
| >15~30 | 0.5~2.0 | M | ||
Stricktly implements the technical specification of ASTM B861/SB861, ASTM B338/ASME SB338.
Titanium Tube/Pipe Features:
Grade:
a) Gr.1(CP titanium, low oxygen)
b) Gr.2(CP titanium, standard oxygen)
c) Gr.7( Ti-Pa, standard oxygen)
d) Gr.9(Ti-3Al-2.5V)
e) Gr.11( Ti-Pa, low oxygen)
f) Gr.12(Ti-Mo-Ni)
g) Gr.16(Ti-Pa,standard oxygen)
h) Gr.17(Ti-Pa,low oxygen)
Sizes: Out Dia.:6.0-219mm
Wall thickness: 0.3-12mm
Length: within 18000mm
Products treatment: Annealed or CWSR
Package:Poly-wooden cases
