Product Details
Place of Origin: Jiangsu, China
Brand Name: Hongbao
Certification: DNV,PED,ISO,TUV,LR
Model Number: HB-TI
Payment & Shipping Terms
Minimum Order Quantity: 200kg
Price: Negotiable
Packaging Details: seaworthy plywooden case packing.
Delivery Time: within 50 days
Payment Terms: D/P, L/C, D/A, L/C, Western Union, MoneyGram
Supply Ability: 800MT/YEAR
Material:: |
Gr1,Gr2,Gr3,Gr7,G9,Gr12 |
Brand:: |
Hongbao |
Certificate:: |
DNV,PED,ISO,TUV,LR |
Origin:: |
Jiangsu,China |
Thickness:: |
0.5-12mm |
OD:: |
6-219mm |
Length:: |
18m Max. |
Shape:: |
Round |
Material:: |
Gr1,Gr2,Gr3,Gr7,G9,Gr12 |
Brand:: |
Hongbao |
Certificate:: |
DNV,PED,ISO,TUV,LR |
Origin:: |
Jiangsu,China |
Thickness:: |
0.5-12mm |
OD:: |
6-219mm |
Length:: |
18m Max. |
Shape:: |
Round |

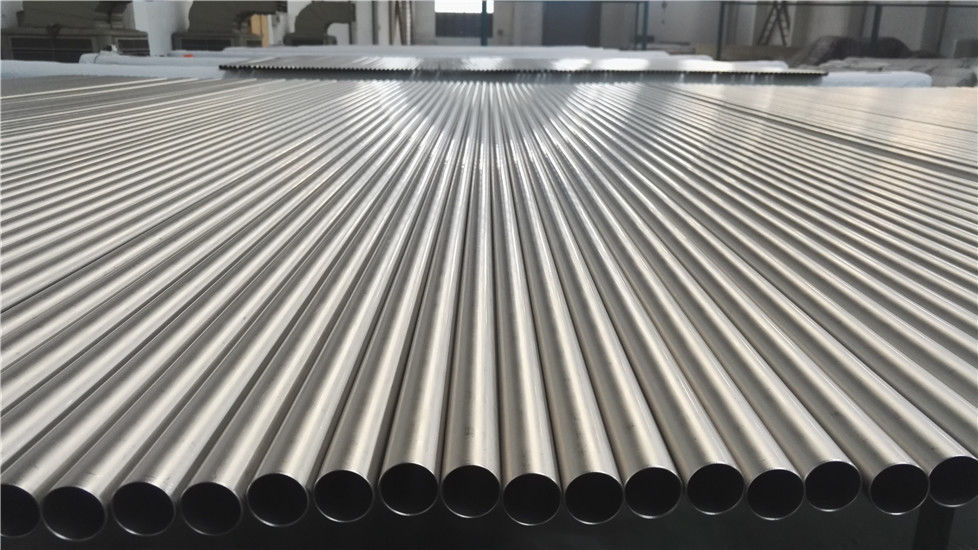

Bright Surface Heat Exchanger Tube , 12mm Thickness Grade 2 Seamless Titanium Tube
The density of titanium is 4.506-4.516g/cm^3, melting point is 1668, boiling point is 3535. Therefore Titanium have low weight, excellent high strength and nonmagnetic festures, low density, excellent corrosion resistance features, high specificate strength and high temperature resistance features, so it is widely used in chemical industry field, medical field, electronics manufacture, mechanical parts field, automobile industry, and aerospace field, etc.
Titanium tubes have the feature of light weight, high strength and superior mechanical properties. Titanium tubes are widely used in heat-exchange equipment, such as tube type heat-exchanger,coiled type heat-exchanger,coil heat-exchanger, condensator,evaporator and transmission pipeline. Many nuclear power industry ues titanium tubes as the unit standard tubes.
Features
1. Low Density and High Specification Strength
2. Excellent Corrosion Resistance
3. Good Resistance to Effect of Heat
4. Excellent Bearing to Cryogenics Property
5. Nonmagnetic and Non-toxic
6. Good Thermal Properties
7. Low Modulus of Elasticity
Titanium tube description:
| Standard |
ASTM B861-05,ASTM B862-05,ASTM B338-06,GB/T3625-2007, GB/T3624-2007,JISH4630-2001,JISH4631-2009,etc |
| Material |
TA1,Gr.1,TP270H,BT1-00,TA2,TP340H,Gr.2,BT1-0,Ti2,TA3,Gr.3, TP480H,Ti3,TA9,Gr.7,TA10,Gr.12,etc |
| Sizes |
Outside diameter:6mm-219mm Wall Thickness:0.5mm-12mm Length:1m-18m |
| Package |
Export standard packaging (including wooden case,plastic cap with both ends, or they can be done as your requirement.) |
| Application |
Because of the titanium excellent corrosion resistance, titanium material widely used in petroleum,chemical,salt,Pharmaceutical, metallurgy,electronic,aviation, aerospace, Marine,etc. |
| Contact |
If you have any question,please feel free to contact us . We are sure your inquiry or requirements will get prompt attention. |
|
Grades |
Available Size (mm) |
Specification |
Feature |
||
| OD | Wall | Length | |||
|
Gr . 1 Gr . 2 Gr . 3 |
5-114 |
0.3-4.5 |
<=18000 |
ASTMB 338 ASMESB 338 ASTMB 861 ASMESB 861 AMS 4942 |
Heat Exchanger ＆Condenser Tubes |
| Gr . 9 | 10-90 | 0.5-4.5 | <=18000 | High Strength Light Weight | |
| Gr . 7 | 5-114 | 0.3-4.5 | <=18000 |
Superior Corrosion Resistant Tubes |
|
| Gr . 12 | 10-114 | 0.5-4.5 | <=18000 | ||
