Product Details
Place of Origin: Jiangsu, China
Brand Name: Hongbao
Certification: DNV,PED,ISO,TUV,LR
Model Number: HB-TI
Payment & Shipping Terms
Minimum Order Quantity: 200kg
Price: Negotiable
Packaging Details: seaworthy plywooden case packing.
Delivery Time: within 50 days
Payment Terms: D/P, L/C, D/A, L/C, Western Union, MoneyGram
Supply Ability: 800MT/YEAR
Material:: |
Gr1,Gr2,Gr3,Gr7,G9,Gr12 |
Brand:: |
Hongbao |
Certificate:: |
DNV,PED,ISO,TUV,LR |
Thickness:: |
0.5-12mm |
OD:: |
6-219mm |
Length:: |
18000mm Max. |
Material:: |
Gr1,Gr2,Gr3,Gr7,G9,Gr12 |
Brand:: |
Hongbao |
Certificate:: |
DNV,PED,ISO,TUV,LR |
Thickness:: |
0.5-12mm |
OD:: |
6-219mm |
Length:: |
18000mm Max. |

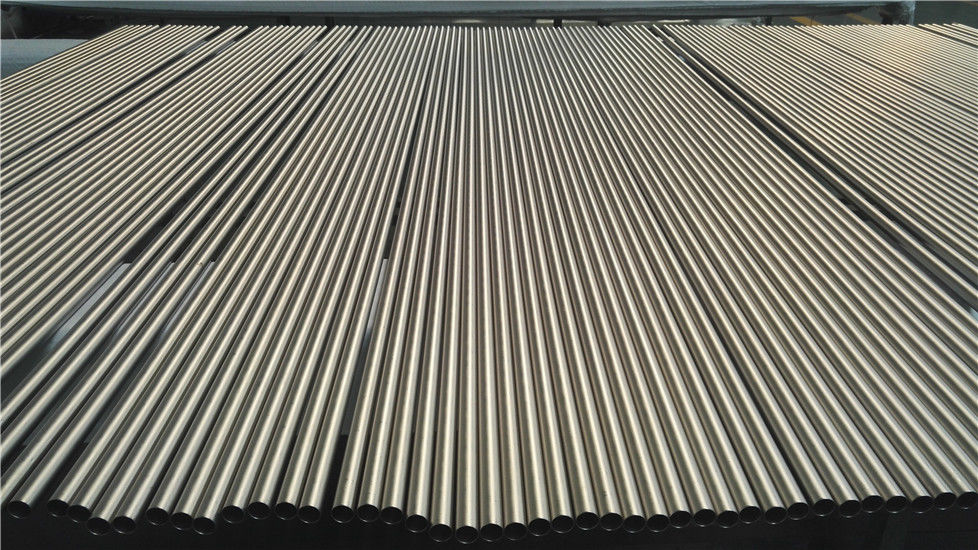

ASTM B861 Gr2 Grade Seamless Pure Titanium Tube Heat Exchanger Tube Round Polished Surface
Description
Specifications: ASTM B338, ASTM B861
CP Ti: Gr1, Gr2Ti Alloys: Gr9, Gr12
Dimension: OD 6mm-219mm x WThk 0.5mm-12mm x Length
Titanium tube:
Gr1, Gr2, Gr3,Gr4 pure titanium
seamless/welded & polished
ASTM B337,B338,B861
ISO 9001:2000, SGS
Titanium tube:
1. ASTM B338, ASTM B337, ASTM B861
Gr1, Gr2, Gr3, Gr4 Gr5, Gr7, Gr9, Gr11, Gr12, Gr19, Gr23
Outer Diameter: 3~219 mm, Wall Thickness: 0.2~12mm
2. Material: CP titanium, titanium alloy
seamless/welded and polished, rolled
Heat exchangers and condensers
All kinds of corrosive fluid transmission pipeline system
Titanium bicycle tubes, automobile exhaust pipe
Offshore aquaculture
Titanium seamless tube is processed by the breakdown of titanium ingot, extruding to titanium tube billet. Then produce titanium tubes to appropriate size with series of processes such as multiple rolling, annealing, pickling, and grinding technology.
Gr5, Gr23 titanium alloy seamless tube
Outer diameter: 6~219mm
Wall thickness: 0.5~12mm
Length: ≤18000mm
Manufacturing process: Drilling, Cold Rolling
Application
Shell and tube heat exchanger, condenser, evaporator, pipeline, etc
Seawater desalination equipment
Bike rack
Marine pressure tube
| ASTM B861 Gr2 Grade Seamless Pure Titanium Tube Heat Exchanger Tube Round Polished Surface | |
| Grade | ASTM Pure Ti: Gr.1 Gr.2 Gr.3 Gr.4 Ti Alloy: Gr.5 Gr.7 Gr.9 Gr.11 JIS Pur Ti: Class 1 Class 2 Class 3 Class 4;Ti Alloy: Class 60 Class 12 Class 61 Class 11 Class 60 E GB Pure Ti:TA1 TA2 TA3 TA4;Ti Alloy: TC4 TA9 TC2 TC4 ELI |
| Standard | ASTM B337, ASTM B338, ASTM B861, ASTM B862 |
| Dimension |
Outer diameter: 6~219mm Wall thickness: 0.5~12mm Length: ≤18000mm |
| Application | Heat exchanger; Condenser; Coiling pipe; petroleum pipeline; Sea farming; electroplating equipment; Fluid Transportation Piping |
| Price term | CIF CNF/CFR FOB Ex-work |
| Color | Polished Surface |
| Processing | Seamless & Welded |
| Technique | Seamless, Cold rolling |
| MOQ | 100KGS |
