Product Details
Place of Origin: Jiangsu, China
Brand Name: Hongbao
Certification: TS16949, ISO9001, OHSAS18001 etc.
Model Number: HB-WT-001
Payment & Shipping Terms
Minimum Order Quantity: 1 ton
Price: Negotiable
Packaging Details: Seaworthy Wooden box, customized Packing
Delivery Time: 30-45 Days
Payment Terms: L/C, T/T
Supply Ability: 60000 MT per Year
Material: |
E355 |
Shape: |
Round |
Application: |
Automotive Part, Hydraulic System, High-precsion Machining,etc. |
Delivery Condition: |
+C, +LC, +SR, +N, +A |
Standard: |
EN10305-2 |
Certificate:: |
TS16949, ISO9001, OHSAS18001 Etc. |
Material: |
E355 |
Shape: |
Round |
Application: |
Automotive Part, Hydraulic System, High-precsion Machining,etc. |
Delivery Condition: |
+C, +LC, +SR, +N, +A |
Standard: |
EN10305-2 |
Certificate:: |
TS16949, ISO9001, OHSAS18001 Etc. |

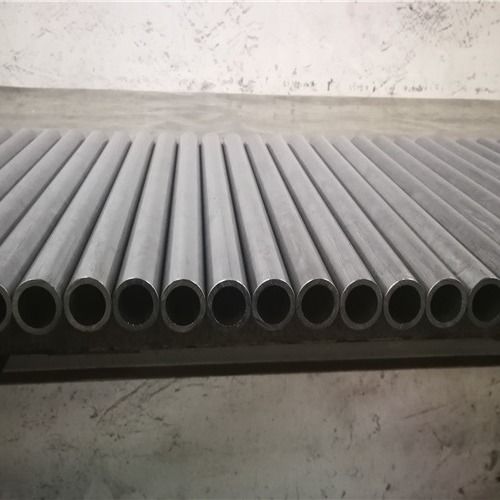

EN10305-2 E355 OD10 Welded Steel Pipe Powerful Welding Strength For Hydraulic System
Description:
Cold drawn welded pipe, it is the production of one of the best choice of the multistage hydraulic cylinder tube, its process and precision seamless steel tube cold drawing process, is to use precision resistance welding (ERW) precision drawing, manufacturing the EN 10305-2 eu mechanical cold drawn steel tube welding standard.
Process:
After welding of resistance welded pipe, the overall pipe body passes through the positive fire to ensure that the weld and heat affected zone are in the same quality as the other parts in the metallographic structure and mechanical properties; Cold drawing and subsequent heat treatment (eliminating internal stress) and steel pipe have good size and mechanical properties.
Main Date:
| Material: | E355 |
| Standard: | EN10305-2 |
| Delivery Condition: | +C, +LC, +SR, +N, +A |
| Size Range: | Outer Diameter:φ6-φ80 Wall Thickness: 0.5-10 |
| Application: | High Precision Steel Tube is Widely Used in Automotive Part, Hydraulic System, High-precsion Machining. |
Produced by cold drawing over mandrel and die on the ERW welded steel tube, to achieve better tolerance and good concentricity, both outside and inside weld seam is completely removed during the cold drawing process.
Advantage (compare with seamless cold drawn tube):
1.Better shape
2.Improved quality surface
3.Tight Excentricity and wall thickness tolerances
4.Good toughness at low temperature
5.USA Market: 90% of the cylinder in the USA market are produced with welded tubes
6.Cost fix Lengths More Cheaper
Chemical Compositions:
| Steel Number | Quality Level | Thickness/mm | Deoxidize Method | C(%)≤ | Si(%)≤ | Mn(%)≤ | P(%)≤ | S(%)≤ |
| E185(Fe310) | 0 | - | - | - | - | - | - | - |
| E235(Fe360) |
A B
C D |
≤16 ＞16-25 ≤40 ＞40
|
N - - E NE NE GF |
0.22 0.17 0.20 0.17 0.20 0.17 0.17 |
- 0.40 0.40 0.40 0.40 0.40 0.40 |
- 1.40 1.40 1.40 1.40 1.40 1.40 |
0.050 0.045 0.045 0.045 0.045 0.040 0.035 |
0.050 0.045 0.045 0.045 0.045 0.040 0.035 |
| E275(Fe430) |
A B C D |
≤40 ＞40 |
- E NE NE GF |
0.24 0.21 0.22 0.20 0.20 |
- 0.40 0.40 0.40 0.40 |
- 1.50 1.50 1.50 1.50 |
0.050 0.045 0.045 0.040 0.035 |
0.050 0.045 0.045 0.040 0.035 |
| E355(Fe510) |
C D |
≤30 ＞30 ≤30 ＞30 |
NE NE GF GF |
0.20 0.22 0.20 0.22 |
0.55 0.55 0.55 0.55 |
1.60 1.60 1.60 1.60 |
0.040 0.040 0.035 0.035 |
0.040 0.040 0.035 0.035 |
Packaging:
In Hexagonal Bundles, with anti-rust oil protection, with seaworthy packing
