Product Details
Place of Origin: China
Brand Name: Hongbao
Certification: TS16949, ISO9001, OHSAS18001 etc.
Model Number: HB-WT-001
Payment & Shipping Terms
Minimum Order Quantity: 1 ton
Price: Negotiable
Packaging Details: Seaworthy wooden box, customized packing
Delivery Time: 30-45 Days
Payment Terms: L/C, T/T
Supply Ability: 60000 MT per Year
Material: |
E355 |
Shape: |
Round |
Application: |
Camshaft |
Delivery Condition: |
+C,+N |
Standard: |
EN10305-2 |
Technique: |
Cold Drawn |
Material: |
E355 |
Shape: |
Round |
Application: |
Camshaft |
Delivery Condition: |
+C,+N |
Standard: |
EN10305-2 |
Technique: |
Cold Drawn |

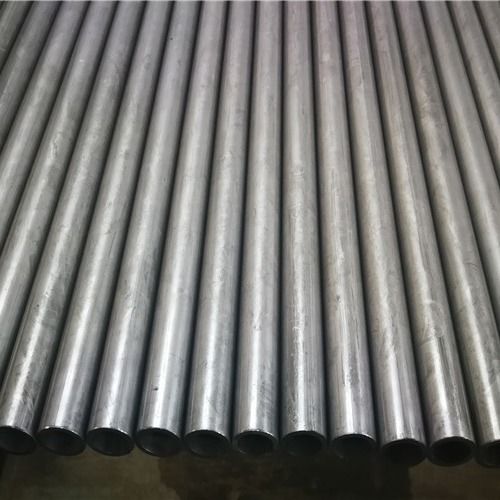

EN10305-2 E355 Welded Carbon Steel Tube for Hydraulic Steel Pipe
Description:
Aviable Material:
E155 E195 E235 E275 E355
Chemical Compositions:
| Steel Number | Quality Level | Thickness/mm | Deoxidize Method | C(%)≤ | Si(%)≤ | Mn(%)≤ | P(%)≤ | S(%)≤ |
| E185(Fe310) | 0 | - | - | - | - | - | - | - |
| E235(Fe360) |
A B
C D |
≤16 ＞16-25 ≤40 ＞40
|
N - - E NE NE GF |
0.22 0.17 0.20 0.17 0.20 0.17 0.17 |
- 0.40 0.40 0.40 0.40 0.40 0.40 |
- 1.40 1.40 1.40 1.40 1.40 1.40 |
0.050 0.045 0.045 0.045 0.045 0.040 0.035 |
0.050 0.045 0.045 0.045 0.045 0.040 0.035 |
| E275(Fe430) |
A B C D |
≤40 ＞40 |
- E NE NE GF |
0.24 0.21 0.22 0.20 0.20 |
- 0.40 0.40 0.40 0.40 |
- 1.50 1.50 1.50 1.50 |
0.050 0.045 0.045 0.040 0.035 |
0.050 0.045 0.045 0.040 0.035 |
| E355(Fe510) |
C D |
≤30 ＞30 ≤30 ＞30 |
NE NE GF GF |
0.20 0.22 0.20 0.22 |
0.55 0.55 0.55 0.55 |
1.60 1.60 1.60 1.60 |
0.040 0.040 0.035 0.035 |
0.040 0.040 0.035 0.035 |
Size Range:
OD: 6-80mm
WT: 0.5-10mm
Deliver Condition:
1) +C No heat treatment after the final cold drawing process
2) +LC After the final heat treatment there is a suitable drawing pass
3) +SR After the final cold drawing process there is a stress relieve heat treatment in a controlled atmosphere
4) +A After the final cold drawing process the tubes are annealed in a controlled atmosphere
5) +N After the final cold drawing operation the tubes are normalized in a controlled atmosphere
