Product Details
Place of Origin: Jiangsu, China
Brand Name: Hongbao
Certification: TS16949,DNV,PED,ISO,TUV,LR
Model Number: HBHST-1
Payment & Shipping Terms
Minimum Order Quantity: 1 ton
Price: Negotiable
Packaging Details: Original packaging according to the customers Export standard package in bundled or as required.
Delivery Time: within 50 days
Supply Ability: 30000MT per year
Brand:: |
Hongbao |
Certificate:: |
TS16949,DNV,PED,ISO,TUV,LR |
Material:: |
ST37.4,ST52.4,E235,E355,26MnB5,34MnB5 |
OD:: |
6-120mm |
Thickness:: |
0.5-15mm |
Length:: |
12000mm Max |
Shape:: |
Round |
Type:: |
Welded Or Seamless |
Brand:: |
Hongbao |
Certificate:: |
TS16949,DNV,PED,ISO,TUV,LR |
Material:: |
ST37.4,ST52.4,E235,E355,26MnB5,34MnB5 |
OD:: |
6-120mm |
Thickness:: |
0.5-15mm |
Length:: |
12000mm Max |
Shape:: |
Round |
Type:: |
Welded Or Seamless |

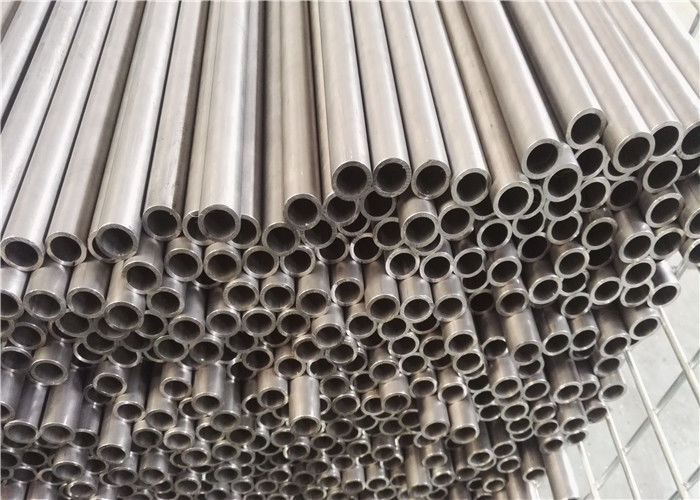

EN10305 E235 E355 Cold Finishing Hollow Steel Round Tube For Car Hydraulic System
Description:
| Delivery conditions |
1. NBK(+N) after cold forming, eventually above phase transition point, in a protective atmosphere of annealing oxidation medium 2. GBK(+A) after cold forming, annealing in non oxidizing medium protective gas 3. BK(+C) the final heat treatment after cold forming, therefore small steel pipe plastic, the plastic degree does not guarantee 4. BKW(+LC) after final heat treatment, a tiny cold drawing deformation, continue again when machining steel pipe allowed inside certain limits cold deformation(bending, flaring) |
Production Process:
Cold rolling by Cold pilger machine and Cold rolling machine
Size: 6-350mm
WT: 1.0-35mm
1. Standard:
EN10305-2 Cold Drawn Precision Seamless Steel Pipes
2. Steel Grade:
E155,E195,E235,E275,E355, other materials upon agreement with customers.
3. Production method:
Cold drawn on the welded steel tubes, to reach high accuracy on the OD and WT tolerance
4. Packing:
In Hexagonal Bundles, with anti-rust oil protection, with seaworthy packing
5. Deliver condition:
1) +C No heat treatment after the final cold drawing process
2) +LC After the final heat treatment there is a suitable drawing pass
3) +SR After the final cold drawing process there is a stress relieve heat treatment in a controlled atmosphere
4) +A After the final cold drawing process the tubes are annealed in a controlled atmosphere
5) +N After the final cold drawing operation the tubes are normalized in a controlled atmosphere
