Product Details
Place of Origin: China
Brand Name: Hongbao
Certification: PED, DNV, LIOYD's, ISO9001, OHSAS18001 etc
Model Number: HB-TI
Payment & Shipping Terms
Minimum Order Quantity: 200kg
Price: Negotiable
Packaging Details: Wooden Case as outside, plastic bag as inside; or as customer required
Delivery Time: 45-60 Days
Supply Ability: 800 MT per Year
Material: |
Gr2,Gr7, Gr9, Gr12, Gr16 |
Size Range: |
OD: 6-219mm；WT: 0.5-22mm |
Delivery Condition: |
Vacuum Annealing |
Application: |
Heat Exchanger And Pressure VesselS, Exhause Pipe System Etc. |
Standard: |
ASTM B338; ASME SB338 |
Keywords: |
Titanium Alloy Tube |
Material: |
Gr2,Gr7, Gr9, Gr12, Gr16 |
Size Range: |
OD: 6-219mm；WT: 0.5-22mm |
Delivery Condition: |
Vacuum Annealing |
Application: |
Heat Exchanger And Pressure VesselS, Exhause Pipe System Etc. |
Standard: |
ASTM B338; ASME SB338 |
Keywords: |
Titanium Alloy Tube |

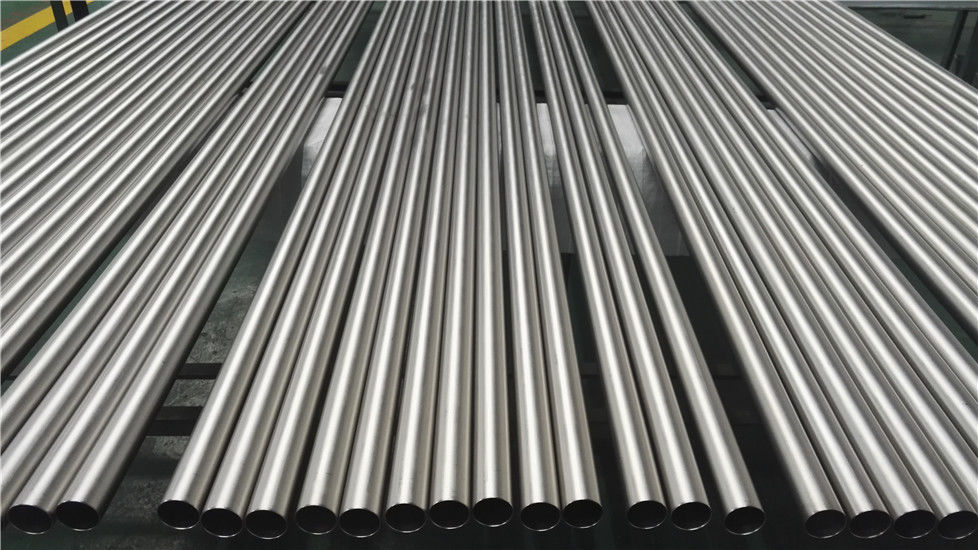

High Strength Cold Finished Seamless Titanium Tube For Thermal Power Engineering
ASTM Grade 2 CP titanium Typical Wire Chemistry
| Ti | N | H | Fe | O | C |
| 99.2 | 0.03 | 0.015 | 0.3 | 0.25 | 0.1 |
Typical Mechanical Properties
|
Modulus of Elasticity |
Yield Strength Mpa |
Tensile Strength Mpa |
Elongation min |
Reduction of Area |
Hardness Brinell Mpa |
| 105 | ≥ 53 | ≥ 240 | ≥ 24 | 35% | ≥ 120 |
Applications: Airframe components, cryogenic vessels, heat exchangers, CPI equipment, condenser tubing, pickling baskets.
Used area:
Heat exchangers and condensers
All kinds of corrosive fluid transmission pipeline system
Titanium bicycle tubes, automobile exhaust pipe
Offshore aquaculture
Final product test:
Ultrasonic test, Eddy current test, Hydraulic test, Bend test, Flaring test and so on.
Some information to products:
-Processing technique: seamless
-The diameter of tube is more than 219mm and the max length is 18000mm
-Own mature technology and professional workers
-Brilliant quality, perfect service, reasonable price offered
-Seamless titanium tube can be used in many different areas.
