Product Details
Place of Origin: China
Brand Name: Hongbao
Certification: TS16949, ISO9001, OHSAS18001 etc.
Model Number: HBPST-1
Payment & Shipping Terms
Minimum Order Quantity: 1 ton
Price: Negotiable
Packaging Details: Seaworthy Wooden box, customized Packing
Delivery Time: 30 Days
Supply Ability: 60000 MT per Year
Shape: |
Round |
Application: |
Automotive Part, Hydraulic System, High-precsion Machining. Etc. |
Payment: |
T/T; L/C |
Sample: |
Free Sample |
Material: |
E235, E355 |
Standard: |
EN10305-1 |
Port: |
Shanghai Port Or As Customer's Requirements |
Trade Term: |
FOB, CIF, EXW |
Shape: |
Round |
Application: |
Automotive Part, Hydraulic System, High-precsion Machining. Etc. |
Payment: |
T/T; L/C |
Sample: |
Free Sample |
Material: |
E235, E355 |
Standard: |
EN10305-1 |
Port: |
Shanghai Port Or As Customer's Requirements |
Trade Term: |
FOB, CIF, EXW |

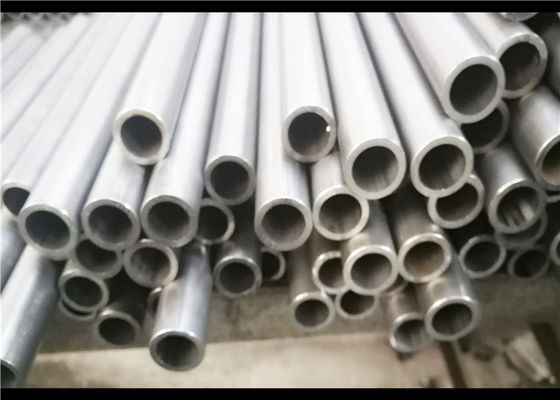

EN10305-1 Precision Seamless Steel Tubes E235 E355 Steel Round Pipe For Automotive Part
Description
Precision seamless steel pipe is a kind of high precision steel pipe after cold rolling or cold drawing. Full name: cold rolling precision seamless steel tube. Because of the precision seamless steel tube inside and outside wall has no oxide layer, under high pressure, no leakage, high precision, high finish, cold bending deformation, flaring, flattening without cracks, etc, it is mainly used to produce pneumatic or hydraulic components products, such as a cylinder or cylinder, are made with seamless tube.
Delivery Condition
BKS(+SR): After the final cold drawing process there is a stress relieve heat treatment in a controlled atmosphere.
NBK(+N): After the final cold drawing operation the tubes are normalized in a controlled atmosphere.
GBK(+A): After the final cold drawing process the tubes are annealed in a controlled atmosphere.
BK(+C): No heat treatment after the final cold drawig process.
BKW(+LC): After the final heat treatment there is a suitable drawing pass.
Main data
Material: E235, E355
OD Range: 4-120mm
WT Range: 0.5-12mm
Standard: EN10305-1
Process: Cold rolling or Cold drawing
Capacity
| NO. | WeldingTypical Specification |
Unit Speed (m/min) |
Working Time (Hour) |
Capacity (Ton) |
Ratio of Total output |
| 1 | Φ34×6 | 18 | 1211 | 11200 | 56% |
| 2 | Φ28×5.2 | 20 | 1522 | ||
| 3 | Φ38×4.5 | 28 | 883 | 5500 | 27.5% |
| 4 | Φ50.8×2.3 | 60 | 114 | 1130 | 5.6% |
| 5 | Φ55×3 | 50 | 190 | 2170 | 10.8% |
| Total | 3920 | 20000 | 100% |
Application
Automotive Part
