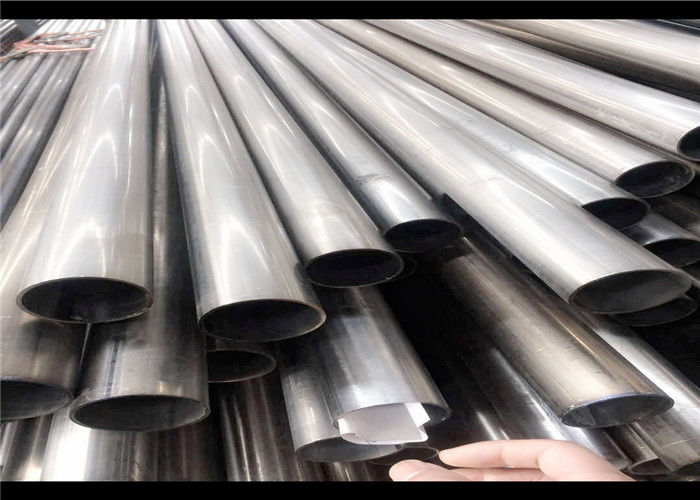

Annealed Thick Wall Steel Tube For Hydraulic / Pneumatic Power System

Place of Origin China
Brand Name Hongbao
Certification TS16949, ISO9001, OHSAS18001 etc.
Model Number HBPST-1
Minimum Order Quantity 1 ton
Price Negotiable
Packaging Details Seaworthy Wooden box, customized Packing
Delivery Time 30 Days
Supply Ability 60000 MT per Year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Delivery Condition +C,+LC,+SR,+N,+A Standard EN10305-1, EN10305-4
Port Shanghai Port Payment T/T; L/C
Trade Term FOB, EXW, CIF Material E235, E355
High Light

precision seamless pipe

,

seamless steel tube

Leave a Message
Product Description

EN10305-1 EN10305-4 Precision Seamless Steel Tubes For Hydraulic Systerm



Standard Statement

EN 10305-1:

2010. Steel tubes for precision applications. Technical delivery conditions. Seamless cold drawn tubes.
EN 10305-4:

2011. Steel tubes for precision applications. Technical delivery conditions. Seamless cold drawn tubes for hydraulic and pneumatic power systems.



Material

Main material: E235,E355

Other aviliable material: 10#,20#,45#,16Mn, ST30Al,ST35, ST37,ST37.4,ST45,ST52,ST52.4,E155,E195,E255, etc

OD: 4-120mm

WT: 0.5-15mm



Delivery Condition

Designation Symbol Description
Cold drawn/ hard +C No heat treatment after the final cold drawig process.
Cold drawn/ soft +LC No heat treatment after the final cold drawig process.
Cold draw and stress relieved +SR After the final cold drawing process there is a stress relieve heat treatment in a controlled atmosphere.
Annealed +A After the final cold drawing process the tubes are annealed in a controlled atmosphere.
Normalized +N After the final cold drawing operation the tubes are normalized in a controlled atmosphere.



Application

Hydraulic system of diesel engine and engineering machinery;

Hydraulic system of locomotive.



Advantage of Precision Seamless Steel Tubes

1. Smaller outer diameters;

2. High precision can be done in small batch production;

3. Cold drawing finished products with high precision and good surface quality.

4. The transverse area of the steel tube is more complicated;

5. Steel pipe performance is superior, metal is more dense.
