Product Details
Place of Origin: China
Brand Name: Hongbao
Certification: TS16949, ISO9001, OHSAS18001 etc.
Model Number: HBPST-1
Payment & Shipping Terms
Minimum Order Quantity: 1 ton
Price: Negotiable
Packaging Details: Seaworthy Wooden box, customized Packing
Delivery Time: 30 Days
Supply Ability: 60000 MT per Year
Application: |
Automotive Part, Hydraulic System, High-precsion Machining. Etc. |
Delivery Condition: |
+C,+LC，+SR，+N，+A |
Standard: |
EN10305-1, EN10305-4 |
Port: |
Shanghai Port |
Payment: |
T/T; L/C |
Trade Term: |
FOB, EXW, CIF |
Application: |
Automotive Part, Hydraulic System, High-precsion Machining. Etc. |
Delivery Condition: |
+C,+LC，+SR，+N，+A |
Standard: |
EN10305-1, EN10305-4 |
Port: |
Shanghai Port |
Payment: |
T/T; L/C |
Trade Term: |
FOB, EXW, CIF |

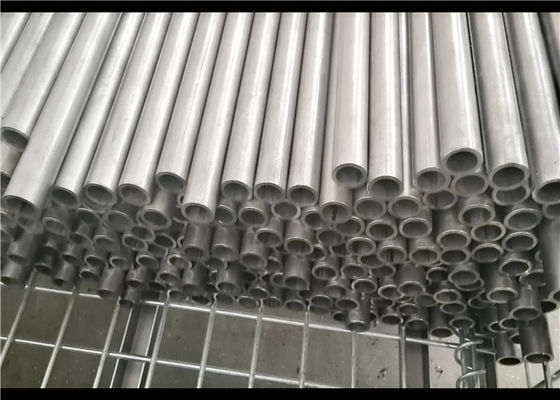

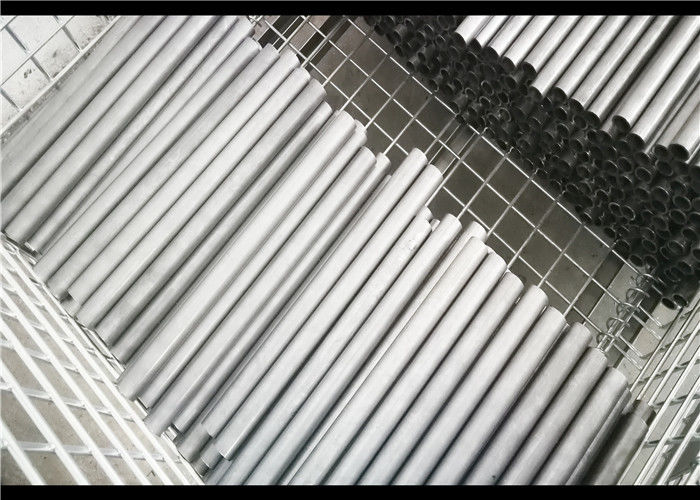

EN10305-1 EN10305-4 Precision Seamless Steel Tubes For Precision Machinery
Standard Statement
Material
Main material: E235,E355,10#,20#,45#,16Mn, ST30Al,ST35, ST37,ST37.4,ST45,ST52,ST52.4,E155,E195,E255, etc
OD: 4-120mm
WT: 0.5-15mm
Standard: EN10305-1, EN10305-4
Advantage of Precision Seamless Steel Tubes
2. High precision can be done in small batch production;
3. Cold drawing finished products with high precision and good surface quality.
4. The transverse area of the steel tube is more complicated;
5. Steel pipe performance is superior, metal is more dense.
Delivery Condition
| Designation | Symbol | Description |
| Cold drawn/ hard | +C | No heat treatment after the final cold drawig process. |
| Cold drawn/ soft | +LC | No heat treatment after the final cold drawig process. |
| Cold draw and stress relieved | +SR | After the final cold drawing process there is a stress relieve heat treatment in a controlled atmosphere. |
| Annealed | +A | After the final cold drawing process the tubes are annealed in a controlled atmosphere. |
| Normalized | +N | After the final cold drawing operation the tubes are normalized in a controlled atmosphere. |
Surface Treatment:
Oil-dip.
