Product Details
Place of Origin: Jiangsu, China
Brand Name: Hongbao
Certification: TS16949,DNV,PED,ISO,TUV,LR
Model Number: HBPST-1
Payment & Shipping Terms
Minimum Order Quantity: 1 ton
Price: Negotiable
Packaging Details: seaworthy plywooden case packing.
Delivery Time: Within 50 days if production
Supply Ability: 30000MT per year
Material:: |
ST37.4,ST52.4,E235,E355,26MnB5,34MnB5 |
Keywords: |
Bright Annealed Tube |
Origin:: |
Jiangsu,China |
OD:: |
6-120mm |
Thickness:: |
0.5-15mm |
Processing:: |
Cold Drawn, Cold Rolled |
Material:: |
ST37.4,ST52.4,E235,E355,26MnB5,34MnB5 |
Keywords: |
Bright Annealed Tube |
Origin:: |
Jiangsu,China |
OD:: |
6-120mm |
Thickness:: |
0.5-15mm |
Processing:: |
Cold Drawn, Cold Rolled |

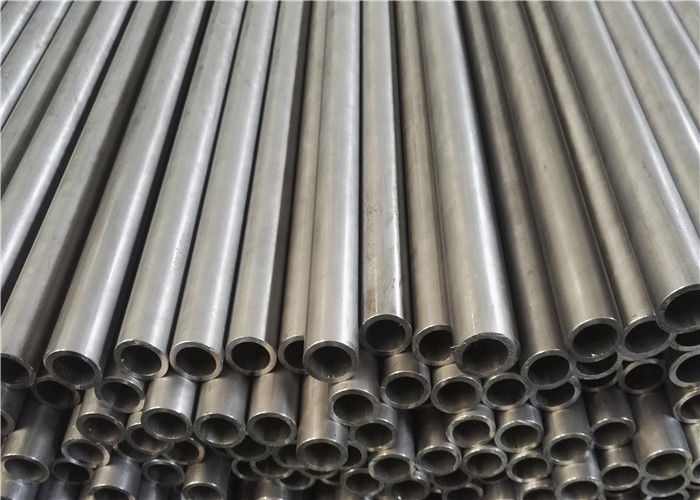

EN10305 Bright Annealed Tube E235 Steel Tube Seamless Carbon Steel Pipe
Description:
Standard: EN 10305-1 CDS Seamless Steel Pipes
Size(mm): O. D.: 6-100mm W. T.: 1-15mm L:5.8 or 6m, maximal 12m
Your special requirement is highly welcomed and will be fulfilled.
We always provide highest quality seamless pipe/tube and best service.
| Steel Grade | Chemical Composition | |||||
| Symbol | Material Number | C max. |
Si max. |
Mn max. |
P max. |
S max. |
| E235 | 1.0308 | 0.17 | 0.35 | 1.20 | 0.025 | 0.025 |
| E255 | 1.0408 | 0.21 | 0.35 | 0.40-1.10 | 0.025 | 0.025 |
| E355 | 1.0580 | 0.22 | 0.55 | 1.60 | 0.025 | 0.025 |
| Steel Grade | +C | +LC | +SR | +A | +N | ||||||||
| Steel Name |
Steel Number |
Rm Mpa |
A % |
Rm Mpa |
A % |
Rm Mpa |
ReH Mpa |
A % |
Rm Mpa |
A % |
Rm Mpa |
ReH Mpa |
A % |
| E235 | 1.0308 | 480 | 6 | 420 | 10 | 420 | 350 | 16 | 315 | 25 | 340-480 | 235 | 25 |
| E255 | 1.0408 | 580 | 5 | 520 | 8 | 520 | 375 | 12 | 390 | 21 | 440-570 | 255 | 21 |
| E355 | 1.0580 | 640 | 4 | 580 | 7 | 580 | 450 | 10 | 450 | 22 | 490-630 | 355 | 22 |
Process: Cold Drawn, Cold Rolled, Hot rolled+Cold Drawn.
Standard: JIS G3445, ASTM A519, DIN 2391, EN 10305-1, EN 10297 etc.
Steel Grade: STKM 11A - STKM 20A, SCM415 -SCM440; ST35, ST37, St45, St52, E195, E235, E355, 30CrMo4, 35CrMo4, SAE 1010, 1020, 1030,1045, 4130, 4140, 8620, 4340, 52100 etc.
Delivery Condition: Cold drawn, Cold rolled, Stress Relieved, Annealed( Bright Annealed, Spheroidize Annealed), Normalized, Quenched and Tempered.
Surface: Black, Smooth, Bright.
