                                                                                                                                                                                                                                                astm b338 3 inch titanium pipe, customizable 3 inch titanium pipe, astm b338 gr2 titanium seamless pipe


Port:	Shanghai Port	Payment:	T/T; L/C
Sample:	Free Sample	Trade Term:	FOB, CIF, EXW
Standard:	ASTM B338; ASTM B861	Material:	Titanium Alloy Or Pure Titanium

Port:	Shanghai Port
Payment:	T/T; L/C
Sample:	Free Sample
Trade Term:	FOB, CIF, EXW
Standard:	ASTM B338; ASTM B861
Material:	Titanium Alloy Or Pure Titanium

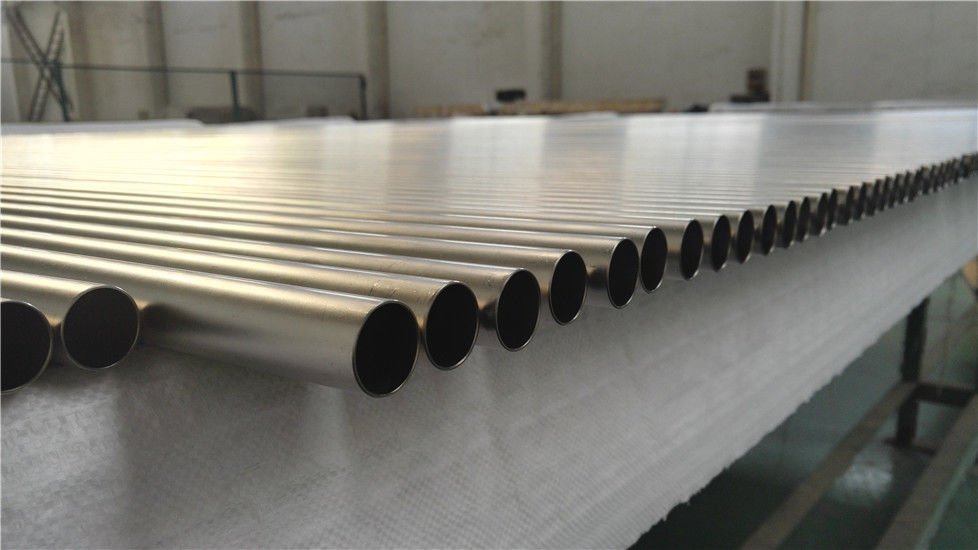

ASTM B338 ASME SB338 Seamless Titanium Tube Titianium Round Pipe

TITANIUM TUBES AND FORGING.pdf

ASTM B338 ASME SB338 Seamless Titanium Tube Titianium Round Pipe

Main Date

Material: Gr1, Gr2, Gr3, Gr7, Gr9, Gr12

Wall Thickness Range: 0.5-22mm

Outer Diameter Range: 6-219mm

Standard: ASTM B338/ ASME SB338

Other Aviliable Standard: ASTM B861/ ASME SB861

Mechanial Property

Grade	Tensile Strength(Mpa)	Yield Strength(Mpa)	Elongation%
Gr1	≥240	138-310	≥24
Gr2A	≥345	275-450	≥20
Gr2H	≥400	275-450	≥20
Gr3A	≥450	380-550	≥18
Gr9D	≥860	≥725	≥10
Gr9A	≥620	≥483	≥15
Gr12	≥483	≥345	≥18

Size Tolerance

Standard	OD Tolerance	WT Tolerance
ASTM B338	＜25.4mm ±0.102mm	±10%
	25.4-38.1mm ±0.127mm
	38.1-50.8mm ±0.152mm
	50.8-63.5mm ±0.178mm
	63.5-88.9mm ±0.254mm

Test:

Flaring test; Flattening test; Hydrostatic test; Mechanial property; ET; UT.

ASTM B338 ASME SB338 Seamless Titanium Tube Titianium Round Pipe
