Product Details
Place of Origin: China
Brand Name: Hongbao
Certification: TS16949, ISO9001, OHSAS18001 etc.
Model Number: HB-WT-001
Payment & Shipping Terms
Minimum Order Quantity: 1 ton
Price: Negotiable
Packaging Details: Seaworthy Wooden box, customized Packing
Delivery Time: 30-45 Days
Supply Ability: 60000 MT per Year
Material: |
E355, E235, 34MnB5, 26MnB5 |
Standard: |
EN10305-2 EN10305-1 DIN |
Port: |
Shanghai Port |
Payment: |
T/T; L/C |
Application: |
Tubes For Auto Part |
Sample: |
Free Sample |
Material: |
E355, E235, 34MnB5, 26MnB5 |
Standard: |
EN10305-2 EN10305-1 DIN |
Port: |
Shanghai Port |
Payment: |
T/T; L/C |
Application: |
Tubes For Auto Part |
Sample: |
Free Sample |

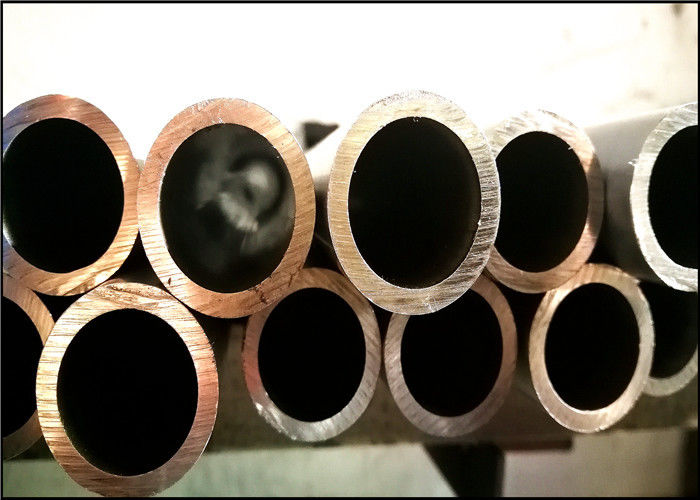

Seamless Or Weld Automotive Steel Tubing Cold Drawn Steel Pipe For Auto Parts
Main Products
Camshaft Tube
Hollow Stabilizer tubes
Product Imformation
Product | Material | OD Range | WT Range |
Camshaft Tube | E235; E355 | 10-50mm | 1.5-8mm |
Hollow Stabilizer | 26MnB5; 34MnB5 | 10-50mm | 1.5-8mm |
Technique: Cold Drawn, Cold Rolling
Support both seamless or weld
Standard: EN10305
Length: According to the requirements.
Other auto part tubes aviliable: Shock absorber tube, transmission shaft. (For more information please send inquire to us)
Other Aviliable Material: E215, E255, C35E, C45E, 50CrVA, SAE1060, SAE1060H, PA12, MT1010, 45#, Gcr15, GCr9SiMn, PA12, 100Cr6
Common Size
OD x WT | OD x WT | OD x WT | OD x WT |
4*0.5 | 16*0.5 | 26*1.8 | 35*9.0 |
4*0.8 | 16*0.8 | 26*2.0 | 35*10 |
4*1.0 | 16*1.0 | 26*2.2 | 38*0.5 |
4*1.2 | 16*1.2 | 26*2.5 | 38*0.8 |
5*0.5 | 16*1.5 | 26*2.8 | 38*1.0 |
5*0.8 | 16*1.8 | 26*3.0 | 38*1.2 |
48*5.0 | 70*2.8 | 90*10 | 130*14 |
48*5.5 | 70*3.0 | 90*12 | 130*16 |
48*6.0 | 70*3.5 | 90*14 | 130*18 |
48*7.0 | 70*4.0 | 90*16 | 140*2.5 |
48*8.0 | 70*4.5 | 95*2.0 | 140*2.8 |
48*9.0 | 70*5.0 | 95*2.2 | 140*3.0 |
Delivery Condition
1) +C No heat treatment after the final cold drawing process
2) +LC After the final heat treatment there is a suitable drawing pass
3) +SR After the final cold drawing process there is a stress relieve heat treatment in a controlled atmosphere
4) +A After the final cold drawing process the tubes are annealed in a controlled atmosphere
5) +N After the final cold drawing operation the tubes are normalized in a controlled atmosphere
Application:
High Precision Steel Tube is Widely Used in
Automobile Parts,Bushing,Sleeving,Fuel Tank;etc.
