Product Details
Place of Origin: China
Brand Name: Hongbao
Certification: PED, DNV, LIOYD's, ISO9001, OHSAS18001 etc
Model Number: HB-TI
Payment & Shipping Terms
Minimum Order Quantity: 200kg
Price: Negotiable
Packaging Details: Wooden Case as outside, plastic bag as inside; or as customer required
Delivery Time: 45-60 Days
Supply Ability: 800 MT per Year
Size Range: |
OD: 6-219mm；WT: 0.5-22mm |
Delivery Condition: |
Vacuum Annealing |
Standard: |
ASTMB338 ASTMB861 |
Keywords: |
Titanium Alloy Tube |
Surface: |
Polish |
Port: |
Shanghai Port |
Size Range: |
OD: 6-219mm；WT: 0.5-22mm |
Delivery Condition: |
Vacuum Annealing |
Standard: |
ASTMB338 ASTMB861 |
Keywords: |
Titanium Alloy Tube |
Surface: |
Polish |
Port: |
Shanghai Port |

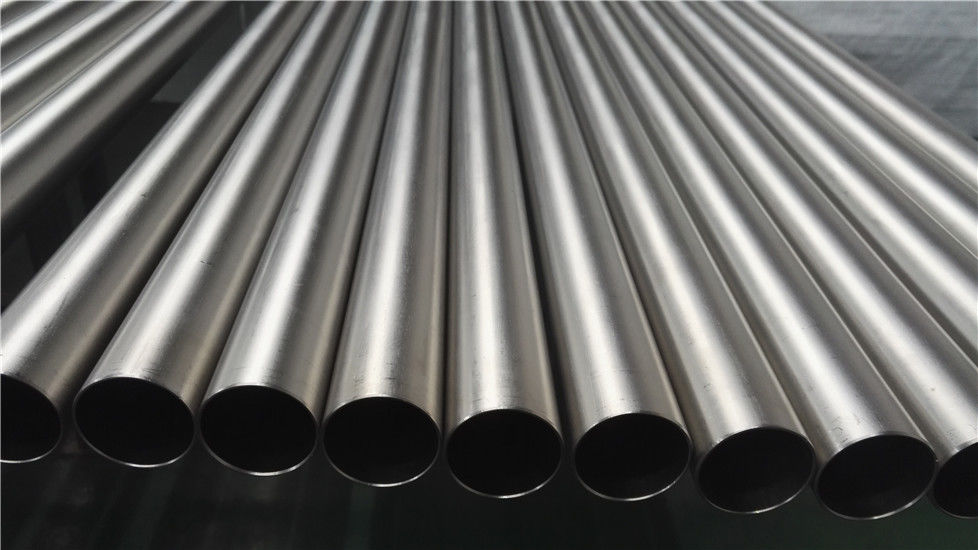

Gr12 Seamless Titanium Pipe ASTMB338 ASTMB861 Titanium Alloy Tube
Main Date
Material: Gr12
Other Aviliable Material: Gr1, Gr2, Gr3, Gr7,Gr12
Wall Thickness Range: 0.5-22mm
Outer Diameter Range: 6-219mm
Standard: ASTM B338; ASTM B861
Description:
The titanium tube is of light weight, high strength and excellent mechanical performance. It is widely used in heat exchange equipment, such as tube heat exchanger, coil heat exchanger, coil heat exchanger, condenser, evaporator and conveying pipe. Many nuclear power industries use titanium tubes as their standard tubes.
Size Tolerance:
| Standard | OD Tolerance | WT Tolerance |
| ASTM B338 | ＜25.4mm ±0.102mm | ±10% |
| 25.4-38.1mm ±0.127mm | ||
| 38.1-50.8mm ±0.152mm | ||
| 50.8-63.5mm ±0.178mm | ||
| 63.5-88.9mm ±0.254mm | ||
| ASTM B861 | 3.2-3.8mm -0.794/+0.397mm | ±12.5% |
| 38-102mm ±0.794mm | ||
| 102-203mm ﹣0.794/+1.588mm |
Delivery Condition:
Annealed
Trade Information
Trade Term: FOB, EXW, CIF etc.
Sample: Free sample but need to pay for the freight.
Payment: 30% T/T in advance, blance before shippment or B/L at sight.
Packaging: Wooden case outside, plastic bag inside.
