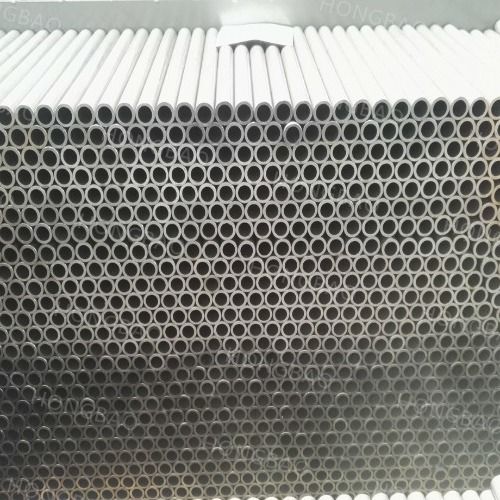

EN10305-2 E355 Precision Camshaft Tube Small Outside Diameter Cold Drawn Welded Pipe

Name: EN10305-2 E355 Precision Camshaft Tube Small Outside Diameter Cold Drawn Welded Pipe
Brand: Jiangsu Hongbao Group Co., Ltd.
SKU: HBWS-001
Price: 22.00 USD
Availability: InStock

Product Details

Place of Origin: Jiangsu, China

Brand Name: Hongbao

Certification: TS16949, ISO9001

Model Number: HBWS-001

Payment & Shipping Terms

Minimum Order Quantity: 2MT

Price: Negotiable

Packaging Details: Packaging: Wooden cases

Delivery Time: Negotiable

Payment Terms: L/C,T/T

Supply Ability: 800MT/Month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                welded steel pipe, cold drawn welded tubes


Material:	26MnB5	Length:	Random Or Fixed Length
Shape:	Round	Technical:	Seamless Or Welded
Delivery Condition:	+C, +N, +SR,+NBK	Standard:	EN10305-1, EN10305-2 Etc
Process:	Cold Drawn, Cold Rolled	Name:	Steel Welded Pipe

Material:	26MnB5
Length:	Random Or Fixed Length
Shape:	Round
Technical:	Seamless Or Welded
Delivery Condition:	+C, +N, +SR,+NBK
Standard:	EN10305-1, EN10305-2 Etc
Process:	Cold Drawn, Cold Rolled
Name:	Steel Welded Pipe

EN10305-2 E355 Precision Camshaft Tube Small Outside Diameter Cold Drawn Welded Pipe

EN10305-2 E355 OD10 Precision Camshaft Tube Small Outside Diameter Welded Pipe

E355 Precision Camshaft Tube Small Outside Diameter Welded Pipe

Description

The E355 precision camshaft tube features small outside diameters, engineered with precision for optimal performance in demanding applications. This welded pipe offers exceptional strength and durability, with its compact exterior diameter ensuring ideal fit for camshaft applications where space is limited. Designed with accuracy and fine craftsmanship, this tube guarantees reliable and efficient operation in high-stress environments, making it a premier choice for critical engine components.

Production Method

The cold drawn welded tube is produced by drawing ERW (electric resistance welded tube). During this process, sizing (wall thickness, inside and outside diameter), weld integrity, and surface finish are closely controlled to produce tube of the required size and mechanical property characteristics.

Main Specifications

Material: E355
Other Available Materials: E155, E195, E235, E275
Outer Diameter Range: 10-50mm
Wall Thickness Range: 1.5-8mm
t/D ≥ 0.2 (Normal: t/D=0.1)
Standard: EN10305-2
Process: Cold Drawn, Cold Rolling

Typical Specification

Grade	Welding Typical Specification	Yield Strength
E355	Φ38×4.5	355~450Mpa

Chemical Composition

Steel Number	Quality Level	Thickness/mm	Deoxidize Method	C(%)≤	Si(%)≤	Mn(%)≤	P(%)≤	S(%)≤
E235(Fe360)	A	≤16	N	0.22	-	-	0.050	0.050
	B	>16-25	-	0.17	0.40	1.40	0.045	0.045
	C	≤40	-	0.20	0.40	1.40	0.045	0.045
	D	>40	E	0.17	0.40	1.40	0.045	0.045
	NE	-	NE	0.20	0.40	1.40	0.040	0.040
	GF	-	GF	0.17	0.40	1.40	0.035	0.035

Yield Strength

Steel Number	Yield Strength/MPa	≤16	>16-40	>40-63	>63-80	>80-100	>100-150	>150-200
E355(Fe510)	C/D	355	345	335	325	315	295	285

Delivery Conditions

+C: No heat treatment after the final cold drawing process
+LC: After the final heat treatment there is a suitable drawing pass
+SR: After the final cold drawing process there is a stress relieve heat treatment in a controlled atmosphere
+A: After the final cold drawing process the tubes are annealed in a controlled atmosphere
+N: After the final cold drawing operation the tubes are normalized in a controlled atmosphere

Advantages (Compared with Seamless Cold Drawn Tube)

Better shape
Improved quality surface
Tight eccentricity and wall thickness tolerances
Tube more safety
Good toughness at low temperature
USA Market: 90% of cylinders in the USA market are produced with welded tubes
Cost fixed lengths more economical

Our Company Advantages

Top class welding line: SG/76 Enhanced High-precise High Frequency Welding Tube Production Line. The tube features small outer diameter (D) and thick wall thickness (t): t/D≥0.2, with high size precision.

Application

Camshaft
