Product Details
Place of Origin: Jiangsu, China
Brand Name: Hongbao
Certification: TS16949, ISO9001
Model Number: HBWS-001
Payment & Shipping Terms
Minimum Order Quantity: 2MT
Price: Negotiable

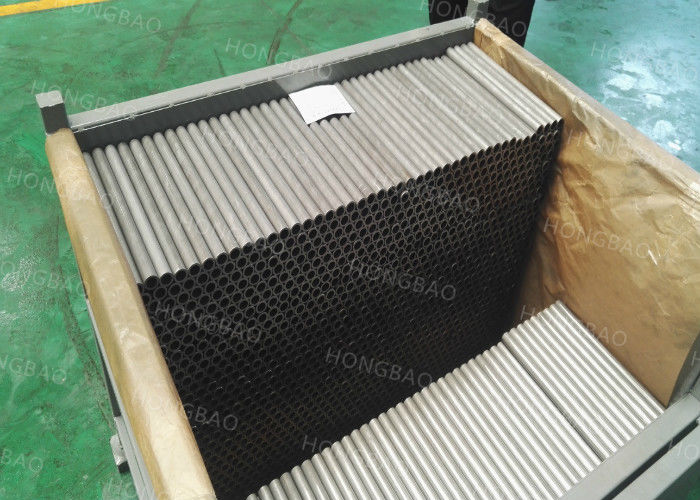

Packaging Details: Packaging: Wooden cases
Delivery Time: Negotiable
Payment Terms: L/C, T/T
Supply Ability: 800MT/Month
Length: |
Random Or Fixed Length |
Shape: |
Round |
Technical: |
Seamless Or Welded |
Delivery Condition: |
+C, +N, +SR,+NBK |
Process: |
Cold Drawn, Cold Rolled |
Name: |
Seamless Steel Tube |
Length: |
Random Or Fixed Length |
Shape: |
Round |
Technical: |
Seamless Or Welded |
Delivery Condition: |
+C, +N, +SR,+NBK |
Process: |
Cold Drawn, Cold Rolled |
Name: |
Seamless Steel Tube |
Description:
Welded precision steel tubes for stabilisers (passenger cars), monobloc drive shafts and gear shafts.
The excellent surface quality of the welded precision steel tubes has a positive effect on the lifetime of the finished products. Due to our innovative furnace technology, we are able to adapt the carbon content of the edge layer to our customers' particular needs.
Seamless precision steel tubes for stabilisers (commercial vehicles), monobloc drive shafts and gear shafts.
| Diameter | Wall thickness | Steel grade | Standard |
| 20 - 60 mm | 1.5 - 7.5 mm | 26MnB5, 34MnB5 |
EN 10305-2 (DIN 2393) |
| Application | Steel grade (example) | Standard |
| Stabiliser | 34MnB5 | EN 10305-1 (DIN 2391) |
| Monobloc shaft | EN 10305-1 (DIN 2391) | EN 10305-1 (DIN 2391) |
| Gear shaft | 16MnCr(S)5, 34MnB5 | EN 10305-1 (DIN 2391) |
Weld-drawn tubes to produce propeller shafts for the automotive industry. As part of processing tubes are partly drawn in at the ends to meet high demands to reshaping properties and the quality of the weld seam. Stringent tolerances in terms of roundness, straightness and wall thickness are necessary to prevent running noise and vibrations. This guarantees smooth propeller shaft operation within the vehicle. The use of cutting-edge air hardening steel materials enable additional options to cut weight.
Requirements:
1.Excellent reshaping properties (drawing in, hammering)
2.High torsional strength and durability
3.Excellent welding properties
4.High levels of geometrical accuracy (eccentricity, roundness)
5.Excellent surface-finish condition
Material properties:
1.High torsional strength and fatigue strength
2.Excellent reshaping properties (drawing in, hammering)
3.Homogeneous strength properties and ductility
4.Excellently suitable for welding
5.Potential to reduce wall thickness
