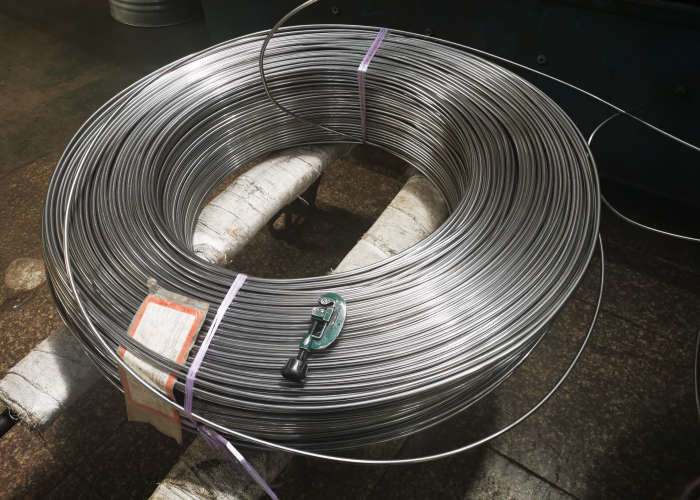

BHG1 Small Od 4mm Wall Thickness 0.5mm Steel Bundy Tube

Place of Origin Jiangsu, China
Brand Name Hongbao
Certification ISO
Model Number BHG1
Minimum Order Quantity 5MT
Price Negotiable
Packaging Details Seaworthy Coil Bundle Packing
Delivery Time 15 working days
Payment Terms T/T, L/C, Western Union, D/A, D/P
Supply Ability 30000MT per year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material BHG1, SPCC, SPCD-SD, SPCD, SPCE Thickness 0.45-1.5mm
Processing ERW Shape Coil
High Light

bhg1 bundy pipe

,

small od 4mm steel bundy tube

,

wall thickness 0.5mm steel bundy tube

Leave a Message
Product Description

BHG1 Welded Low Carbon Steel Tube Small OD4mm Wall Thickness 0.5mm Zinc Coated Salt Spray 240h Bundy Tubes



Description:

1. Main use: widely used in evaporators, refrigerators, automobiles and heaters
2. Features: high intensity, good plasticity, and small resistance
3. Standard: ASTMA254-94
4. Materials: materials can be altered according to customers' requirements
5. Size: 4.7*0.7mm, 6.35*0.7mm,
6. Type: Zinc coating outer side, Cu coating outer side, Cu coating both sides
7. Packing: packed with iron pallet



Application: Refrigerator Condenser, Evaporator Equipment.


Specification: GB/T 24187 Cold-drawn precision single welded steel tubes or as requested.



Material

Type C Si Mn P S
Cold Rollled Low Carbon Steel ≤0.08 ≤0.03 ≤0.30 ≤0.030 ≤0.030
Cold Rolled Ultra-Low Carbon Steel ≤0.008 ≤0.03 ≤0.25 ≤0.020 ≤0.030











Usual Diameter: 4, 4.2, 4.76, 6, 6.35, 7.8,

4-12 could be all available in production.



Usual Thickness: 0.5, 0.65, 0.7,

0.45-1.5 could be all avaliable in production.



Auunal Output: 30000MT



Advantage: Surface coated copper or zinc avaliable, time of salt spray testing reach to 240 hours.

BHG1 Small Od 4mm Wall Thickness 0.5mm Steel Bundy Tube 0
