Product Details
Place of Origin: Jiangsu, China
Brand Name: Hongbao
Certification: ISO
Model Number: BHG1
Payment & Shipping Terms
Minimum Order Quantity: 5MT
Price: Negotiable
Packaging Details: Seaworthy Coil Bundle Packing
Delivery Time: 15 working days
Payment Terms: T/T, L/C, Western Union, D/A, D/P
Supply Ability: 30000MT per year
Material:: |
SPCC, SPCD-SD, SPCD, SPCE |
Thickness:: |
0.45-1.5mm |
Size:: |
4*0.5, 4.2*0.5, 4.76*0.65 |
Shape:: |
Coil |
Material:: |
SPCC, SPCD-SD, SPCD, SPCE |
Thickness:: |
0.45-1.5mm |
Size:: |
4*0.5, 4.2*0.5, 4.76*0.65 |
Shape:: |
Coil |
Single Wall Double Wall Copper Coated Steel Tube Bundy Tube Single Wall Steel Tube
Description:
Bundy tube, sometimes called Bundy pipe, is type of double-walled low-carbon steel tube manufactured by rolling a copper-coated steel strip through 720°F and resistance brazing the overlapped seam in a process called Bundywelding. It may be zinc coated for corrosion protection. It is primarily used in automotive hydraulic brake lines in cars. We can supply any type and diameter of Bundy Tube your requirement calls for.
2. Steel Grade
BHG1, SPCC, SPCD, SPCEN, ST14, ST15, ST16, DC04, DC05, DC06
3. Heat Treatment
BK or NBK
4. Specification
| OD mm | 4 | 4.2 | 4.76 | 6 | 6.35 | 7.8 | 8 | 9.52 |
| W T | 0.5-1.0mm (0.5-0.7mm common WT) | |||||||
| Tolerance | ±0.05mm | |||||||
| Length | 180Kg/coil; 700-1000m/coil; per customer’s request | |||||||
5. Production Process
Tube welding– Cold drawing (reduce diameter)– Annealing in Protected Atmosphere— Cleaning-- Leakage detection– Zinc/Copper Plating– Keep pressure (Airtightness) – Packing
6. Surface Treatment
| Coating | Thickness | Salt spray test duration |
| Copper/White Zinc/Colour-Zinc | 8μm | 72h |
| PVF | 8μm+20μm | 1000-2000h |
| Military Green Zinc | 8μm | 180h |
| GALFAN | 8μm+20μm | 1000-2000h |
| Nylon | 8μm+40μm | 180h |

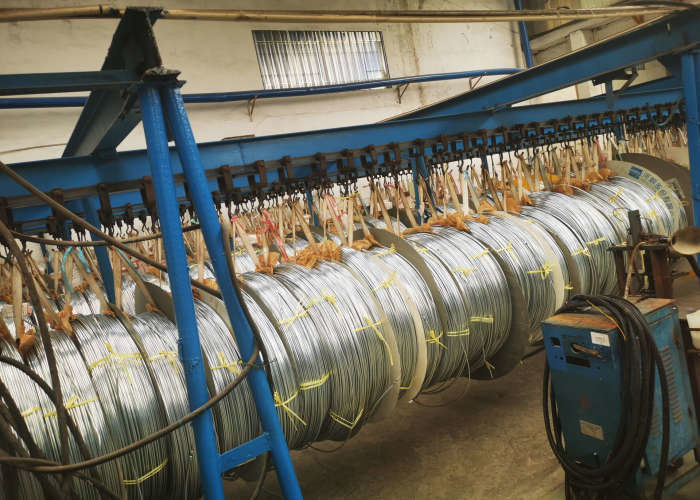

7. Packing: In coil, in wooden box with seaworthy packing
8. Application
Fluid carrying system for automobiles
Fluid carrying system for refrigerators
Wire condenser for chillers, showcase
Vending machine, ice machine etc.
