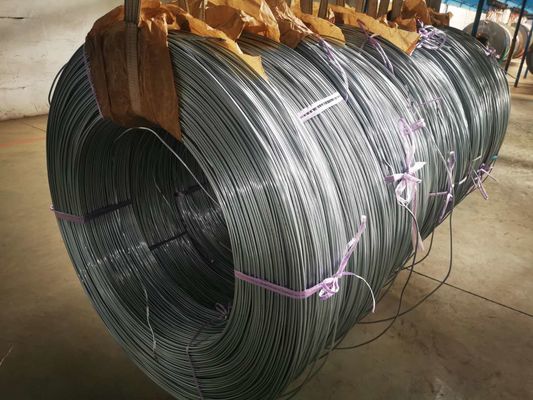

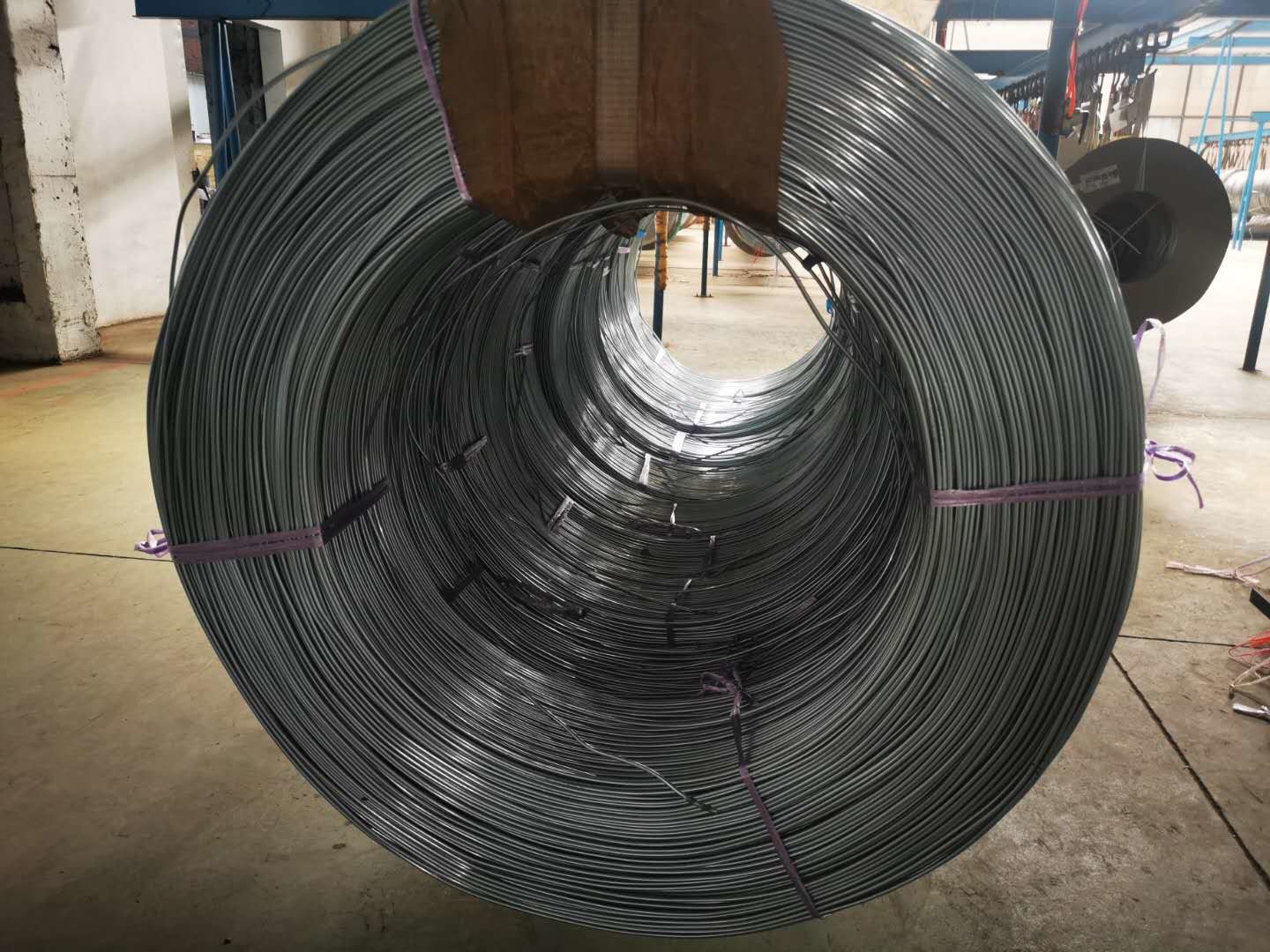

Refrigerator Part 4.76*0.5 Bundy Tube Low Carbon Steel

Place of Origin Jiangsu, China
Brand Name Hongbao
Certification ISO
Model Number BHG1
Minimum Order Quantity 5MT
Price Negotiable
Packaging Details Seaworthy Coil Bundle Packing
Delivery Time 15 working days
Payment Terms T/T, L/C, Western Union, D/A, D/P
Supply Ability 30000MT per year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material SPCC, SPCD-SD, SPCD, SPCE Thickness 0.45-1.5mm
Size 4*0.5, 4.2*0.5, 4.76*0.65 Shape Coil
High Light

refrigerator part steel bundy tube

,

4.76*0.5 bundy tube

,

low carbon steel bundy tube

Leave a Message
Product Description

Refrigerator Part 4.76*0.5 Low Carbon Steel Tube Zinc Coated Steel Bundy Tube



Description:

  1. With smooth surface, the average roughness Ra is 0.6µm≤Ra≤1.9µm
  2. Inner cleanliness is 0.1948/m2 Max.
  3. Various ways of bending and cutting fabrication is possible
  4. Zinc, copper plating is available following customer’s request. The hot galvanizing thickness can be above 8 µm
  5. Clean inner wall with industrial alcohol to guaranty the cleanliness
  6. Salt spray test for hot galvanizing tube is above 72 hours
  7. Packing: antirust paper for inner packing and cloth for outer packing



2. Steel Grade

BHG1, SPCC, SPCD, SPCEN, ST14, ST15, ST16, DC04, DC05, DC06



3. Heat Treatment

BK or NBK



4. Specification

OD mm 4 4.2 4.76 6 6.35 7.8 8 9.52
W T 0.5-1.0mm (0.5-0.7mm common WT)
Tolerance ±0.05mm
Length 180Kg/coil; 700-1000m/coil; per customer’s request



5. Production Process

Tube welding– Cold drawing (reduce diameter)– Annealing in Protected Atmosphere— Cleaning-- Leakage detection– Zinc/Copper Plating– Keep pressure (Airtightness) – Packing



6. Surface Treatment

Coating Thickness Salt spray test duration
Copper/White Zinc/Colour-Zinc 8μm 72h
PVF 8μm+20μm 1000-2000h
Military Green Zinc 8μm 180h
GALFAN 8μm+20μm 1000-2000h
Nylon 8μm+40μm 180h



7. Packing: In coil, in wooden box with seaworthy packing



8. Application

Fluid carrying system for automobiles

Fluid carrying system for refrigerators

Wire condenser for chillers, showcase

Vending machine, ice machine etc.
