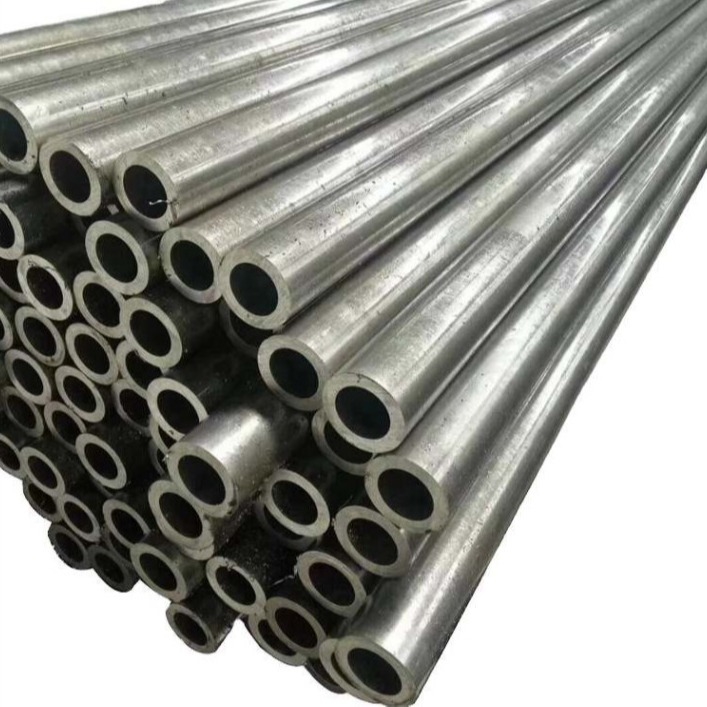

EN10305-1 Nickel White Cold Rolled Hollow Section Round Pipe

  • EN10305-1 Nickel White Cold Rolled Hollow Section Round Pipe
Place of Origin Jiangsu, China
Brand Name Hongbao
Certification TS16949,DNV,PED,ISO,TUV,LR
Model Number HBHST-1
Minimum Order Quantity 1 ton
Price Negotiable
Packaging Details Original packaging according to the customers Export standard package in bundled or as required.
Delivery Time within 50 days
Supply Ability 30000MT per year
Product Details
Brand Hongbao Certificate TS16949,DNV,PED,ISO,TUV,LR
Length 12000mm Max Shape Round
Origin Jiangsu,China Type Welded Or Seamless
High Light

EN10305-1 hollow section pipe

,

Seamless hollow section pipe

,

EN10305-1 hollow round pipe
Leave a Message
Product Description

EN10305 E355 Cold Rolled Pipe Hollow Steel Tube Auto Parts Using Honed Tube



Description:

EN10305-1



Steel Grade Chemical Composition
Symbol Material Number

C

Max.

Si

Max.

Mn

Max.

P

Max.

S

Max.
E155 1.0033 0.11 0.35 0.70 0.025 0.025
E195 1.0034 0.15 0.35 0.70 0.025 0.025
E235 1.0308 0.17 0.35 1.20 0.025 0.025
E275 1.0225 0.21 0.35 1.40 0.025 0.025
E355 1.0580 0.22 0.55 1.60 0.025 0.025





















Treatment after the final cold drawig process
+LC After the final heat treatment there is a suitable drawing pass
+SR After the final cold drawing process there is a stress relieve heat treatment in a controlled atmosphere
+A After the final cold drawing process the tubes are annealed in a controlled atmosphere

+N After the final cold drawing operation the tubes are normalized in a controlled atmosphere
