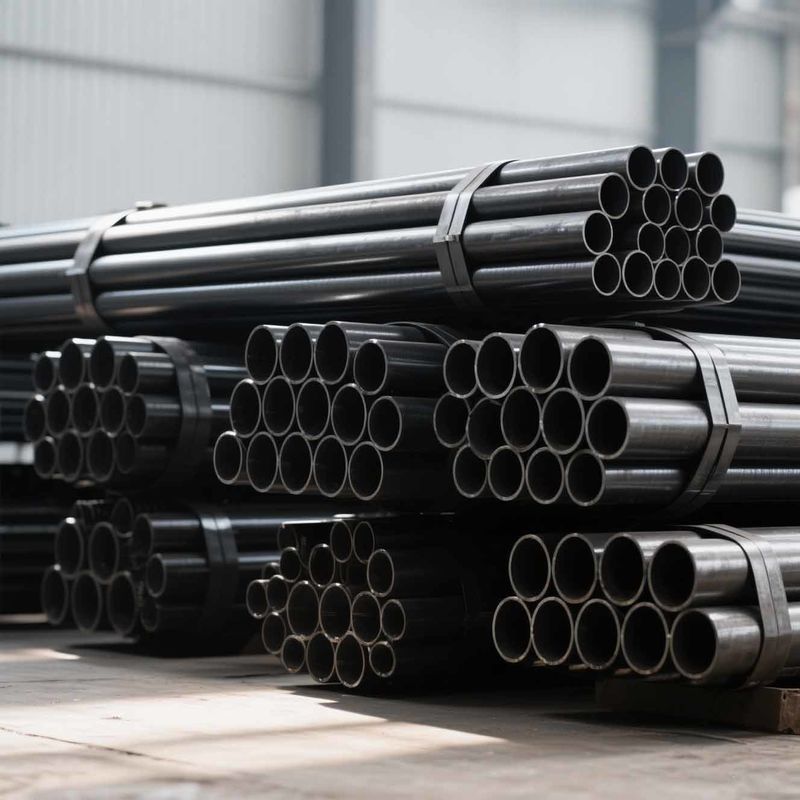

High-Strength Corrosion Resistant Quenched & Tempered Drill Rod Oil Drilling Pipe

Name: High-Strength Corrosion Resistant Quenched & Tempered Drill Rod Oil Drilling Pipe
Brand: Jiangsu Hongbao Group Co., Ltd.
SKU: HG-OP
Price: 22.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: HONGBAO

Certification: PED, ISO9001,DNV

Model Number: HG-OP

Payment & Shipping Terms

Minimum Order Quantity: 1MT

Price: Negotiable

Packaging Details: As required

Delivery Time: Negotiable

Payment Terms: L/C,T/T

Supply Ability: 3000MT/Month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                ASTM A513 oil drilling pipe, 42CrMo4 steel drill rod, oil well pipe microstructure


Steel Grade:	30CrMo, 42CrMo, 30CrMnSiA, 40Mn2, 45MnMoB, 30CrMnSiA, 4135, 1541	Execution Standard:	ASTM A519, DIN2391, EN10305-1, GB/T 9808
OD Range:	30-139.7mm	WT Range:	3-19mm
Processing:	Cold Roll, Cold Drawn	Color:	Black

Steel Grade:	30CrMo, 42CrMo, 30CrMnSiA, 40Mn2, 45MnMoB, 30CrMnSiA, 4135, 1541
Execution Standard:	ASTM A519, DIN2391, EN10305-1, GB/T 9808
OD Range:	30-139.7mm
WT Range:	3-19mm
Processing:	Cold Roll, Cold Drawn
Color:	Black

High-Strength Corrosion Resistant Quenched & Tempered Drill Rod Oil Drilling Pipe

ASTM A513 A519 Drill Rod Oil Drilling Pipe 42CrMo4 Steel Outer Tube with Excellent Microstructure

Product Overview

4140 (42CrMo/42CrMo4) Grade Drilling Pipe - High-Strength Solution for Demanding Oilfield Wells

Engineered for high-pressure, high-load drilling environments, 4140 grade drilling pipe delivers exceptional strength, superior wear resistance, and reliable performance for the toughest oilfield applications.

Key Advantages

Ultimate Strength - Tensile strength ≥950 MPa, yield strength ≥850 MPa for deep wells and high-pressure reservoirs (far exceeding standard grades)
Premium Hardness (28-33 HRC) - Exceptional resistance to abrasion and wear from drill cuttings and hard formations, extending service life
Quenched & Tempered (QT) Process - Delivers balanced strength and toughness, preventing brittle failure under extreme loads
High-Cost Performance - Chromium-molybdenum (Cr-Mo) alloying provides superior fatigue resistance and high-temperature stability vs. standard carbon steels
Proven in Harsh Conditions - Trusted for ultra-deep wells, HPHT wells, and abrasive formations where ordinary pipes fail

Applications

Ideal for: Deep drilling, high-pressure reservoirs, hard rock formations, and heavy-duty operations.

Upgrade from 4130/1541 when extreme strength and wear resistance are required.

Applications include fore poling (advance support), mine blasting, water well drilling, geothermal well drilling, and coal/nonferrous metal mining.

Chemical Composition

Steel Grade	C	Si	Mn	P	S	Cr	Mo	B
4130	0.28-0.33	0.15-0.35	0.40-0.60	≤0.040	≤0.040	0.80-1.10	0.15-0.25
4140	0.38-0.43	0.15-0.35	0.75-1.00	≤0.040	≤0.040	0.80-1.10	0.15-0.25
45MnMoB	0.43-0.48	0.17-0.37	1.05-1.35	≤0.020	≤0.015		0.20-0.25	0.001-0.005
1541	0.36-0.44	-	1.35-1.65	≤0.040	≤0.050
30CrMnSiA	0.28-0.34	0.90-1.20	0.80-1.10	≤0.020	≤0.015	0.80-1.10

Mechanical Properties

Steel Grade	Deliver Condition	Tensile Strength (Mpa)	Yield Strength (Mpa)	Elongation (%)	Hardness (HRC)
4130	+ SR	≥813	≥690	≥15%	≥24
4140	QT	≥950	≥850	≥14%	28 - 33
45MnMoB	+ N	≥790	≥600	≥14%	-
1541	+ SR	≥813	≥690	≥15%	≥24
30CrMnSiA	QT	≥850	≥750	≥14%	26 - 31

Delivery Conditions

Stress Relief Annealing after Cold Working (+SR) (BKS)
Normalizing (+N) (NBK)
Quenching & Tempering (QT)

Frequently Asked Questions

1. Can you provide a sample to check the quality?

We can provide free sample with same or similar sizes for you to check tube quality. You need to in charge of Express costs.

2. How about your production capacity?

3000 tons/Month.

3. What are your terms of payment?

30%TT in advance, Balance to be paid before shipment.

4. Where is your factory?

Zhangjiagang city, 1.5 hours away from Shanghai.

5. How can I get the quotation A.S.A.P?

Please send us an inquiry with full details as following, quotation will sent to you A.S.A.P:

Tube Standard
Steel Grade
Tube Size and Size Tolerance
Tube length
Quantity
If any special requirements

6. How about the minimum order quantity?

Normally for one size above 1 ton.

Welcome to contact us! Thanks.
