Gr 4130 114mm OD Oil Drilling Pipe Chromoly Steel Tube for Seamless Casing Tubing

Name: Gr 4130 114mm OD Oil Drilling Pipe Chromoly Steel Tube for Seamless Casing Tubing
Brand: Jiangsu Hongbao Group Co., Ltd.
SKU: HG-OWD1
Price: 22.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: HONGBAO

Certification: ISO9001

Model Number: HG-OWD1

Payment & Shipping Terms

Minimum Order Quantity: 1 Ton

Price: Negotiable

Packaging Details: Plywood case

Delivery Time: 45 - 60 days

Payment Terms: L/C,T/T

Supply Ability: 3000T/Month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                chromoly steel oil drilling pipe, 114 OD casing tubing pipe, Gr 4130 oil drilling tube


Material:	30CrMo（4130/34CrMo4）, 42CrMo（4140/42CrMo4）	Standard:	GB/T 9808, ASTM A519, DIN2391, EN10305-1
OD Range:	4-219mm	WT Range:	0.5-20mm
Processing:	Cold Drawn

Material:	30CrMo（4130/34CrMo4）, 42CrMo（4140/42CrMo4）
Standard:	GB/T 9808, ASTM A519, DIN2391, EN10305-1
OD Range:	4-219mm
WT Range:	0.5-20mm
Processing:	Cold Drawn

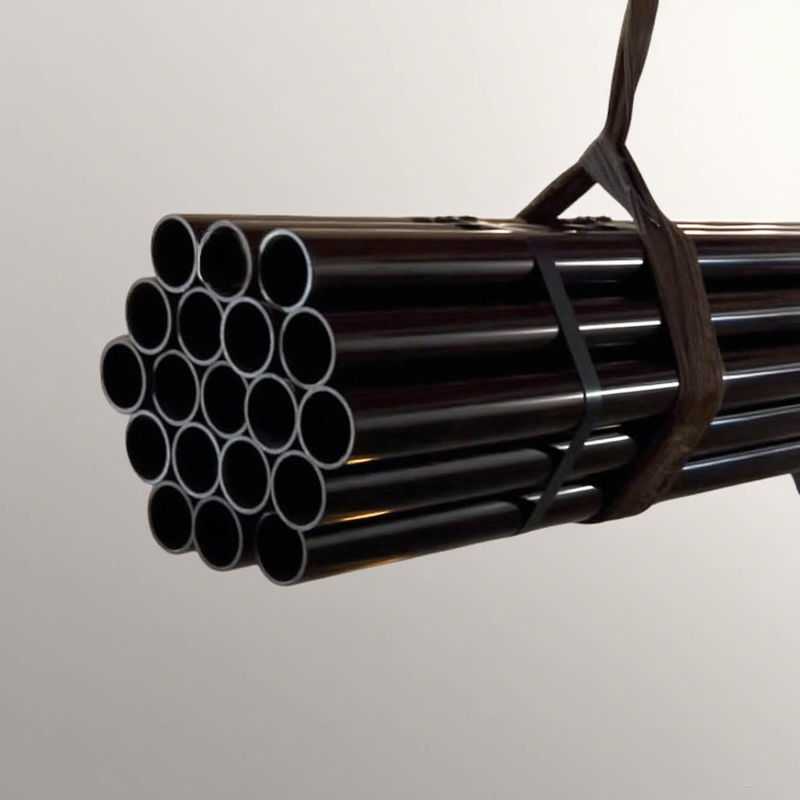

Gr 4130 114mm OD Oil Drilling Pipe Chromoly Steel Tube for Seamless Casing Tubing

Gr 4130 OD 114 Oil Drilling Pipe Chromoly Steel Tube for Casing Tubing

Product Overview

This Gr 4130 OD 114mm Oil Drilling Pipe represents a high-performance chromoly steel tube specifically engineered for demanding casing and tubing applications in the oil and gas industry. Manufactured from AISI 4130 chromium-molybdenum alloy steel with a precise 114mm outer diameter, this seamless pipe delivers exceptional mechanical properties and reliability for critical downhole operations in both conventional and challenging drilling environments.

The pipe's chromium-molybdenum composition provides an optimal balance of high tensile strength, excellent toughness, and superior fatigue resistance, significantly outperforming conventional carbon steel pipes in demanding drilling applications. With typical yield strengths ranging from 550 MPa to 750 MPa, this material maintains its structural integrity under extreme torsional stresses, compression loads, and cyclic bending moments encountered during drilling and production operations.

The seamless manufacturing process guarantees a homogeneous microstructure free from welds and imperfections, providing consistent mechanical properties throughout the pipe length. This chromoly drill pipe undergoes precise heat treatment including quenching and tempering to achieve optimal mechanical characteristics, including improved impact resistance and enhanced fatigue life compared to standard drilling materials.

Specifications

Specifications	Details
Standards	ASTM, ASME and API
Size	O.D.: 4 to 219mm W. T.: 0.5 to 20mm
Specialized in	Large Diameter Size
Length	Within 13500mm
Type	Seamless
Shape	Round
End	Plain End, Beveled End, Threaded

Chemical Composition

Steel Grade	C	Si	Mn	P	S	Cr	Mo
4130	0.28-0.33	0.15-0.35	0.40-0.60	≤0.040	≤0.040	0.80-1.10	0.15-0.25
4140	0.38-0.43	0.15-0.35	0.75-1.00	≤0.040	≤0.040	0.80-1.10	0.15-0.25

Mechanical Properties

Steel Grade	Deliver Condition	Tensile Strength (MPa)	Yield Strength (MPa)	Elongation (%)	Hardness (HRC)
4130	+ SR	≥813	≥690	≥15%	≥24
4140	QT	≥950	≥850	≥14%	28 - 33

Key Features and Benefits

Superior Mechanical Properties: High yield strength (550-950 MPa) and excellent impact toughness
Enhanced Collapse Resistance: Heavy-wall design withstands extreme formation pressures
Improved Fatigue Performance: Excellent resistance to cyclic loading and vibration stresses
Multiple Grade Options: Tailored material selection for specific well conditions
Seamless Construction: Homogeneous microstructure without weld defects

Quality Assurance

Full material traceability and certification
Ultrasonic testing for defect detection
Hydrostatic pressure testing
Dimensional and visual inspection
Mechanical property verification
Hardness testing throughout length
