Gr9 Seamless Titanium Tube ASTM B338 Light Weight for Industrial Applications

Name: Gr9 Seamless Titanium Tube ASTM B338 Light Weight for Industrial Applications
Brand: Jiangsu Hongbao Group Co., Ltd.
SKU: HB-TI
Price: 22.00 USD
Availability: InStock

Product Details

Place of Origin: Jiangsu, China

Brand Name: Hongbao

Certification: DNV,PED,ISO,TUV,LR

Model Number: HB-TI

Payment & Shipping Terms

Minimum Order Quantity: 200kg

Price: Negotiable

Packaging Details: seaworthy plywooden case packing.

Delivery Time: within 50 days

Payment Terms: D/P,L/C,D/A,L/C,Western Union

Supply Ability: 800MT/YEAR

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                seamless titanium tube Gr9, Gr9 titanium tubing, titanium tube with warranty


Material::	Gr1,Gr2,Gr3,Gr7,G9,Gr12	Certificate::	DNV,PED,ISO,TUV,LR
Thickness::	0.4-10mm	OD::	10-114mm
Length::	100-15000mm	Shape::	Round

Material::	Gr1,Gr2,Gr3,Gr7,G9,Gr12
Certificate::	DNV,PED,ISO,TUV,LR
Thickness::	0.4-10mm
OD::	10-114mm
Length::	100-15000mm
Shape::	Round

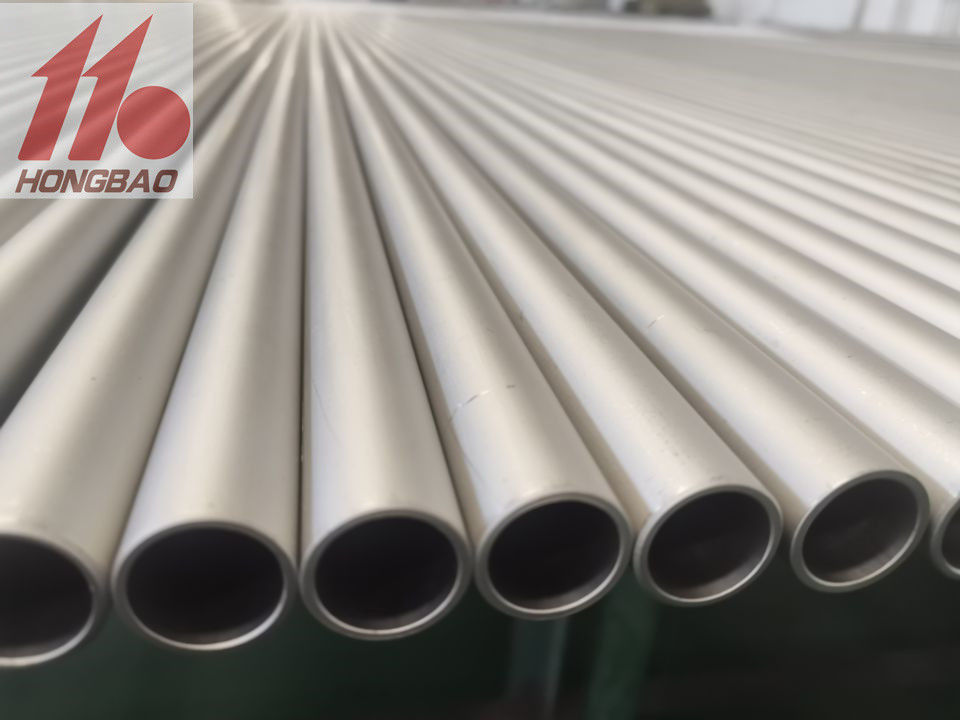

Gr9 Seamless Titanium Tube ASTM B338 Light Weight for Industrial Applications

Gr9 Seamless Titanium Tube

Low Price 3.1 Certificate Gr9 Seamless Titanium Tube Standard ASTM B338 ASTM B861 ASME SB338 ASME SB861

Product Description

Titanium tubes are the ninth most abundant element in the earth's crust and the seventh most abundant metal. Its low density, slightly over half that of steel, and its high strength combination is the reason for the metals growing preference in both military and commercial aircraft. The alloying of titanium tubing with elements such as aluminum and vanadium increase the strength of titanium while at the same time retains its weight advantage over steel.

Titanium is classified in two categories, commercially pure and alloys with additives such as aluminum and vanadium. We are a titanium tubing manufacturer and supplier, and our inventories consist of both types and cover both seamless and welded methods of manufacture.

Titanium Tube for Industrial Applications

Marine Industry
Chemical and petrochemical industry
Pulp and paper industry
Sporting goods - golf shafts, bicycle frames, etc.
Medical industry
Nuclear industry

Product Specifications

Standard	ASTM B337, ASTM B338, ASTM B861, ASTM B862
Grade	Gr1, Gr2, Gr7, Gr9, Gr12
Dimension	ODWTL (10-114)(0.4-10)(100-15000)mm
Manufacturing Method	Cold rolled
Condition	Annealed(M)
Features	Light weight, excellent corrosion resistivity, strongly heat-resistance, high strength
Inspection	Ultrasonic testing, Hydrostatic testing, Flattening testing, visual surface inspection, Dimensional inspection, tensile properties inspection and Chemical elements analysis

Basic Tension Data

Grade	Tensile Strength, min	Yield Strength 0.2% offset Yield	Elongation in 2in or 50mm Min%
1	35 Ksi / 240 Mpa	20-45 Ksi / 138-310 Mpa	24
2	50 Ksi / 345 Mpa	40-65 Ksi / 275-450 Mpa	20
7	50 Ksi / 345 Mpa	40-65 Ksi / 275-450 Mpa	20
9A	125 Ksi / 860 Mpa	105 Ksi / 725 Mpa	10
9B	90 Ksi / 620 Mpa	70 Ksi / 483 Mpa	15
12	70 Ksi / 483 Mpa	50 Ksi / 345 Mpa	18

A. Properties for cold-worked and stress-relieved B. Annealed. C. Solution treated

Chemical Composition of Material

Grade 1 - Unalloyed titanium
Grade 2 - Unalloyed titanium
Grade 7 - Unalloyed titanium plus 0.12 to 0.25% palladium
Grade 9 - Titanium alloy (3% aluminum, 2.35% vanadium)
Grade 12 - Titanium alloy (0.3% molybdenum, 0.8% nickel)

Size Tolerance

Standard	OD Tolerance	WT Tolerance
ASTM B338	<25.4mm, ±0.102mm	±10%
	24.4-38.1mm ±0.127mm
	38.1-50.8mm ±0.152mm
	50.8-63.5mm ±0.178mm
	60.3-88.9mm ±0.254mm
ASTM B861	3.2-3.8mm -0.794/+0.397mm	±12.5%
	38-102mm ±0.794mm
	102-203mm 0.794/+1.588mm
