Gr9 Seamless Titanium Alloy Tube with High Strength-to-Weight Ratio and Superior Corrosion Resistance

Name: Gr9 Seamless Titanium Alloy Tube with High Strength-to-Weight Ratio and Superior Corrosion Resistance
Brand: Jiangsu Hongbao Group Co., Ltd.
SKU: HB-TI
Price: 22.00 USD
Availability: InStock

Product Details

Place of Origin: Jiangsu, China

Brand Name: Hongbao

Certification: DNV,PED,ISO,TUV,LR

Model Number: HB-TI

Payment & Shipping Terms

Minimum Order Quantity: 200kg

Price: Negotiable

Packaging Details: seaworthy plywooden case packing.

Delivery Time: within 50 days

Payment Terms: D/P,L/C,D/A,L/C,Western Union

Supply Ability: 800MT/YEAR

Get Best Price

Product Details

Product Description

Highlight:

Material::	Gr1,Gr2,Gr3,Gr7,Gr9,Gr12	Certificate::	DNV,PED,ISO,TUV,LR
Thickness::	0.4-10mm	OD::	10-114mm
Length::	100-15000mm	Shape::	Round

Material::	Gr1,Gr2,Gr3,Gr7,Gr9,Gr12
Certificate::	DNV,PED,ISO,TUV,LR
Thickness::	0.4-10mm
OD::	10-114mm
Length::	100-15000mm
Shape::	Round

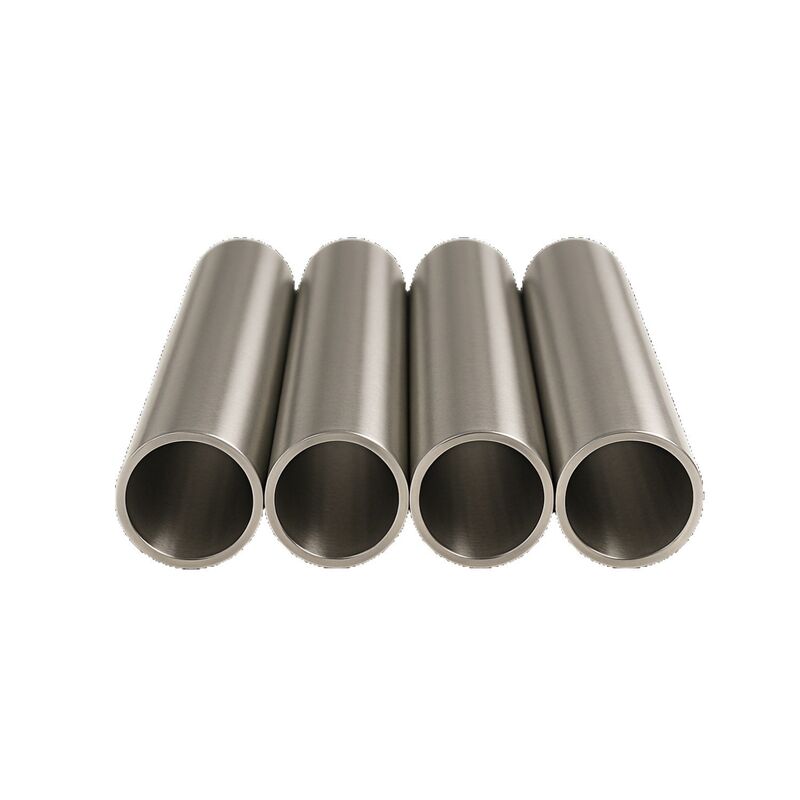

Gr9 Seamless Titanium Alloy Tube with High Strength-to-Weight Ratio and Superior Corrosion Resistance

GR9 Seamless Titanium Alloy Tube

The Gr9 (Ti-3Al-2.5V) Seamless Titanium Tube is a high-performance, precision-engineered component designed for demanding applications where strength, weight, and corrosion resistance are critical. Manufactured without any welded seams, it offers superior structural integrity and reliability.

Key Features & Advantages

Exceptional Strength-to-Weight Ratio: Significantly lighter than steel with comparable strength, enabling weight savings and improved efficiency in moving structures.
Superior Corrosion Resistance: Excellent resistance to a wide range of corrosive environments, including seawater, chlorides, and many chemicals, ensuring long service life and reduced maintenance.
High Structural Integrity: The seamless manufacturing process eliminates weld seams, providing uniform grain structure, enhanced pressure capability, and improved fatigue resistance.
Good Weldability and Formability: Gr9 alloy offers favorable fabrication characteristics for complex system integrations.
Wide Service Temperature Range: Maintains performance in both cryogenic and moderately elevated temperature environments.

Primary Applications

Aerospace: Hydraulic systems, fuel lines, airframe components, and engine parts.
Marine & Offshore: Heat exchangers, seawater piping systems, and subsea equipment.
Chemical Processing: Equipment for handling corrosive fluids and high-purity processes.
Medical: Surgical instruments and implants where biocompatibility is essential.
High-Performance Automotive: Exhaust systems and lightweight structural components.

Ideal for engineers seeking a reliable, lightweight, and durable tubing solution for critical fluid transfer and structural applications.

Product Specifications

Standard	ASTM B337, ASTM B338, ASTM B861, ASTM B862
Grade	Gr1, Gr2, Gr7, Gr9, Gr12
Dimension	ODWTL (10-114)(0.4-10)(100-15000)mm
Manufacturing Method	Cold rolled
Condition	Annealed(M)
Features	Light weight, excellent corrosion resistivity, strongly heat-resistance, high strength
Inspection	Ultrasonic testing, Hydrostatic testing, Flattening testing, visual surface inspection, Dimensional inspection, tensile properties inspection and Chemical elements analysis

Basic Tension Data

Grade	Tensile Strength, min	Yield Strength 0.2% offset	Elongation in 2in or 50mm Min%
	Ksi	MPa	Ksi	MPa	Ksi	MPa
1	35	240	20	138	45	310	24
2	50	345	40	275	65	450	20
7	50	345	40	275	65	450	20
9A	125	860	105	725	/	/	10
9B	90	620	70	483	/	/	15c
12	70	483	50	345	/	/	18c

A. Properties for cold-worked and stress-relieved B. Annealed. C. Solution treated

Chemical Composition of Material

Grade 1: Unalloyed titanium
Grade 2: Unalloyed titanium
Grade 7: Unalloyed titanium plus 0.12 to 0.25% palladium
Grade 9: Titanium alloy (3% aluminum, 2.5% vanadium)
Grade 12: Titanium alloy (0.3% molybdenum, 0.8% nickel)

Size Tolerance

Standard	OD Tolerance	WT Tolerance
ASTM B338	<25.4mm, ±0.102mm 24.4-38.1mm ±0.127mm 38.1-50.8mm ±0.152mm 50.8-63.5mm ±0.178mm 60.3-88.9mm ±0.254mm	±10%
ASTM B861	3.2-3.8mm -0.794/+0.397mm 38-102mm ±0.794mm 102-203mm 0.794/+1.588mm	±12.5%
