EN10305 E355 WT0.5 Cold Rolled Precision Steel Tube Seamless Carbon Steel Pipe Corrosion Resistant for Auto Parts

Name: EN10305 E355 WT0.5 Cold Rolled Precision Steel Tube Seamless Carbon Steel Pipe Corrosion Resistant for Auto Parts
Brand: Jiangsu Hongbao Group Co., Ltd.
SKU: HBPST-1
Price: 22.00 USD
Availability: InStock

Product Details

Place of Origin: Jiangsu, China

Brand Name: Hongbao

Certification: TS16949, DNV, PED, ISO, TUV, LR

Model Number: HBPST-1

Payment & Shipping Terms

Minimum Order Quantity: 1 ton

Price: Negotiable

Packaging Details: Seaworthy plywooden case

Delivery Time: Within 50 days if production

Payment Terms: L/C,T/T

Supply Ability: 30000MT per year

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                Cold Rolled Seamless Precision Steel Tube, En10305 Precision Steel Tube, Aisi 1045 Precision Steel Tube


Material:	E235, E355	Certificate:	TS16949, DNV, PED, ISO, TUV, LR
OD:	6-120mm	Thickness:	0.5-15mm
Type:	Welded Or Seamless	Processing:	Cold Drawn, Cold Rolled

Material:	E235, E355
Certificate:	TS16949, DNV, PED, ISO, TUV, LR
OD:	6-120mm
Thickness:	0.5-15mm
Type:	Welded Or Seamless
Processing:	Cold Drawn, Cold Rolled

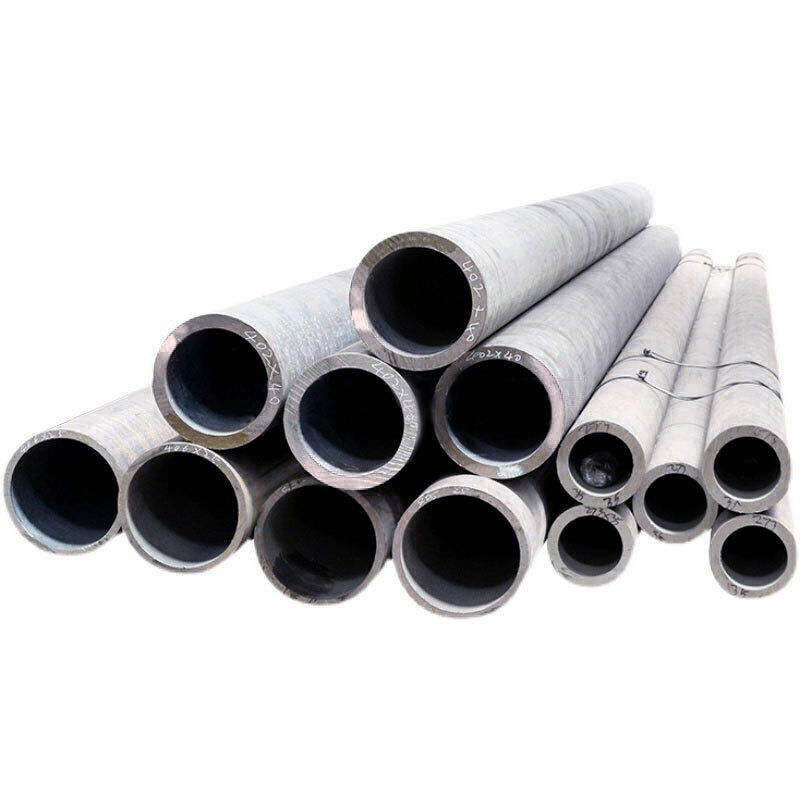

EN10305 E355 WT0.5 Cold Rolled Precision Steel Tube Seamless Carbon Steel Pipe Corrosion Resistant for Auto Parts

EN10305 E355 WT0.5 Cold Rolled Precision Steel Tube

Seamless Carbon Steel Pipe For Auto Parts

EN10305 E355 WT0.5 cold rolled precision steel tubes are high-quality seamless carbon steel pipes designed for demanding applications. Manufactured to stringent standards, these tubes feature a nominal wall thickness of 0.5 mm, ensuring lightweight yet robust construction. Characterized by exceptional dimensional accuracy and surface finish, they provide superior mechanical properties, including high tensile strength and excellent fatigue resistance. Ideal for automotive and structural applications, these tubes are also highly resistant to corrosion. Their precision engineering allows for reliable performance in various environments, making them a preferred choice for industries requiring durable and efficient piping solutions.

Material Standards

Standard	Material Grades
ASTM A519 Standard	MT1010, MT1020, 1008, 1010, 1018, 1020, 1025, 1030, 1045, 1518
JIS G3445 Standard	STKM11A STKM12A STKM12B STKM12C STKM13A STKM13B STKM13C STKM14A STKM14B
JIS G3473 Standard	STC370, STC440, STC510A, STC510, STC540
DIN 2391 Standard	St 35, St45, St52
EN 10297-1 Standard	E235, E275, E315, E355, E470
EN 10305-1 Standard	E215, E235, E355
EN 10305-4 Standard	E215, E235, E355
BS 6323-3 Standard	HFS 3, HFS 4, HFS 5, HFS 8
NF A49-311	TU 37-b, TU 52-b, TU 56-b, TU XC35

Certifications & Inspection

Certificates: according to EN 10204 3.1

Inspection Items: Tensile strength, Yield strength, Elongation, Flattening, Flaring, Chemical analysis
Eddy Current Test 100%, Size and surface checking 100%
Other test items can be arranged as per request

Product Features

Corrosion resistant
Accurate dimensions
Can sustain high pressure & temperature load
Rust proof finish
Smooth transition from flange thickness to pipe
Ensure excellent stress distribution

Standard Specifications

Dimension/Standard	EN 10305 E235, E215, E275 & E355

Steel Grades for Standard Precision Tubes

Standard	Steel Grades
EN 10305-1	E215, E235, E255, E355, E410, 26Mn5, 26Mo2, C35E, C45E, 25CrMo4, 42CrMo4; 25CrMo4
ASTM 519 SAE	1008, 1010, 1012, 1015, 1016, 1017, 1018, 1019, 1020, 1021, 1022, 1025, 1026, 1030, 1035, 1040, 1045, 1050, 1518, 4130, 4140, 4142, 8617
JIS G3445	STKM11A, STKM12A, STKM12B, STKM12C, STKM13A, STKM13B, STKM13C, STKM14A, STKM14B, STKM14C, STKM15A, STKM15C, STKM16A, STKM16C, STKM17A, STKM17C, STKM18A, STKM18B, STKM18C, STKM19A, STKM19C, STKM20A

Delivery Conditions

1. +C No heat treatment after the final cold drawing process
2. +LC After the final heat treatment there is a suitable drawing pass
3. +SR After the final cold drawing process there is a stress relieve heat treatment in a controlled atmosphere
4. +A After the final cold drawing process the tubes are annealed in a controlled atmosphere
5. +N After the final cold drawing operation the tubes are normalized in a controlled atmosphere
