Product Details
Place of Origin: Jiangsu, China
Brand Name: Hongbao
Certification: TS16949,DNV,PED,ISO,TUV,LR
Model Number: HBCDSST-1
Payment & Shipping Terms
Minimum Order Quantity: 1 ton
Price: Negotiable
Packaging Details: seaworthy plywooden case packing.
Delivery Time: within 50 days
Supply Ability: 30000MT per year
OD:: |
4-383mm |
Thickness:: |
0.5-18mm |
Processing:: |
Cold Drawn, Cold Rolled |
Package:: |
Seaworthy Packing. |
Shape:: |
Round |
OD:: |
4-383mm |
Thickness:: |
0.5-18mm |
Processing:: |
Cold Drawn, Cold Rolled |
Package:: |
Seaworthy Packing. |
Shape:: |
Round |

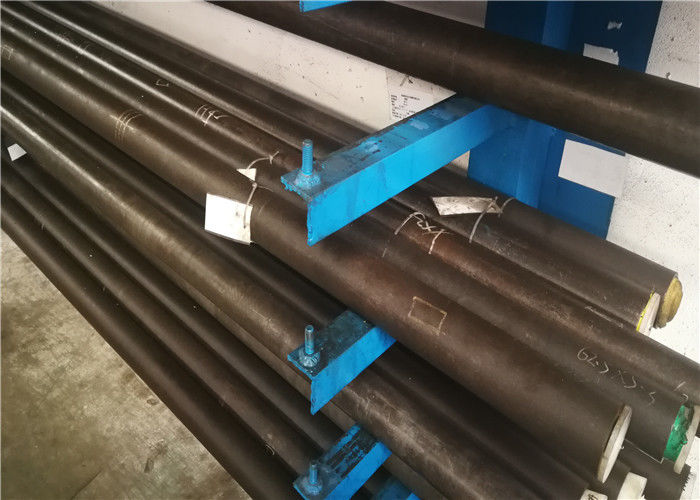

EN10305-1 E235 E355 +N Cold Drawn Steel Pipe 35mm 36mm Precision Cold Drawn Deamless Steel Tube
Description
| Mechanical properties at room temperature | |||||||||
| Delivery Condition | BK | BKW | GBK | NBK (N) | |||||
| Steel Grade | Rm | A % | Rm | A % | Rm | A % | Rm | ReH | A % |
| Mpa (Min) | (Min) | Mpa(Min) | (Min) | Mpa(Min) | (Min) | Mpa(Min) | Mpa(Min) | (Min) | |
| E215 | 430 | 8 | 380 | 12 | 280 | 30 | 290~430 | 215 | 30 |
| E235 | 480 | 6 | 420 | 10 | 315 | 25 | 340~480 | 235 | 25 |
| E255 | 580 | 5 | 520 | 8 | 390 | 21 | 440~570 | 255 | 21 |
| E355 | 640 | 4 | 580 | 7 | 450 | 22 | 490~630 | 355 | 22 |
Delivery condition of seamless cold drawn mechanical tubing
BK (+C) Cold finished/hard (cold finished as drawn).
BKW (+LC) Cold finished/soft
BKS (+SR) Cold finished/stress relieve annealed.
GBK (+A) Annealed.
NBK (+N) Normalized.
The tubes can be produced in the following delivery conditions:
BK (+C) Cold finished/hard (cold finished as drawn).
No heat treatment after the last cold forming process.
BKW (+LC) Cold finished/soft (lightly cold worked)
After the last heat treatment there is a light finishing pass (cold drawing).
BKS (+SR) Cold finished/stress relieve annealed.
After the final cold forming process the tubes are stress relieve annealed.
