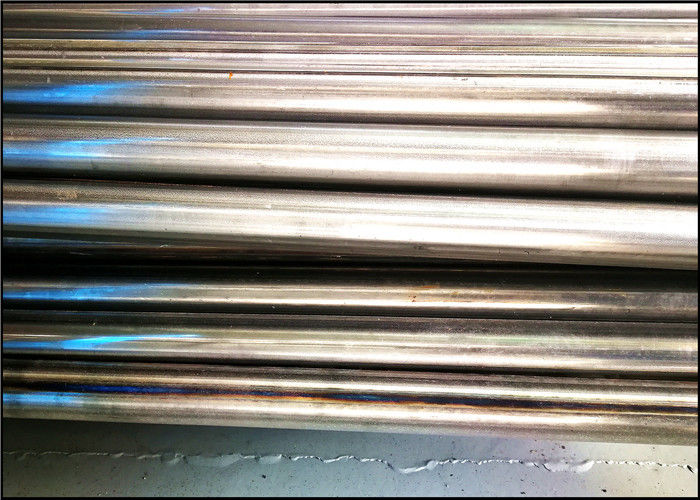

High Pressure Cold Drawn Seamless Steel Tube Alloy For Heat Exchangers
| Place of Origin | Jiangsu, China |
|---|---|
| Brand Name | Hongbao |
| Certification | TS16949,DNV,PED,ISO,TUV,LR |
| Model Number | HBCDSST-1 |
| Minimum Order Quantity | 1 ton |
| Price | Negotiable |
| Packaging Details | seaworthy plywooden case packing. |
| Delivery Time | within 50 days |
| Supply Ability | 30000MT per year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | Low Carbon Steel,Carbon Steel,Carbon Alloy Steel,E355,E235,ST37.2 | Certificate | TS16949,DNV,PED,ISO |
|---|---|---|---|
| OD | 4-383mm | Thickness | 0.5-18mm |
| Processing | Cold Drawn, Cold Rolled | Shape | Round |
| High Light | cold rolled steel tube,cold drawn seamless pipe |
||
Product Description
High Pressure Excellent Cold Drawn Seamless Alloy Steel ASTM A213 T11 Seamless Tube
Description
| 1 | Standard | Seamless Steel Pipe |
| 2 | Material |
1. 10#, 20#, Q235B, Q345B, 45# 2. A106 GR.A, B; A53 GR.A,B; A179, A192,A333 GR.6 |
| 3 | Type: | Seamless |
| 4 | Technique: | Hot rolled & Cold drawn |
| 5 | OD: | (1) Hot rolled: 32-600mm (ND: 1''-24'') |
| (2) Cold drawn: 6-200mm (ND: 1/8''-8'') | ||
| 6 | WT: | (1) Hot rolled: 2.5-75mm |
| (2) Cold drawn: min thickness 0.25mm | ||
| 7 | Length: | Fixed length ( expensive), DRL length ( cheap) |
| 8 | Surface treatment: | (1) Varnish / Oil (red & black) painting, |
| (2) Zinc coated (hot dipped galvanized) | ||
| (3) Anti-corrosion powder coating, 2PP/2PE, 3PP/3PE, FBE (Brand: 3M, DoPont). | ||
| 9 | Usage: | Above 450° high temperature |
| 10 | Application: | (1) Seamless steel line pipe transporte oil & gas in petroleum industry |
| (2) Convey high temperature fluid in the fertilizer machine | ||
| (3) Boiler pipe, including over-heat pipe, boiling water pipe, locomotive smoke pipe (big & small) | ||
| (4) Heat-exchange pipe for refinery |
Applications:
for Boilers,Superheaters,
Heat-Exchangers,
High-pressure Boilers,
Steam Boilers
Cold Condensers and High-Pressure Services,
High-Temperature Services for Boiler Constructions
Manufacture:Tubes are manufactured by seamless process and both hot finished and cold finished are applicable.
seamless boiler steel tube
heat exchanger boiler steel pipe
Heat treatment:Hot finished tubes need not be heat treated.Cold Finished tubes are heat treated after the final cold finishing pass at a temperature of 1200℉(650℃) or higher
