Product Details
Place of Origin: Jiangsu, China
Brand Name: Hongbao
Certification: TS16949,DNV,PED,ISO,TUV,LR
Model Number: HBCDSST-1
Payment & Shipping Terms
Minimum Order Quantity: 1 ton
Price: Negotiable
Packaging Details: seaworthy plywooden case packing.
Delivery Time: within 50 days
Supply Ability: 30000MT per year
Material:: |
Low Carbon Steel,Carbon Steel,Carbon Alloy Steel,E355,E235,ST37.2 |
Brand:: |
Hongbao |
Certificate:: |
TS16949,DNV,PED,ISO |
Origin:: |
Jiangsu,China |
OD:: |
4-383mm |
Thickness:: |
0.5-18mm |
Processing:: |
Seamless |
Package:: |
Seaworthy Packing. |
Material:: |
Low Carbon Steel,Carbon Steel,Carbon Alloy Steel,E355,E235,ST37.2 |
Brand:: |
Hongbao |
Certificate:: |
TS16949,DNV,PED,ISO |
Origin:: |
Jiangsu,China |
OD:: |
4-383mm |
Thickness:: |
0.5-18mm |
Processing:: |
Seamless |
Package:: |
Seaworthy Packing. |

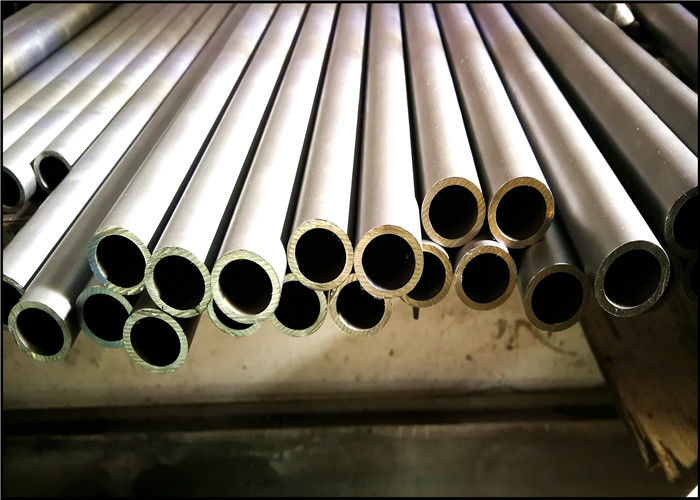

Cold Drawn Seamless Steel Tube EN10305-1 E235 E355Steel Tube for Precision Application
Description
| SIZE TOLERANCE | |||||
|
NAME |
Scope (mm) |
GB Series (mm) |
DIN series (mm) |
Enterprise internal control standards (mm) |
Special high-precision (mm) |
|
Out diameter
|
2-30 | ±0.10 | ±0.08 | ±0.05 | ±0.03 |
| 31-40 | ±0.15 | ±0.15 | ±0.05 | ±0.03 | |
| 41-50 | ±0.20 | ±0.20 | ±0.08 | ±0.03 | |
| 51-60 | ±0.25 | ±0.25 | ±0.08 | ±0.03 | |
| Wall thickness | 0.3-10 | ±10%; MIN±0.15 | ±10% | ±10%; MIN±0.05 | ±10%; MIN±0.03 |
DELIVERY CONDITIONS
The tubes can be produced in the following delivery conditions:
BK (+C) Cold finished/hard (cold finished as drawn).
No heat treatment after the last cold forming process.
BKW (+LC) Cold finished/soft (lightly cold worked)
After the last heat treatment there is a light finishing pass (cold drawing).
BKS (+SR) Cold finished/stress relieve annealed.
After the final cold forming process the tubes are stress relieve annealed.
GBK (+A) Annealed.
After the final cold forming process the tubes are annealed in a controlled atmosphere.
NBK (+N) Normalized. (Mainly focus on)
After the final cold forming process the tubes are annealed above the upper transformation point in a controlled atmosphere.
